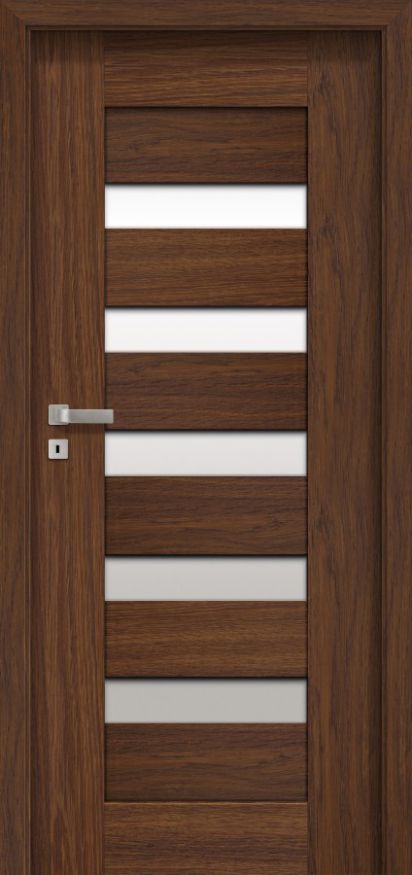

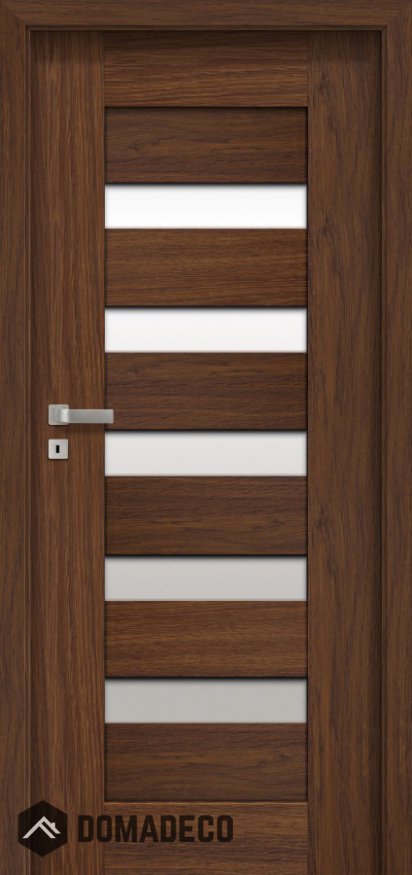

Plano SEM - interior wooden door

SKU
Plano SEM
In stock
$609.00
Overview

The door is made of a wooden rail and stile set topped with two HDF boards with the LAMISTONE CPL, SILKSTONE surface finish.

STANDARD EQUIPMENT

  • White matt glass, 0.15" thick
  • Magnetic mortise lock, key-operated, for a cylinder or a bathroom lock
  • Hidden hinges for non-rebated system (“70”-“80” – 2 units; “90”– 3 units)
  • The door closer is not applicable

Standard door leaf size [mm]:
618mm x 2077mm
718mm x 2077mm
818mm x 2077mm
918mm x 2077mm

Standard door leaf size [inch]:
24.3"x81.8"
28.3"x81.8"
32.2"x81.8"
36.1"x81.8"

Required Installation hole width [mm]:
618mm x 2077mm - 676mm min installation hole width / 786 mm - max installation hole width
718mm x 2077mm - 776mm min installation hole width / 886 mm - max installation hole width
818mm x 2077mm - 876mm min installation hole width / 986 mm - max installation hole width
918mm x 2077mm - 976mm min installation hole width / 1086 mm - max installation hole width

Required Installation hole width [inch]:
24.3"x81.8" - 26.6" min installation hole width / 30.9" - max installation hole width
28.3"x81.8" - 30.6" min installation hole width / 34.9" - max installation hole width
32.2"x81.8" - 34.5" min installation hole width / 38.8" - max installation hole width
36.1"x81.8" - 38.4" min installation hole width / 42.8" - max installation hole width

Required Installation hole height [mm]:
min installation hole height: 2053 mm
max installation hole height: 2112 mm

Required Installation hole height [inch]:
min installation hole height: 80.8"
max installation hole height: 83.1"

Required thickness of your wall [mm]
min 75 mm
max 300mm

Required thickness of your wall [inch]
min 2.95"
max 11.8"

COLOUR:

240 bleached elm V, 241 sandy elm V, 242 gray elm V, 256 bright nougat V, 293 royal anthracite, 294 royal ash tree, 295 royal merbau, 296 polish ash tree

OPENING WAY:

Right hand (RH), Left hand (LH),

ADDITIONAL EQUIPMENT (at an extra charge)

  • Door shortening available (up to 2.36" maximum):
    door shorter by 0.79" (the lower element of the door has a non-standard height)
    door shorter by 1.18" 2.36" (the upper and the lower element of the door has a non-standard height)
  • Door lower by 1.97"
-
+
