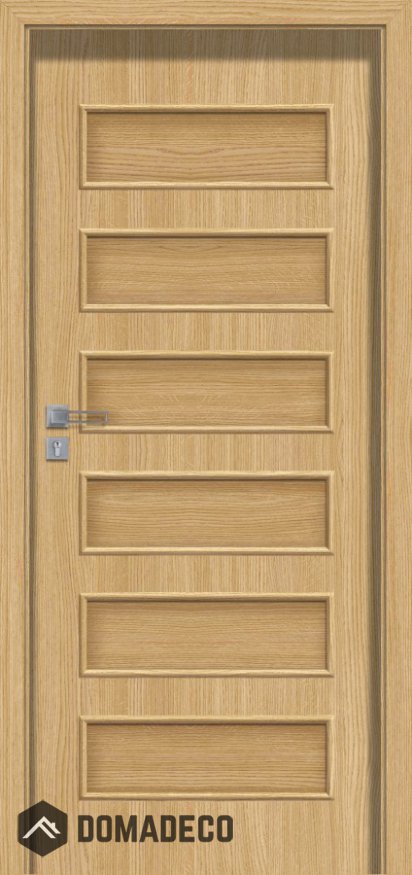

Plano INC - oak internal door

SKU
Plano INC
In stock
$490.00
Overview

The door is made of a high-quality MDF rail and stile set covered with the ECO TOP, SILKSTONE surface with vertical wood grain. Panels have horizontal wood grain. W03, W07, W08 patterns with horizontal wood grain and W05, W06 patterns with vertical.
The top and the bottom edge of the door leaf is secured with veneer.

STANDARD EQUIPMENT

  • White/brown matt glass, 0.157" thick
  • Single-point mortise lock, key-operated, for cylinder, or for bathroom lock
  • Hinges: B type
  • The door closer is not applicable

SIZE

SIZE inch
"23.62" - 26.61" min installation hole width / 30.94" - max installation hole width
"27.56" - 30.55" min installation hole width / 34.88" - max installation hole width
"31.50" - 34.49" min installation hole width / 38.82" - max installation hole width
"35.43" - 38.43" min installation hole width / 42.76" - max installation hole width

SIZE cm
"60" - 676mm min installation hole width / 786 mm - max installation hole width
"70" - 776mm min installation hole width / 886 mm - max installation hole width
"80" - 876mm min installation hole width / 986 mm - max installation hole width
"90" - 976mm min installation hole width / 1086 mm - max installation hole width

min installation hole height: 2053 mm / 80.83 inch
max installation hole height: 2112 mm / 83.15 inch

REQUIRED THICKNESS OF YOUR WALL

min 75 mm; max 300mm / min 2.95 inch; max 11.81 inch

COLOUR:

white, oak, maple, nut, british oak, salinas oak, scandinavian oak, patina oak, silver oak, nougat oak, honey oak, polish oak, royal anthracite, royal merbau, polish ash tree

OPENING WAY:

Right hand (RH), Left hand (LH),

ADDITIONAL EQUIPMENT (at an extra charge)

  • Non-standard door shortening (maximum available door shortening: up to 2.36"):
    door shorter to 1.18" (the lower element of the door has a nonstandard height)
    door shorter by 1.57"-2.36" (the upper and the lower element of the door has a non-standard height)
  • Door lower by 1,97"


-
+
