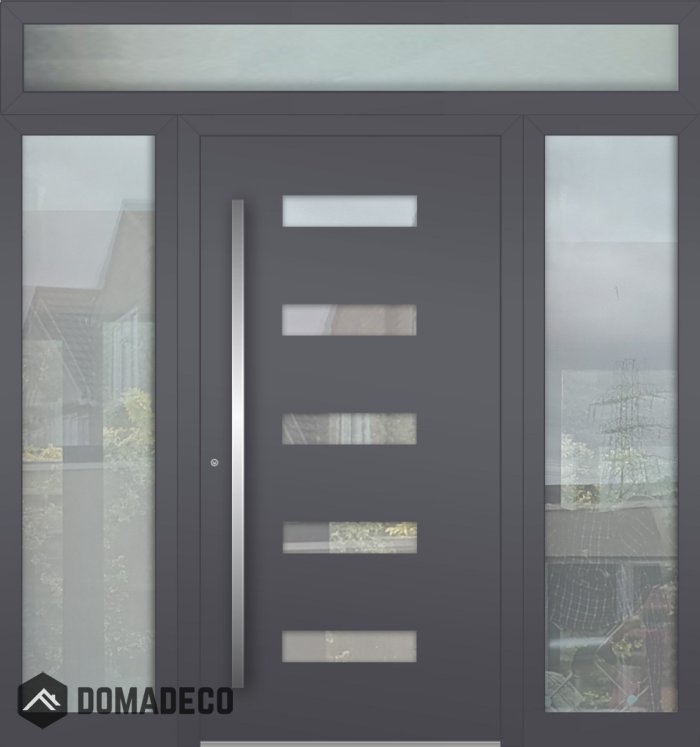

LIM door with left, right and top sidelight (view from the outside)
Doors are manufactured after the order has been placed through the website.
Production time for our doors:
door named LIM - production takes 9 weeks
door named STA - production takes 4 weeks
door named FARGO - production takes 9 weeks
Size door with frame:
Width from: 35.4" to 51"
Height from: 78.7" to 94.5"
Glass panel width with frame:
from 11.8" to 47.2"
Top glass panel height with frame:
from 11.8" to 23.6"
The overall width of the door is equal to the sum of the width of the door and the width of the glass side panel
The THERMO-ALU series is a product with an increased thermal insulation 6 R value. It is based on ALUPROF MB-70 PASSIVE systems with side panels.
The characteristic feature of this series is the use of applications made of stainless steel which are highly resistant to weather conditions.
The door width and height can be extended with the help of additional side panels and upper transoms. Those can be made in plain glass, with a decor-matt or simply frosted glass with a pattern matching the pattern of the door leaf.
The multi-point lock FUHR is used for locking. It has many locking and control configurations.
Hinges: the choice of wing or roller hinges (WALA) and concealed hinges (AXXENT).
Glazing in the door leaf: triple glazing glass of 2 R-Value
Thickness of polyurethane foam in the leaf: 2.7".
Additional options to increase the burglary resistance of the door:
- 6D-C class inserts,
- anti-burglary protection of hinges,
- the P4 class of the glass.
The door set includes:
- Aluminum door and the door frame;
- the GreenteQ door handle made of stainless steel;
- 3-part roller hinges in the same color as the door;
- Multipoint locking system 855GL : full locking in 7 points, - 2 hooks, - 4 bolts plus upper bolt
- Threshold strip 0.8" mm height;
- Standard lock insert with 5 keys.
The door is already mounted onto the frame (prehung door), which saves you all the work. The door is completely ready for installation.
