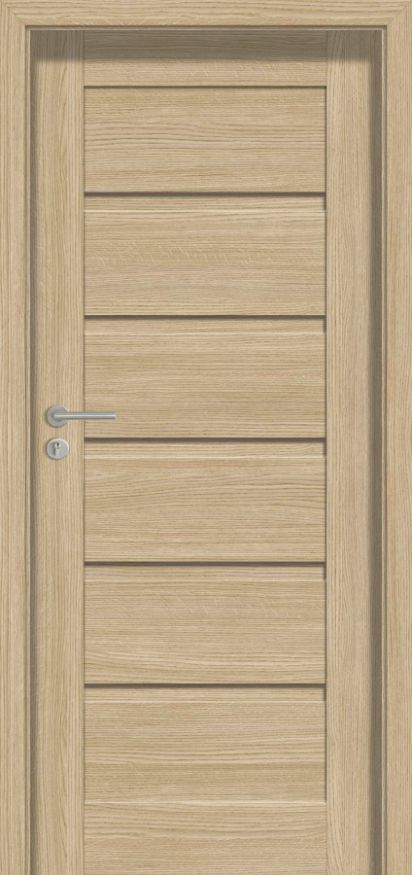

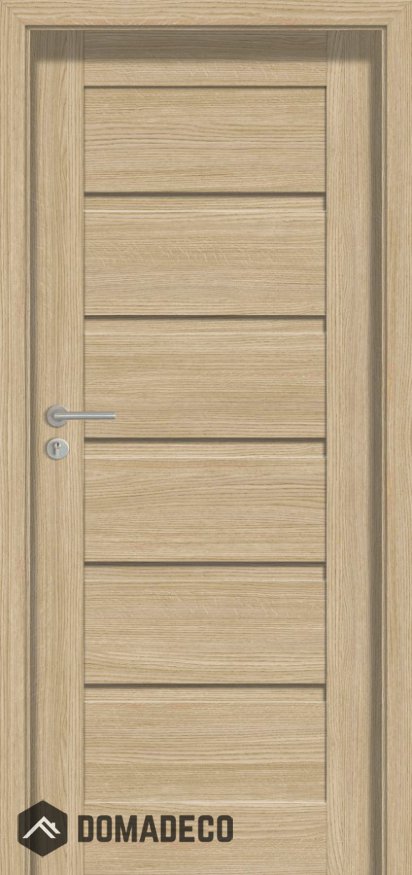

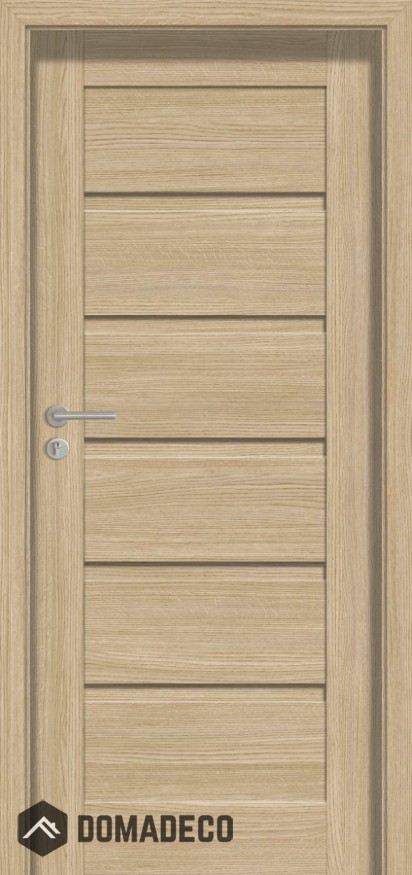

Plano ARC - solid interior door

SKU
Plano ARC
In stock
$555.00
Overview

The door is made of a high-quality MDF rail and stile set covered with the ECO TOP, SILKSTONE surface with vertical wood grain. Panels have horizontal wood grain. W03, W07, W08 patterns with horizontal wood grain and W05, W06 patterns with vertical.
The top and the bottom edge of the door leaf is secured with veneer.

STANDARD EQUIPMENT

  • White/brown matt glass, 0.15" thick
  • Single-point mortise lock, key-operated, for cylinder, or for bathroom lock
  • Hinges: B type
  • The door closer is not applicable

Standard door leaf size [mm]:
618mm x 2077mm
718mm x 2077mm
818mm x 2077mm
918mm x 2077mm

Standard door leaf size [inch]:
24.3"x81.8"
28.3"x81.8"
32.2"x81.8"
36.1"x81.8"

Required Installation hole width [mm]:
618mm x 2077mm - 676mm min installation hole width / 786 mm - max installation hole width
718mm x 2077mm - 776mm min installation hole width / 886 mm - max installation hole width
818mm x 2077mm - 876mm min installation hole width / 986 mm - max installation hole width
918mm x 2077mm - 976mm min installation hole width / 1086 mm - max installation hole width

Required Installation hole width [inch]:
24.3"x81.8" - 26.6" min installation hole width / 30.9" - max installation hole width
28.3"x81.8" - 30.6" min installation hole width / 34.9" - max installation hole width
32.2"x81.8" - 34.5" min installation hole width / 38.8" - max installation hole width
36.1"x81.8" - 38.4" min installation hole width / 42.8" - max installation hole width

Required Installation hole height [mm]:
min installation hole height: 2053 mm
max installation hole height: 2112 mm

Required Installation hole height [inch]:
min installation hole height: 80.8"
max installation hole height: 83.1"

Required thickness of your wall [mm]
min 75 mm
max 300mm

Required thickness of your wall [inch]
min 2.95"
max 11.8"

COLOUR:

white, oak, maple, nut, british oak, salinas oak, scandinavian oak, patina oak, silver oak, nougat oak, honey oak, polish oak, royal anthracite, royal merbau, polish ash tree

OPENING WAY:

Right hand (RH), Left hand (LH),

ADDITIONAL EQUIPMENT (at an extra charge)

  • Non-standard door shortening (maximum available door shortening: up to 2.36"):
    door shorter to 1.18" (the lower element of the door has a nonstandard height)
    door shorter by 1.57" 2.36" (the upper and the lower element of the door has a non-standard height)
  • Door lower by 1.97"


-
+
