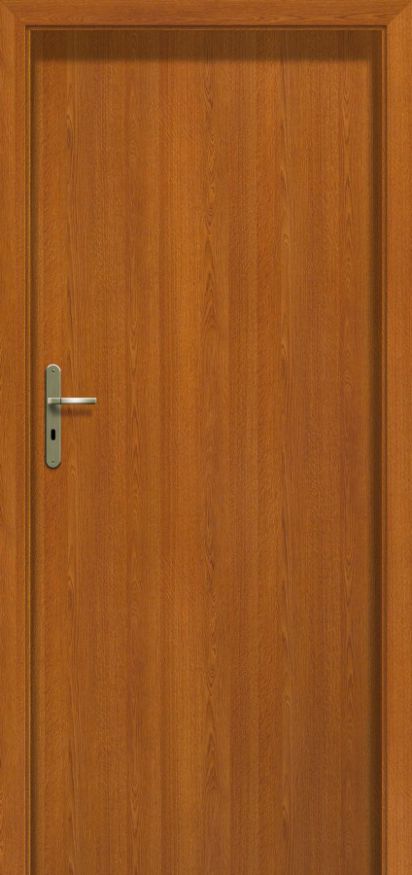

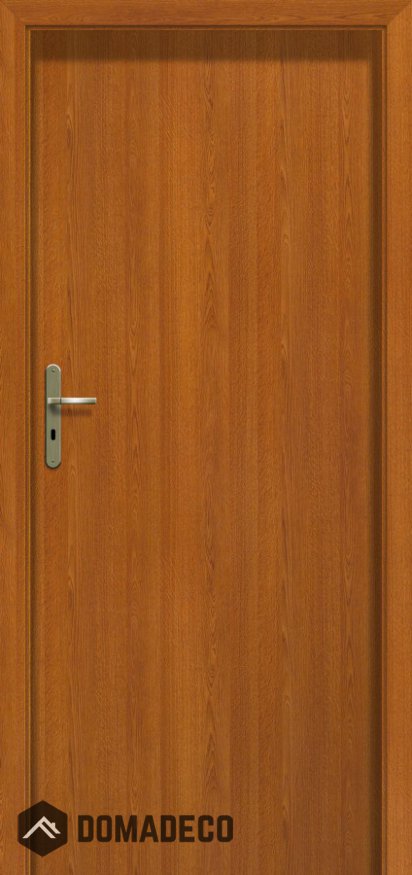

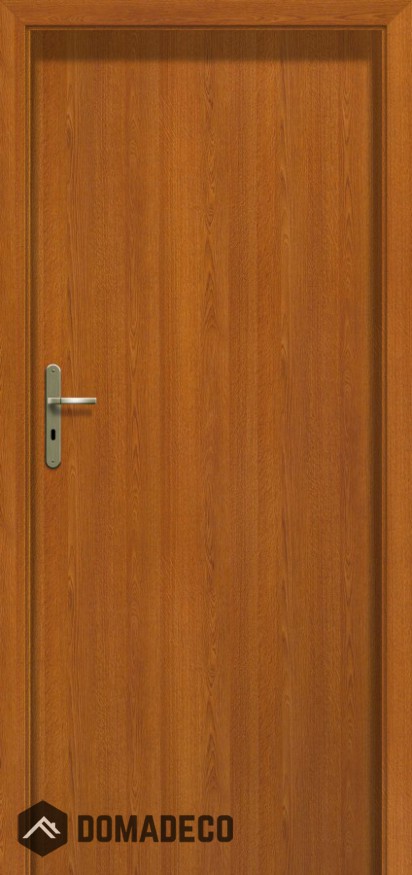

Plano DEC - wooden rail interior door

The door is made of a wooden rail and stail set topped with two flush HDF boards covered with the CPL laminate (0.2 mm, 0.5 mm or 0.7 mm thick).
The core consists of a honeycomb-like stabilising layer.

STANDARD EQUIPMENT

• White matt glass or clear colourless transparent glass, 0.2" thick
• Single-point mortise lock (rebated system) or magnetic mortise lock (non-rebated system), key-operated, for a cylinder or a bathroom lock
• Hinges: B type

Standard door slab size [inch]:
24.4" x 79.5"
28.3" x 79.5"
32.3" x 79.5"
36.2" x 79.5"

Required Installation hole width [inch]:
24.4" x 79.5" - 26.6" min installation hole width / 30.9" - max installation hole width
28.3" x 79.5" - 30.6" min installation hole width / 34.9" - max installation hole width
32.3" x 79.5" - 34.5" min installation hole width / 38.8" - max installation hole width
36.2" x 79.5" - 38.4" min installation hole width / 42.8" - max installation hole width

Required Installation hole height [inch]:
min installation hole height: 80.8"
max installation hole height: 83.1"

Required thickness of your wall [inch]
min 3"
max 11.8"

COLOUR:

221 beech CPL 0.2 mm, 222 grey CPL 0.2 mm, 223 cherry tree CPL 0.2 mm, 229 oak, 251 beech CPL 0.5 mm, 252 oak CPL 0.5 mm, 259 grey CPL 0.5 mm, 720 white CPL 0.7 mm, 721 anthracite CPL 0.7 mm, 765 wenge CPL 0.7 mm, 771 beech CPL 0.7 mm, 772 grey CPL 0.7 mm, 779 oak CPL 0.7 mm, 820 white CPL 0.2 mm, 821 anthracite CPL 0.2 mm, 863 premium walnut CPL 0.2 mm, 920 white CPL 0.5 mm, 921 anthracite CPL 0.5 mm, 965 wenge CPL 0.5 mm, 976 polish oak, 993 Royal anthracite, 994 royal ash tree, 995 royal merbau, 996 Polish ash tree, 997 royal nougat, cherry tree CPL 0.5 mm, cherry tree CPL 0.7 mm, Premium walnut CPL 0.5 mm, Premium walnut CPL 0.7 mm

ADDITIONAL EQUIPMENT (at an extra charge)

• Size “100” (glazing decoration as in “90”)
• Size “110” (glazing decoration as in “90”)
• Extra charge for CPL laminate 0.5 mm, 0.7 mm (“60”-“80”)
• Extra charge for CPL laminate 0.5 mm, 0.7 mm (“90”-“110”)
• Core made of a perforated chipboard
• Core made of a solid chipboard
• Rail and stile set (it allows shortening the door slab to 2" on a do-it-yourself basis)
• Rail and stile set (it allows shortening the door slab to 3.5" on a do-it-yourself basis)
• Reinforcement for door closer
• Protection of the bottom rail and stile set against excessive humidity (not applicable to door leaves with ventilation trim)
• Non-standard door shortening (maximum door shortening available: up to 3.9")
• Door lower by 2" or 3.9"
• Door higher by 2" or 3.9"
• Door higher by 5.9" or 7.9"
• Ventilation trim
• Tempered glass (02, 04, 05 versions)
