Plano EST LUX - contemporary inside door

SKU
Plano EST LUX
In stock
$650.00
Overview

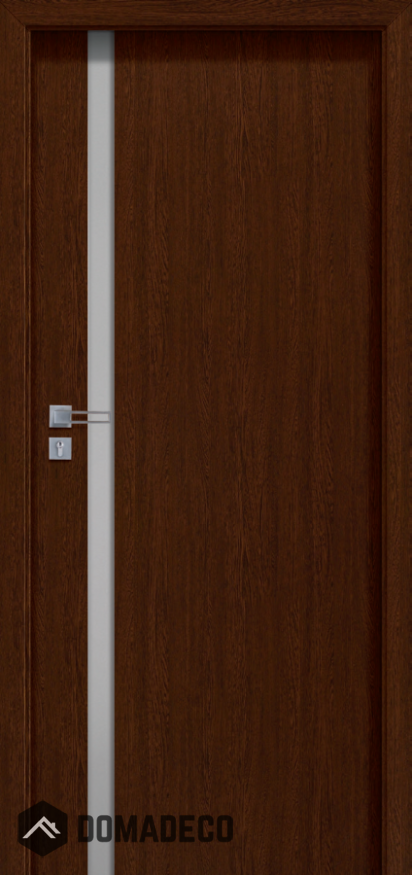

The door is constructed of a wooden rail and stile set topped with two HDF boards covered with natural veneer. The infill consists of a solid chipboard. A01, A02, A03 models are equipped with a white matt tempered glass, 0.15" thick. The upper edge of the door leaf has a rebate in rebated system.

STANDARD EQUIPMENT

  • white matt tempered glass, thickness: 0.15" thick (A01 – 2.12", A02 – 8.07", A03 – 10.87")
  • single-point (rebated system) or magnetic (non-rebated system) mortise lock, key-operated, for a cylinder or a bathroom lock
  • hinges: T type

SIZE inch
"23.62" - 26.61" min installation hole width / 30.94" - max installation hole width
"27.56" - 30.55" min installation hole width / 34.88" - max installation hole width
"31.50" - 34.49" min installation hole width / 38.82" - max installation hole width
"35.43" - 38.43" min installation hole width / 42.76" - max installation hole width

SIZE cm
"60" - 676mm min installation hole width / 786 mm - max installation hole width
"70" - 776mm min installation hole width / 886 mm - max installation hole width
"80" - 876mm min installation hole width / 986 mm - max installation hole width
"90" - 976mm min installation hole width / 1086 mm - max installation hole width

min installation hole height: 2053 mm / 80.83 inch
max installation hole height: 2112 mm / 83.15 inch

COLOUR:

311 light oak, 312 limba, 323 rustic oak, 334 european oak, 340 ebony, 351 marrone, 371 truffle oak, 372 coffe oak, 376 steel oak, 377 platinum oak, 380 natural ash, 381 moreno ash, 382 rubio ash, 383 negro ash, 404 dark walnut, 405 light walnut, 421 cappucino, 422 mokka, 424 teak

REQUIRED THICKNESS OF YOUR WALL

min 75 mm; max 300mm / min 2.95 inch; max 11.81 inch

ADDITIONAL EQUIPMENT (at an extra charge)

  • size „100”
  • A01, A02, A03 versions – door lower by 2.36"
  • A01, A02, A03 versions – door higher by 3.94"
  • A01, A02, A03 versions – door higher by 7.87"
  • ventilation trim (not available in A02 and A03 models)
-
+
