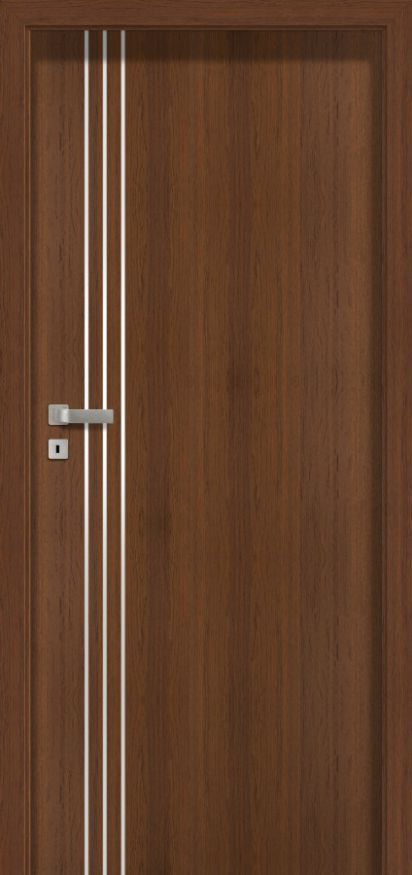

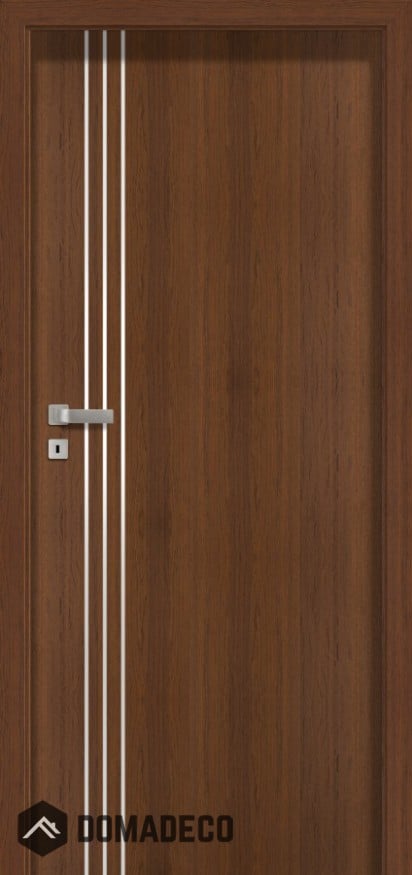

Plano ETI - solid interior door

SKU
Plano ETI
In stock
$710.00
Overview

The door is made of a wooden rail and stile set topped with two flush HDF boards covered with LAMISTONE CPL, SILKSTONE surface finish.
H version wood grain only on the leaf surface.
The core consists of a honeycomb-like structure in A01, A02, A03, B0 versions and soild chipboard in B1,B2, B3, B4 versions.

STANDARD EQUIPMENT

  • White matt tempered glass, 0.23" thick
  • Glazing width in A01 version - 2.13", A02 - 8.07", A03 - 10.87"
  • Single-point mortise lock (rebated system) or magnetic mortise lock (non-rebated system), key-operated, for a cylinder or a bathroom lock
  • Hinges: B type

SIZE inch
"23.62" - 26.61" min installation hole width / 30.94" - max installation hole width
"27.56" - 30.55" min installation hole width / 34.88" - max installation hole width
"31.50" - 34.49" min installation hole width / 38.82" - max installation hole width
"35.43" - 38.43" min installation hole width / 42.76" - max installation hole width

SIZE cm
"60" - 676mm min installation hole width / 786 mm - max installation hole width
"70" - 776mm min installation hole width / 886 mm - max installation hole width
"80" - 876mm min installation hole width / 986 mm - max installation hole width
"90" - 976mm min installation hole width / 1086 mm - max installation hole width

min installation hole height: 2053 mm / 80.83 inch
max installation hole height: 2112 mm / 83.15 inch

REQUIRED THICKNESS OF YOUR WALL

min 75 mm; max 300mm / min 2.95 inch; max 11.81 inch

COLOUR:

240 bleached elm V, 241 sandy elm V, 242 gray elm V, 254 Royal anthracite H, 255 Polish ash tree H, 256 bright nougat V, 257 bright nougat H, 258 white, 260 white oak, 263 premium walnut, 265 wenge, 276 polish oak, 288 royal maple, 289 grey, 292 royal chestnut, 293 royal anthracite, 294 royal ash tree, 295 royal merbau, 296 polish ash tree, 297 royal nougat

OPENING WAY:

Right hand (RH), Left hand (LH),

ADDITIONAL EQUIPMENT (at an extra charge)

  • Size “100”
  • Size “110” (applies to B1, B2, B3, B4 versions)
  • Non-standard door shortening (maximum door shortening available: up to 100 mm) (not applicable to A01, A02, A03 versions)
  • Door lower by 1.97" or 3.94" (not applicable to A01, A02, A03 versions)
  • Door higher by 1.97" or 3.94" (not applicable to A01, A02, A03 versions)
  • Door higher by 5.90" or 7.87 (not applicable to A01, A02, A03 versions)
  • A01, A02, A03 version door lower by 1.97"
  • A01, A02, A03 version door higher by 3.94"
  • A01, A02, A03 version door higher by 7.87"
  • Ventilation trim (not applicable to A02, A03 versions)


-
+
