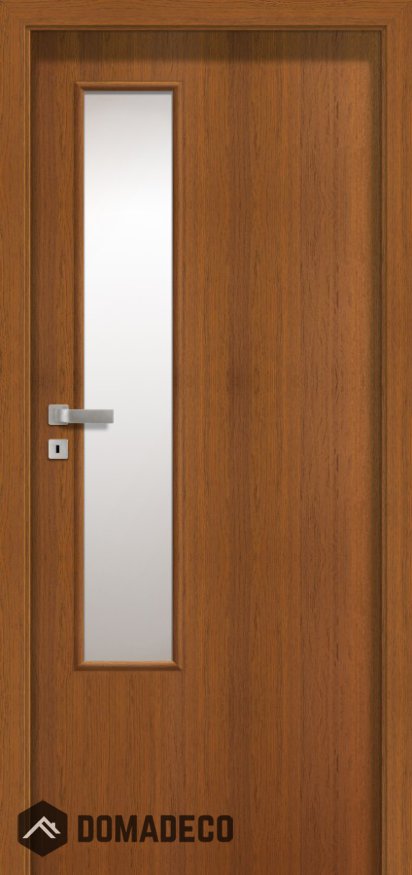

Plano IMP - inside door

The door is made of a high-quality MDF rail and stile set covered with the ECO TOP, SILKSTONE surface with vertical wood grain. Panels have horizontal wood grain. W03, W07, W08 patterns with horizontal wood grain and W05, W06 patterns with vertical.
The top and the bottom edge of the door slab is secured with veneer.

STANDARD EQUIPMENT

• White/brown matt glass, 0.2" thick
• Single-point mortise lock, key-operated, for cylinder, or for bathroom lock
• Hinges: B type
• The door closer is not applicable

Standard door slab size [inch]:
24.4" x 79.5"
28.3" x 79.5"
32.3" x 79.5"
36.2" x 79.5"

Required Installation hole width [inch]:
24.4" x 79.5" - 26.6" min installation hole width / 30.9" - max installation hole width
28.3" x 79.5" - 30.6" min installation hole width / 34.9" - max installation hole width
32.3" x 79.5" - 34.5" min installation hole width / 38.8" - max installation hole width
36.2" x 79.5" - 38.4" min installation hole width / 42.8" - max installation hole width

Required Installation hole height [inch]:
min installation hole height: 80.8"
max installation hole height: 83.1"

Required thickness of your wall [inch]
min 3"
max 11.8"

COLOUR:

white, oak, maple, nut, british oak, salinas oak, scandinavian oak, patina oak, silver oak, nougat oak, honey oak, polish oak, royal anthracite, royal merbau, polish ash tree

OPENING WAY:

Right hand (RH), Left hand (LH),

ADDITIONAL EQUIPMENT (at an extra charge)

• Non-standard door shortening (maximum available door shortening: up to 2.4"):
  door shorter to 1.2" (the lower element of the door has a nonstandard height)
  door shorter by 1.6"-2.4" (the upper and the lower element of the door has a non-standard height)
• Door lower by 2"
