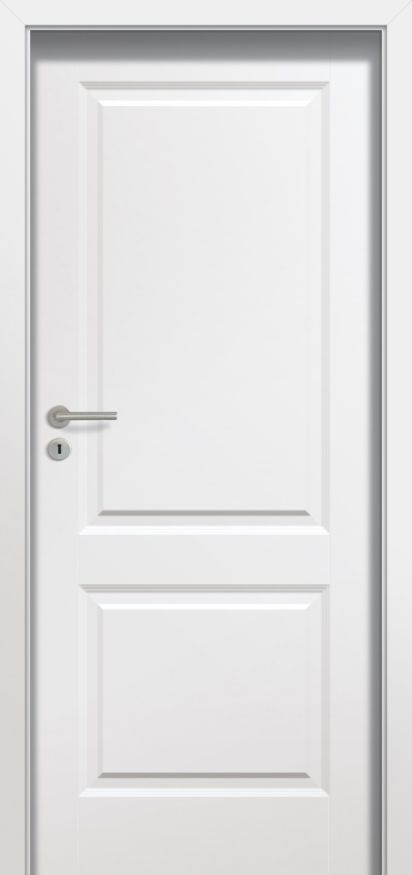

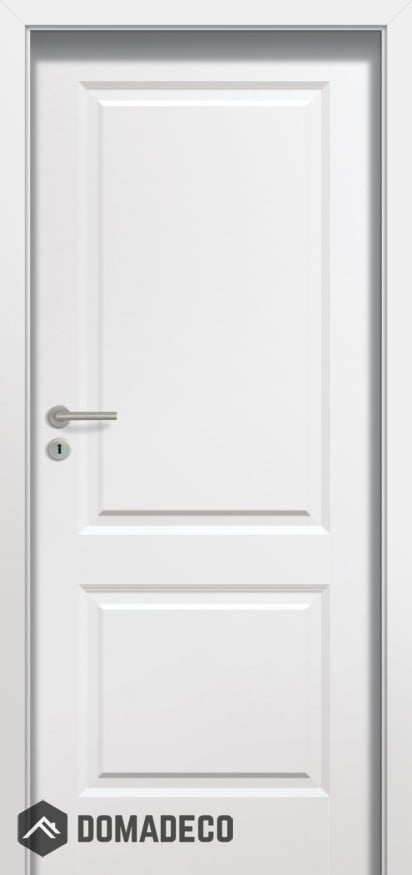

Plano MODERN - interior door

SKU
Plano MODERN
In stock
$724.00
Overview

The door is made of a wooden rail and stile set topped with two flush HDF boards covered with ecological acrylic paint (RAL and NCS colour palette).

STANDARD EQUIPMENT

  • White matt glass, 0.16" thick
  • Wooden muntin bars
  • Single-point mortise lock (rebated system) or magnetic mortise lock (non-rebated system), key-operated, for a cylinder or a bathroom lock
  • Hinges: K type

Standard door leaf size [mm]:
618mm x 2077mm
718mm x 2077mm
818mm x 2077mm
918mm x 2077mm

Standard door leaf size [inch]:
24.3"x81.8"
28.3"x81.8"
32.2"x81.8"
36.1"x81.8"

Required Installation hole width [mm]:
618mm x 2077mm - 676mm min installation hole width / 786 mm - max installation hole width
718mm x 2077mm - 776mm min installation hole width / 886 mm - max installation hole width
818mm x 2077mm - 876mm min installation hole width / 986 mm - max installation hole width
918mm x 2077mm - 976mm min installation hole width / 1086 mm - max installation hole width

Required Installation hole width [inch]:
24.3"x81.8" - 26.6" min installation hole width / 30.9" - max installation hole width
28.3"x81.8" - 30.6" min installation hole width / 34.9" - max installation hole width
32.2"x81.8" - 34.5" min installation hole width / 38.8" - max installation hole width
36.1"x81.8" - 38.4" min installation hole width / 42.8" - max installation hole width

Required Installation hole height [mm]:
min installation hole height: 2053 mm
max installation hole height: 2112 mm

Required Installation hole height [inch]:
min installation hole height: 80.8"
max installation hole height: 83.1"

Required thickness of your wall [mm]
min 75 mm
max 300mm

Required thickness of your wall [inch]
min 2.95"
max 11.8"

ADDITIONAL EQUIPMENT (at an extra charge)

  • Size “100” (glazing decoration as in “90”)
  • Non-standard door shortening (maximum door shortening available: up to 2.75")
  • Non-standard door shortening (maximum door shortening available: up to 2.36")
  • Door lower by 1.97" or 3.94"
  • Door higher by 1.97" or 3.94"


-
+
