Plano SIMPLE - white inside door

SKU
Plano SIMPLE
In stock
$770.00
Overview

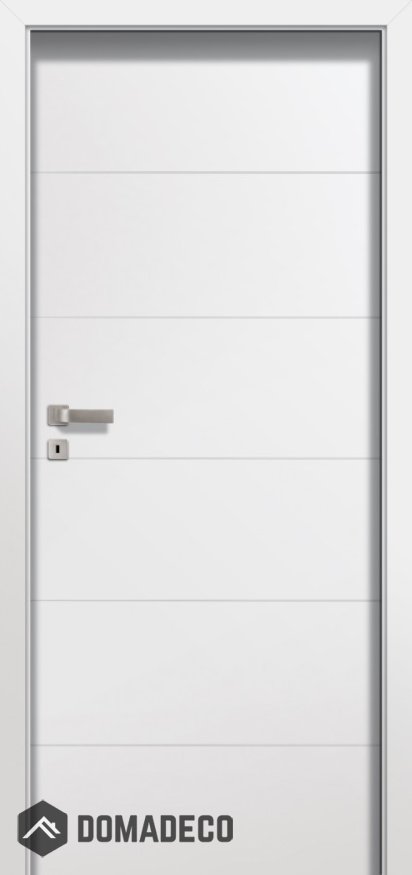

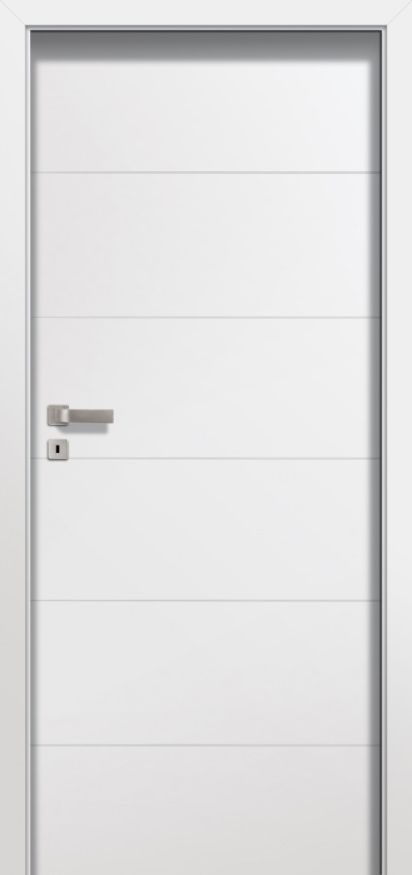

The door is made of a wooden rail and stile set topped with two flush HDF boards covered with ecological acrylic paint (RAL and NCS colour palette).
The core consists of a honeycomb-like stabilizing layer.
The door leaf is decorated with horizontal milling.

STANDARD EQUIPMENT

  • White matt glass, 4 mm thick
    white matt tempered glass, 4 mm thick (for 01 and 02 patterns)
  • Single-point mortise lock (rebated system) or magnetic mortise lock (non-rebated system), key-operated, for a cylinder or a bathroom lock
  • Hinges: B type

SIZE inch
"23.62" - 26.61" min installation hole width / 30.94" - max installation hole width
"27.56" - 30.55" min installation hole width / 34.88" - max installation hole width
"31.50" - 34.49" min installation hole width / 38.82" - max installation hole width
"35.43" - 38.43" min installation hole width / 42.76" - max installation hole width

SIZE cm
"60" - 676mm min installation hole width / 786 mm - max installation hole width
"70" - 776mm min installation hole width / 886 mm - max installation hole width
"80" - 876mm min installation hole width / 986 mm - max installation hole width
"90" - 976mm min installation hole width / 1086 mm - max installation hole width

min installation hole height: 2053 mm / 80.83 inch
max installation hole height: 2112 mm / 83.15 inch

REQUIRED THICKNESS OF YOUR WALL

min 75 mm; max 300mm / min 2.95 inch; max 11.81 inch

ADDITIONAL EQUIPMENT (at an extra charge)

  • Size “100” (glazing decoration as in “90”)
  • Size “110” (glazing decoration as in “90”)
  • Non-standard door shortening (maximum door shortening available: up to 3.93") (shortened from the top)
  • Door lower by 1.97" or 3.94"
  • Door higher by 1.97" or 3.94"
  • Door higher by 5.90" or 7.87"
-
+
