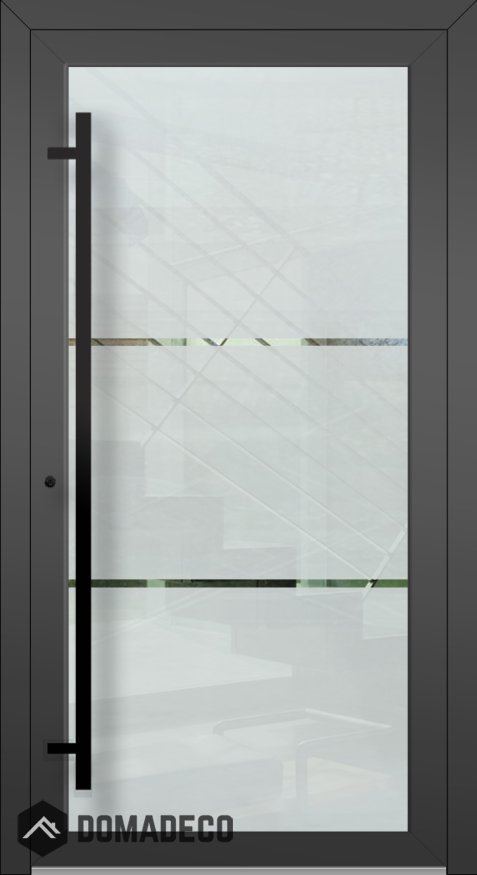

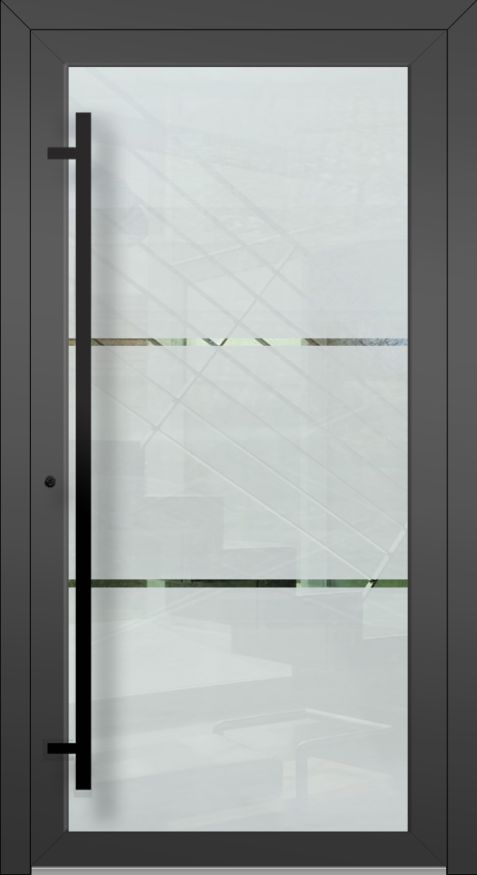

LIM Glass S - frosted main door with transparent motif

SKU
LIM Glass S
Rating:
100 % of 100
AVAILABLE
$5,045.00

The price includes TAX & shipping

Click here to select the configuration

Doors are manufactured after the order has been placed through the website.
Production time for our doors:
door named LIM (aluminum) - production takes 6 weeks
door named STA (stainless steel) - production takes 4 weeks
door named FARGO (stainless steel) - production takes 7 weeks

Size door with frame:
Width from: 35.4" to 51"
Height from: 78.7" to 96"

Available door colors:
anthracite, white, black, silver gray, red, blue, yellow, brown, green, walnut, wenge, golden oak, mahogany, custom from RAL palette

Our exterior doors with hinges on the side are hurricane impact rated. (for more details please contact us)

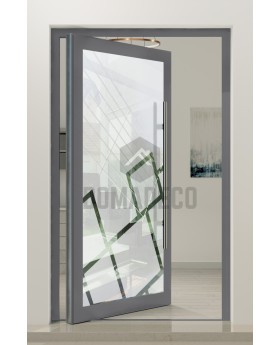

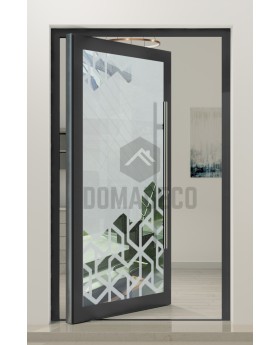

You can order this door model in a bigger size. View Pivot Gass S

Specification

The multi-point lock FUHR is used for locking. It has many locking and control configurations.
Glazing in the door leaf: triple glazing glass
Thickness of polyurethane foam in the leaf: 1.9"
Thermal insulation: R-Value 5.9

The door set includes:

- Aluminum door and the door frame;
- door handle made of stainless steel;
- 3-part roller hinges in the same color as the door;
- Multipoint locking system 855GL : full locking in 7 points, - 2 hooks, - 4 bolts plus upper bolt
- Threshold strip 0.6" height;
- anti-burglary class lock insert with 5 keys.

Full door information

The door is already mounted onto the frame (prehung door), which saves you all the work. The door is completely ready for installation.

The picture showing how to take the measurement. Click here
The installation space between the frame and the wall can be between 0.2" to 0.8" on each side.

Frequently Asked Questions: click here to check

-
+
$5,045.00

The price includes TAX & shipping

We found other products you might like!

Profile construction

Specification

  • frame depth: 70 mm / 2.76 inch ,
  • Thermal insulation: Ud = 1.0 W/(m2*K) / R-Value 5.6
  • The multi-point lock FUHR is used for locking
  • Thickness of polyurethane foam in the leaf: 48 mm / 1.9"

The door set includes:

  • Aluminum door and the door frame;
  • door handles made of stainless steel;
  • roller hinges in the same color as the door
  • Multipoint locking system 855GL : full locking in 7 points, - 2 hooks, - 4 bolts plus upper bolt
  • Threshold strip 15 mm / 0.59" height;
  • anti-burglary class lock insert with 5 keys.

Glazing

The glass in our doors are triple-pane windows. All panes are connected with spacer frames. Two of them are covered with Low-E coatings that provide natural light while helping to limit heat gain and thermal energy loss. It is also possible to choose P4 anti-burglary glass or safety glass VSG 33.1

standard glazing package 4th/16Ar/4/16Ar/4th

safety glass 33.1//4//4

P4 anti-burglary

Types of glazing

There is a wide range of glass options. In our offer one will find energy-saving, sound-absorbing, safety, anti-burglary and sunscreen windows. The most popular ones are milk glass, decorative or mirror glass as well as bronze reflex glass.

Colours

Colours can emphasise the shape of aluminium joinery and provide it with individual character and genuine appearance. All aluminium systems offered are available in two colour palettes – RAL and DECORAL.
RAL Basic colour palette.

Fiery red or maybe a delicate blue? The RAL K5 Classic colour palette will allow you to choose the colour of the door perfectly suited to your requirements!



RAL 1003

RAL 2004

RAL 3020

RAL 5002

RAL 6005

RAL 6021

RAL 7016

RAL 7039

RAL 7040

RAL 9016

RAL 9005

RAL 9007

DECORAL woodgrain finish palette

Aluminium doors can also have more traditional, woodlike finishes such as: beech, sweet cherry, golden oak, winchester, mahogany, walnut, dark oak, pine, cherry, wenge.



Golden Oak

Mahogany

Walnut

Wenge

Beech

Roller hinges WR WALA

WR WALA are minimalistic, modern looking, high quality roller hinges. They have been tested and are certified by the German IFT ROSENHEIM. Hinges are protected by patent law and can be adjusted: vertically: -5 to 5mm / -0.2" to 0.2", gap: -2.5 to 2.5 mm / -0.1" to 0.1" , seal pressure: -1.5 to 1.5 mm / -0.05" to 0.05" . When it comes to finish they are available in stainless steel or any colour from the RAL palette (hinges will be painted in the same colour as the door). Depending on the door height there are at least 3 hinges per door leaf/slab.

greenteQ handles

QreenteQ handles are made of anodized aluminum with high resistance to corrosion, weather conditions and scratches.
The INOX version is made of matt stainless steel.
Handle with fixed/rotary bearing and return spring mechanism adapted to the pin square 8 mm / 0.3".
TThe escutcheon/cover plate is 35 mm / 0.14" wide.

T-bar - long vertical handle or normal handle:

Stainless steel door handles are designed for one or two-sided use for external doors.
The innovative mounting system enables quick and easy installation of the door handle. Our offer includes many handrails:




Q45
T-bar at an angle of 45 degrees with a square section of 40 × 40 mm / 1.6"x1.6"
Available in lengths: 1200 / 47.2", 1500 / 59", 1800 mm / 70.9".

P45
T-bar at an angle of 45 degrees with a round cross-section ⌀ 40 mm / 1.6".
Available in lengths: 1200 / 47.2", 1500 / 59", 1800 mm / 70.9".

Z32
Black T-bar with an interesting curve that can also be used for all-glass doors
Available in length 499 mm / 19.6".

Multi-point lock Hook-bolts 855GL type-11

  • steel hooks and pins
  • Three-dimensional locking with integrated hooks and metal pins for optimal security.
  • Pressure adjustment.

Class A insert 6.D.C cylinder with keys

Durability: 100 000 cycles
Security rating: Class 6 the highest
Attack resistance: Class D the highest
Burglar resistance: Class C the highest

Certified, cylindrical, profiled 9-ratchet insert (two rows of latches).
Innovative anti-drill and anti-picking protection.
Inserts resistant to bumping. 5 keys included, key code card.

Write Your Own Review
You're reviewing:LIM Glass S - frosted main door with transparent motif
Your Rating

The LIM Glass S frosted aluminum main door with transparent motif is a stunning and innovative entrance solution that perfectly combines modern design, privacy, and artistic expression. This door is ideal for homeowners seeking a unique focal point that enhances the exterior appeal of their home while providing practical benefits such as privacy and natural light. Expertly crafted with high-quality materials and meticulous attention to detail, the LIM Glass S door offers an elegant balance of style and functionality that elevates any contemporary living space.

From the outside, the frosted glass panels of the LIM Glass S immediately catch the eye with their soft, opaque finish that ensures privacy without sacrificing natural light. The frosted effect diffuses sunlight, allowing gentle illumination to brighten the interior spaces while obscuring clear views from the outside. This makes the door an excellent choice for front entrances where both security and seclusion are priorities. The transparent motif, artistically integrated into the frosted glass, adds a distinctive decorative element that enhances the door’s visual interest and creates a refined, modern aesthetic tailored to your personal taste and architectural style.

Constructed with a robust aluminum frame, the LIM Glass S door is engineered for durability and long-lasting performance. Aluminum is renowned for its strength, corrosion resistance, and minimal maintenance requirements, making it an ideal material for exterior doors exposed to varying weather conditions. The combination of aluminum and glass creates a lightweight yet sturdy door that withstands daily use while maintaining its flawless appearance over time. The door’s precision engineering also ensures smooth operation and a secure fit within your home’s entrance.

The security features of the LIM Glass S door are thoughtfully designed to provide peace of mind. The frosted glass panels are made from toughened safety glass, which is highly resistant to impact and breakage, enhancing the door’s protective qualities. Additionally, the door can be fitted with advanced locking systems and reinforced hardware to further safeguard your home against unauthorized access. This combination of aesthetic appeal and security makes the LIM Glass S an excellent investment for homeowners who value both beauty and safety.

Energy efficiency is another important aspect of the LIM Glass S frosted aluminum door. Equipped with effective weather seals and thermal breaks within the aluminum frame, the door minimizes heat transfer and prevents drafts, contributing to a comfortable indoor environment year-round. By reducing energy loss, the door helps lower heating and cooling costs, aligning with sustainable living goals without compromising on style or functionality.

The LIM Glass S door offers extensive customization options to suit your individual preferences and home design. The transparent motif can be tailored in various patterns and styles, ranging from subtle geometric shapes to more intricate artistic designs, allowing you to express your personality while enhancing the architectural character of your home. Additionally, the aluminum frame is available in multiple finishes and colors, providing further flexibility to create a cohesive and harmonious entrance that complements your exterior décor.

In summary, the LIM Glass S frosted aluminum main door with transparent motif is a remarkable blend of contemporary design, privacy, security, and energy efficiency. It transforms the front entrance into a sophisticated statement piece that welcomes guests with elegance while delivering practical benefits that improve your living experience. Choose the LIM Glass S door to enjoy the perfect fusion of art and innovation, making your home both beautiful and secure for years to come.
