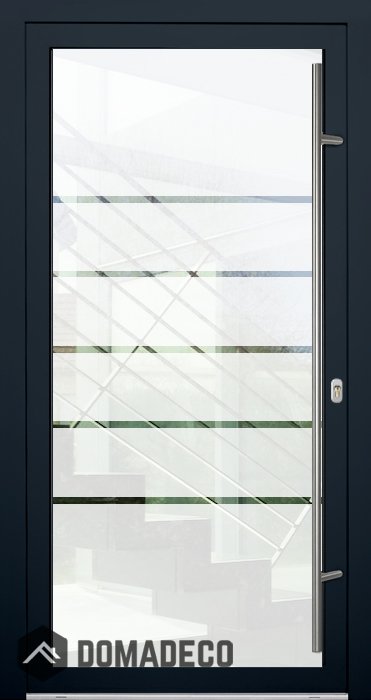

LIM Glass S5 - frosted main door with five transparent stripe

SKU
LIM Glass S5
Rating:
100 % of 100
1  Review Add Your Review
AVAILABLE
$5,470.00

The price includes TAX & shipping

Click here to select the configuration

Doors are manufactured after the order has been placed through the website.
Production time for our doors:
door named LIM (aluminum) - production takes 6 weeks
door named STA (stainless steel) - production takes 4 weeks
door named FARGO (stainless steel) - production takes 7 weeks

Size door with frame:
Width from: 35.4" to 51"
Height from: 78.7" to 96"

Available door colors:
 anthracite, white, black, silver gray, red, blue, yellow, brown, green, walnut, wenge, golden oak, mahogany, custom from RAL palette

Our exterior doors with hinges on the side are hurricane impact rated. (for more details please contact us)

You can order this door model in a bigger size. View Pivot Glass S5

Specification

The multi-point lock FUHR is used for locking. It has many locking and control configurations.
Glazing in the door leaf: triple glazing glass
Thickness of polyurethane foam in the leaf: 1.9"
Thermal insulation: R-Value 5.9

The door set includes:

- Aluminum door and the door frame;
- door handle made of stainless steel;
- 3-part roller hinges in the same color as the door;
- Multipoint locking system 855GL : full locking in 7 points, - 2 hooks, - 4 bolts plus upper bolt
- Threshold strip 0.6" height;
- anti-burglary class lock insert with 5 keys.

Full door information

The door is already mounted onto the frame (prehung door), which saves you all the work. The door is completely ready for installation.

The picture showing how to take the measurement. Click here
The installation space between the frame and the wall can be between 0.2" to 0.8" on each side.
Frequently Asked Questions: click here to check

-
+
$5,470.00

The price includes TAX & shipping

Wish List
Email
We found other products you might like!

Profile construction

Specification

  • frame depth: 70 mm / 2.76 inch ,
  • Thermal insulation: Ud = 1.0 W/(m2*K) / R-Value 5.6
  • The multi-point lock FUHR is used for locking
  • Thickness of polyurethane foam in the leaf: 48 mm / 1.9"

The door set includes:

  • Aluminum door and the door frame;
  • door handles made of stainless steel;
  • roller hinges in the same color as the door
  • Multipoint locking system 855GL : full locking in 7 points, - 2 hooks, - 4 bolts plus upper bolt
  • Threshold strip 15 mm / 0.59" height;
  • anti-burglary class lock insert with 5 keys.

Glazing

The glass in our doors are triple-pane windows. All panes are connected with spacer frames. Two of them are covered with Low-E coatings that provide natural light while helping to limit heat gain and thermal energy loss. It is also possible to choose P4 anti-burglary glass or safety glass VSG 33.1

standard glazing package 4th/16Ar/4/16Ar/4th

safety glass 33.1//4//4

P4 anti-burglary

Types of glazing

There is a wide range of glass options. In our offer one will find energy-saving, sound-absorbing, safety, anti-burglary and sunscreen windows. The most popular ones are milk glass, decorative or mirror glass as well as bronze reflex glass.

Colours

Colours can emphasise the shape of aluminium joinery and provide it with individual character and genuine appearance. All aluminium systems offered are available in two colour palettes – RAL and DECORAL.
RAL Basic colour palette.

Fiery red or maybe a delicate blue? The RAL K5 Classic colour palette will allow you to choose the colour of the door perfectly suited to your requirements!



RAL 1003

RAL 2004

RAL 3020

RAL 5002

RAL 6005

RAL 6021

RAL 7016

RAL 7039

RAL 7040

RAL 9016

RAL 9005

RAL 9007

DECORAL woodgrain finish palette

Aluminium doors can also have more traditional, woodlike finishes such as: beech, sweet cherry, golden oak, winchester, mahogany, walnut, dark oak, pine, cherry, wenge.



Golden Oak

Mahogany

Walnut

Wenge

Beech

Roller hinges WR WALA

WR WALA are minimalistic, modern looking, high quality roller hinges. They have been tested and are certified by the German IFT ROSENHEIM. Hinges are protected by patent law and can be adjusted: vertically: -5 to 5mm / -0.2" to 0.2", gap: -2.5 to 2.5 mm / -0.1" to 0.1" , seal pressure: -1.5 to 1.5 mm / -0.05" to 0.05" . When it comes to finish they are available in stainless steel or any colour from the RAL palette (hinges will be painted in the same colour as the door). Depending on the door height there are at least 3 hinges per door leaf/slab.

greenteQ handles

QreenteQ handles are made of anodized aluminum with high resistance to corrosion, weather conditions and scratches.
The INOX version is made of matt stainless steel.
Handle with fixed/rotary bearing and return spring mechanism adapted to the pin square 8 mm / 0.3".
TThe escutcheon/cover plate is 35 mm / 0.14" wide.

T-bar - long vertical handle or normal handle:

Stainless steel door handles are designed for one or two-sided use for external doors.
The innovative mounting system enables quick and easy installation of the door handle. Our offer includes many handrails:




Q45
T-bar at an angle of 45 degrees with a square section of 40 × 40 mm / 1.6"x1.6"
Available in lengths: 1200 / 47.2", 1500 / 59", 1800 mm / 70.9".

P45
T-bar at an angle of 45 degrees with a round cross-section ⌀ 40 mm / 1.6".
Available in lengths: 1200 / 47.2", 1500 / 59", 1800 mm / 70.9".

Z32
Black T-bar with an interesting curve that can also be used for all-glass doors
Available in length 499 mm / 19.6".

Multi-point lock Hook-bolts 855GL type-11

  • steel hooks and pins
  • Three-dimensional locking with integrated hooks and metal pins for optimal security.
  • Pressure adjustment.

Class A insert 6.D.C cylinder with keys

Durability: 100 000 cycles
Security rating: Class 6 the highest
Attack resistance: Class D the highest
Burglar resistance: Class C the highest

Certified, cylindrical, profiled 9-ratchet insert (two rows of latches).
Innovative anti-drill and anti-picking protection.
Inserts resistant to bumping. 5 keys included, key code card.

Write Your Own Review
You're reviewing:LIM Glass S5 - frosted main door with five transparent stripe
Your Rating

The LIM Glass S5 aluminum frosted main door with five transparent stripes is a sophisticated and contemporary entry solution that effortlessly combines elegance, durability, and practicality. Designed for those who appreciate modern architectural aesthetics, this door features a robust aluminum frame paired with frosted glass panels, accentuated by five sleek transparent stripes that create a dynamic and eye-catching visual effect. This design not only enhances the overall curb appeal of any property but also provides a perfect balance between privacy and natural light, making it an excellent choice for residential and commercial entrances alike.

At the heart of the LIM Glass S5 is its frosted glass surface, which offers subtle translucency that diffuses sunlight to flood the interior with soft, ambient light while maintaining privacy. This feature is particularly valuable for main doors where discretion is important but a bright, welcoming atmosphere is desired. The frosted finish also adds a smooth, contemporary texture to the door, complementing a wide variety of architectural styles from minimalist and modern to urban and industrial designs.

What truly sets the LIM Glass S5 apart are the five transparent horizontal stripes that run across the frosted glass. These clear bands introduce a striking contrast that breaks up the uniformity of the frosted surface, adding depth and visual interest. Functionally, the stripes allow controlled visibility, enabling occupants to glimpse outside without fully compromising privacy. This thoughtful design element fosters a connection between indoor and outdoor spaces, making the entrance feel more open and inviting while still ensuring security.

Constructed with a high-quality aluminum frame, the LIM Glass S5 guarantees strength, durability, and resistance to corrosion, warping, and fading. Aluminum’s lightweight yet sturdy nature ensures that the door withstands daily wear and environmental exposure without losing its sleek appearance or structural integrity. This makes the LIM Glass S5 a low-maintenance and long-lasting investment that retains its beauty and functionality over time.

In addition to its aesthetic and structural qualities, the LIM Glass S5 is equipped with premium locking systems and hardware, providing enhanced security and smooth operation. These features ensure that your property remains safe without compromising the door’s refined, modern look. The combination of reliable security mechanisms and stylish design makes this door an excellent choice for those who value both protection and sophistication.

Versatile and adaptable, the LIM Glass S5 integrates seamlessly with a wide range of exterior design themes and building types. Whether used as the main entrance to a contemporary home, office building, or commercial space, this door adds a distinctive touch of modern elegance. Its clean lines, frosted finish, and multiple transparent stripes make it suitable for both new construction projects and renovations, offering a timeless yet trendy solution that can evolve with changing design preferences.

In summary, the LIM Glass S5 aluminum frosted main door with five transparent stripes is a remarkable blend of beauty, functionality, and security. It skillfully balances the need for privacy with the desire for natural light, while its durable construction and stylish design enhance the overall character and value of any property. Choosing the LIM Glass S5 means investing in an entrance that is not only visually captivating but also secure, reliable, and built to last.
