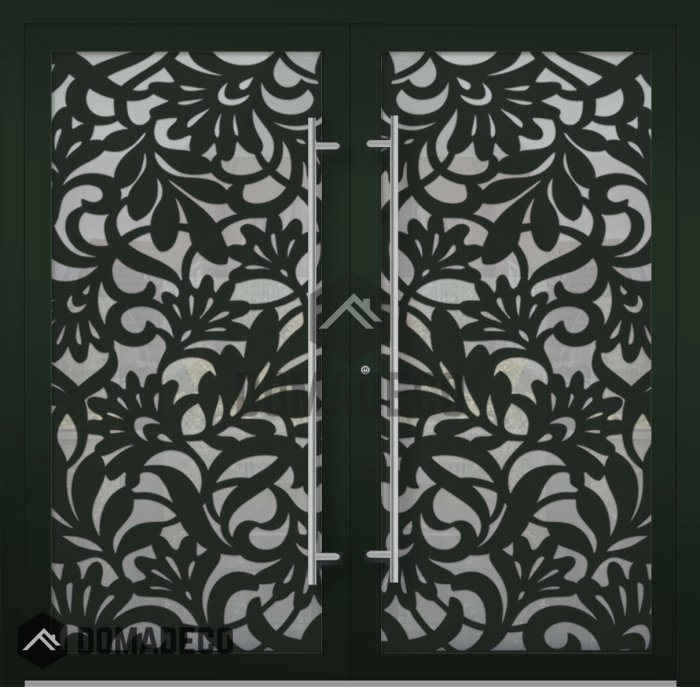

LIM G1 double - Double glass aluminum door with decorative panel

SKU
LIM G1 double
AVAILABLE
$13,440.00

The price includes TAX & shipping

Click here to select the configuration

Doors are manufactured after the order has been placed through the website.
Production time for our doors:
door named LIM (aluminum) - production takes 6 weeks
door named STA (stainless steel) - production takes 4 weeks
door named FARGO (stainless steel) - production takes 7 weeks

Size door with frame:
Width from: 63" to 78.7"
Height from: 78.7" to 96"

Available door colors:
anthracite, white, black, silver gray, red, blue, yellow, brown, green, walnut, wenge, golden oak, mahogany, custom from RAL palette

Our exterior doors with hinges on the side are hurricane impact rated. (for more details please contact us)

Specification

The multi-point lock FUHR is used for locking. It has many locking and control configurations.
Glazing in the door leaf: triple glazing glass
Thickness of polyurethane foam in the leaf: 1.9"
Thermal insulation: R-Value 5.9

The door set includes:

- Aluminum door and the door frame;
- door handle made of stainless steel;
- 3-part roller hinges in the same color as the door;
- Multipoint locking system 855GL : full locking in 7 points, - 2 hooks, - 4 bolts plus upper bolt
- Threshold strip 0.6" height;
- anti-burglary class lock insert with 5 keys.

Full door information

The door is already mounted onto the frame (prehung door), which saves you all the work. The door is completely ready for installation.

The picture showing how to take the measurement. Click here
The installation space between the frame and the wall can be between 0.2" to 0.8" on each side.

Frequently Asked Questions: click here to check

-
+
$13,440.00

The price includes TAX & shipping

We found other products you might like!

Profile construction

Specification

  • frame depth: 70 mm / 2.76 inch ,
  • Thermal insulation: Ud = 1.0 W/(m2*K) / R-Value 5.6
  • The multi-point lock FUHR is used for locking
  • Thickness of polyurethane foam in the leaf: 48 mm / 1.9"

The door set includes:

  • Aluminum door and the door frame;
  • door handles made of stainless steel;
  • roller hinges in the same color as the door
  • Multipoint locking system 855GL : full locking in 7 points, - 2 hooks, - 4 bolts plus upper bolt
  • Threshold strip 15 mm / 0.59" height;
  • anti-burglary class lock insert with 5 keys.

Glazing

The glass in our doors are triple-pane windows. All panes are connected with spacer frames. Two of them are covered with Low-E coatings that provide natural light while helping to limit heat gain and thermal energy loss. It is also possible to choose P4 anti-burglary glass or safety glass VSG 33.1

standard glazing package 4th/16Ar/4/16Ar/4th

safety glass 33.1//4//4

P4 anti-burglary

Types of glazing

There is a wide range of glass options. In our offer one will find energy-saving, sound-absorbing, safety, anti-burglary and sunscreen windows. The most popular ones are milk glass, decorative or mirror glass as well as bronze reflex glass.

Colours

Colours can emphasise the shape of aluminium joinery and provide it with individual character and genuine appearance. All aluminium systems offered are available in two colour palettes – RAL and DECORAL.
RAL Basic colour palette.

Fiery red or maybe a delicate blue? The RAL K5 Classic colour palette will allow you to choose the colour of the door perfectly suited to your requirements!



RAL 1003

RAL 2004

RAL 3020

RAL 5002

RAL 6005

RAL 6021

RAL 7016

RAL 7039

RAL 7040

RAL 9016

RAL 9005

RAL 9007

DECORAL woodgrain finish palette

Aluminium doors can also have more traditional, woodlike finishes such as: beech, sweet cherry, golden oak, winchester, mahogany, walnut, dark oak, pine, cherry, wenge.



Golden Oak

Mahogany

Walnut

Wenge

Beech

Roller hinges WR WALA

WR WALA are minimalistic, modern looking, high quality roller hinges. They have been tested and are certified by the German IFT ROSENHEIM. Hinges are protected by patent law and can be adjusted: vertically: -5 to 5mm / -0.2" to 0.2", gap: -2.5 to 2.5 mm / -0.1" to 0.1" , seal pressure: -1.5 to 1.5 mm / -0.05" to 0.05" . When it comes to finish they are available in stainless steel or any colour from the RAL palette (hinges will be painted in the same colour as the door). Depending on the door height there are at least 3 hinges per door leaf/slab.

greenteQ handles

QreenteQ handles are made of anodized aluminum with high resistance to corrosion, weather conditions and scratches.
The INOX version is made of matt stainless steel.
Handle with fixed/rotary bearing and return spring mechanism adapted to the pin square 8 mm / 0.3".
TThe escutcheon/cover plate is 35 mm / 0.14" wide.

T-bar - long vertical handle or normal handle:

Stainless steel door handles are designed for one or two-sided use for external doors.
The innovative mounting system enables quick and easy installation of the door handle. Our offer includes many handrails:




Q45
T-bar at an angle of 45 degrees with a square section of 40 × 40 mm / 1.6"x1.6"
Available in lengths: 1200 / 47.2", 1500 / 59", 1800 mm / 70.9".

P45
T-bar at an angle of 45 degrees with a round cross-section ⌀ 40 mm / 1.6".
Available in lengths: 1200 / 47.2", 1500 / 59", 1800 mm / 70.9".

Z32
Black T-bar with an interesting curve that can also be used for all-glass doors
Available in length 499 mm / 19.6".

Multi-point lock Hook-bolts 855GL type-11

  • steel hooks and pins
  • Three-dimensional locking with integrated hooks and metal pins for optimal security.
  • Pressure adjustment.

Class A insert 6.D.C cylinder with keys

Durability: 100 000 cycles
Security rating: Class 6 the highest
Attack resistance: Class D the highest
Burglar resistance: Class C the highest

Certified, cylindrical, profiled 9-ratchet insert (two rows of latches).
Innovative anti-drill and anti-picking protection.
Inserts resistant to bumping. 5 keys included, key code card.

Write Your Own Review
You're reviewing:LIM G1 double - Double glass aluminum door with decorative panel
Your Rating

The LIM G1 Double is an exquisite double glass aluminium door designed to combine contemporary elegance with exceptional functionality, making it an ideal choice for both residential and commercial entrances that demand style, security, and durability. This door stands out as a sophisticated architectural element that not only enhances the visual appeal of any building but also delivers impressive performance in terms of insulation, safety, and ease of maintenance.

Crafted from premium-grade aluminium, the LIM G1 Double door benefits from the metal’s renowned strength, lightweight nature, and resistance to corrosion. This ensures that the door remains robust and structurally sound over many years, even when exposed to harsh weather conditions. The aluminium frame is engineered with advanced thermal break technology, which significantly reduces heat transfer between the interior and exterior environments. This feature enhances the door’s energy efficiency, helping to maintain comfortable indoor temperatures while reducing heating and cooling costs.

The centerpiece of the LIM G1 Double door is its striking double glass panels, which offer an abundance of natural light and create a seamless connection between indoor and outdoor spaces. These high-quality glass panels are crafted from tempered or laminated safety glass, providing enhanced security and durability. They are also available in various finishes, including clear, frosted, tinted, or decorative glass options, allowing for privacy customization without compromising on style. The double glazing contributes to superior thermal and acoustic insulation, reducing noise pollution and improving energy conservation within the building.

A unique and defining feature of the LIM G1 Double door is its decorative panel, which adds an artistic and personalized touch to the entrance. This panel can be customized with a variety of designs, textures, and finishes, ranging from sleek modern patterns to intricate motifs that complement the architectural style of the property. The decorative element transforms the door from a simple entryway into a statement piece that reflects the owner’s taste and enhances the building’s curb appeal.

Security is a paramount focus in the design of the LIM G1 Double aluminium door. It incorporates a multi-point locking mechanism that secures the door firmly at multiple points along the frame, providing robust protection against unauthorized access. Reinforced hinges and strong aluminium profiles further ensure the door’s resilience and long-term reliability. For added convenience and modern functionality, the door can be integrated with smart lock systems, offering keyless entry and remote monitoring capabilities.

Performance-wise, the LIM G1 Double door excels in weather resistance and ease of maintenance. The high-quality seals and gaskets ensure excellent airtightness, preventing drafts, moisture infiltration, and external noise. The aluminium surfaces are treated with durable coatings that resist fading, scratching, and wear, enabling the door to maintain its pristine appearance with minimal upkeep.

Installation of the LIM G1 Double door is performed by skilled professionals who ensure precise fitting and smooth operation. Its versatile design makes it suitable for a wide range of applications, whether as a grand main entrance or as part of a coordinated façade system that enhances the overall architectural integrity.

In summary, the LIM G1 Double double glass aluminium door with decorative panel is a premium entrance solution that masterfully combines modern aesthetics, superior security, advanced insulation, and customizable design elements. Selecting the LIM G1 Double door means investing in a stylish, durable, and energy-efficient entryway that elevates any property’s appearance while providing lasting comfort and protection for years to come.
