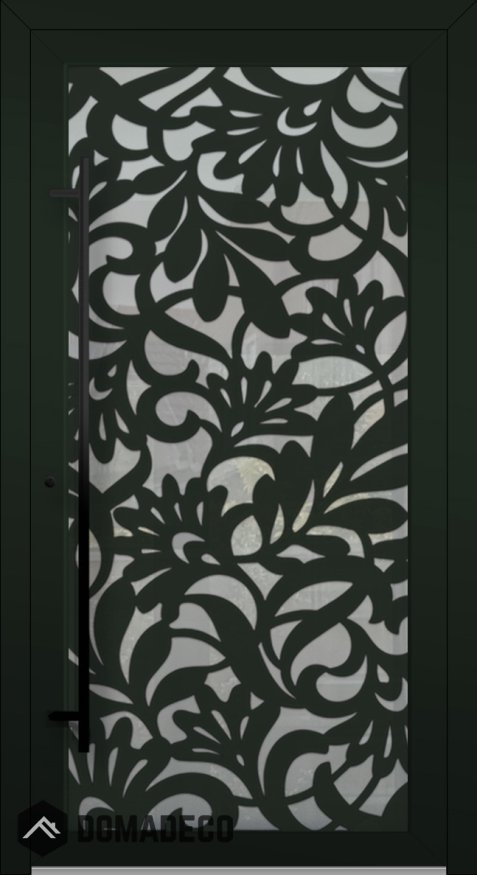

LIM G1 - Glass aluminum door with decorative panel

SKU
LIM-G1
Rating:
100 % of 100
AVAILABLE
$6,720.00

The price includes TAX & shipping

Click here to select the configuration

Doors are manufactured after the order has been placed through the website.
Production time for our doors:
door named LIM (aluminum) - production takes 6 weeks
door named STA (stainless steel) - production takes 4 weeks
door named FARGO (stainless steel) - production takes 7 weeks

Size door with frame:
Width from: 35.4" to 51"
Height from: 78.7" to 96"

Available door colors:
anthracite, white, black, silver gray, red, blue, yellow, brown, green, walnut, wenge, golden oak, mahogany, custom from RAL palette

Our exterior doors with hinges on the side are hurricane impact rated. (for more details please contact us)

You can order this door model in a bigger size. View Pivot G1

Specification

The multi-point lock FUHR is used for locking. It has many locking and control configurations.
Hinges: the choice of wing or roller hinges and concealed hinges.
Glazing in the door leaf: triple glazing glass
Thickness of polyurethane foam in the leaf: 1.9"
Thermal insulation: R-Value 5.9

The door set includes:

- Aluminum door and the door frame;
- door handle made of stainless steel;
- 3-part roller hinges in the same color as the door;
- Multipoint locking system 855GL : full locking in 7 points, - 2 hooks, - 4 bolts plus upper bolt
- Threshold strip 0.6" height;
- anti-burglary class lock insert with 5 keys.

Full door information

The door is already mounted onto the frame (prehung door), which saves you all the work. The door is completely ready for installation.

The picture showing how to take the measurement. Click here
The installation space between the frame and the wall can be between 0.2" to 0.8" on each side.

Frequently Asked Questions: click here to check

-
+
$6,720.00

The price includes TAX & shipping

Profile construction

Specification

  • frame depth: 70 mm / 2.76 inch ,
  • Thermal insulation: Ud = 1.0 W/(m2*K) / R-Value 5.6
  • The multi-point lock FUHR is used for locking
  • Thickness of polyurethane foam in the leaf: 48 mm / 1.9"

The door set includes:

  • Aluminum door and the door frame;
  • door handles made of stainless steel;
  • roller hinges in the same color as the door
  • Multipoint locking system 855GL : full locking in 7 points, - 2 hooks, - 4 bolts plus upper bolt
  • Threshold strip 15 mm / 0.59" height;
  • anti-burglary class lock insert with 5 keys.

Glazing

The glass in our doors are triple-pane windows. All panes are connected with spacer frames. Two of them are covered with Low-E coatings that provide natural light while helping to limit heat gain and thermal energy loss. It is also possible to choose P4 anti-burglary glass or safety glass VSG 33.1

standard glazing package 4th/16Ar/4/16Ar/4th

safety glass 33.1//4//4

P4 anti-burglary

Types of glazing

There is a wide range of glass options. In our offer one will find energy-saving, sound-absorbing, safety, anti-burglary and sunscreen windows. The most popular ones are milk glass, decorative or mirror glass as well as bronze reflex glass.

Colours

Colours can emphasise the shape of aluminium joinery and provide it with individual character and genuine appearance. All aluminium systems offered are available in two colour palettes – RAL and DECORAL.
RAL Basic colour palette.

Fiery red or maybe a delicate blue? The RAL K5 Classic colour palette will allow you to choose the colour of the door perfectly suited to your requirements!



RAL 1003

RAL 2004

RAL 3020

RAL 5002

RAL 6005

RAL 6021

RAL 7016

RAL 7039

RAL 7040

RAL 9016

RAL 9005

RAL 9007

DECORAL woodgrain finish palette

Aluminium doors can also have more traditional, woodlike finishes such as: beech, sweet cherry, golden oak, winchester, mahogany, walnut, dark oak, pine, cherry, wenge.



Golden Oak

Mahogany

Walnut

Wenge

Beech

Roller hinges WR WALA

WR WALA are minimalistic, modern looking, high quality roller hinges. They have been tested and are certified by the German IFT ROSENHEIM. Hinges are protected by patent law and can be adjusted: vertically: -5 to 5mm / -0.2" to 0.2", gap: -2.5 to 2.5 mm / -0.1" to 0.1" , seal pressure: -1.5 to 1.5 mm / -0.05" to 0.05" . When it comes to finish they are available in stainless steel or any colour from the RAL palette (hinges will be painted in the same colour as the door). Depending on the door height there are at least 3 hinges per door leaf/slab.

greenteQ handles

QreenteQ handles are made of anodized aluminum with high resistance to corrosion, weather conditions and scratches.
The INOX version is made of matt stainless steel.
Handle with fixed/rotary bearing and return spring mechanism adapted to the pin square 8 mm / 0.3".
TThe escutcheon/cover plate is 35 mm / 0.14" wide.

T-bar - long vertical handle or normal handle:

Stainless steel door handles are designed for one or two-sided use for external doors.
The innovative mounting system enables quick and easy installation of the door handle. Our offer includes many handrails:




Q45
T-bar at an angle of 45 degrees with a square section of 40 × 40 mm / 1.6"x1.6"
Available in lengths: 1200 / 47.2", 1500 / 59", 1800 mm / 70.9".

P45
T-bar at an angle of 45 degrees with a round cross-section ⌀ 40 mm / 1.6".
Available in lengths: 1200 / 47.2", 1500 / 59", 1800 mm / 70.9".

Z32
Black T-bar with an interesting curve that can also be used for all-glass doors
Available in length 499 mm / 19.6".

Multi-point lock Hook-bolts 855GL type-11

  • steel hooks and pins
  • Three-dimensional locking with integrated hooks and metal pins for optimal security.
  • Pressure adjustment.

Class A insert 6.D.C cylinder with keys

Durability: 100 000 cycles
Security rating: Class 6 the highest
Attack resistance: Class D the highest
Burglar resistance: Class C the highest

Certified, cylindrical, profiled 9-ratchet insert (two rows of latches).
Innovative anti-drill and anti-picking protection.
Inserts resistant to bumping. 5 keys included, key code card.

Write Your Own Review
You're reviewing:LIM G1 - Glass aluminum door with decorative panel
Your Rating

The LIM G1 Glass Aluminium Door with Decorative Panel is a sophisticated and contemporary entrance solution that seamlessly blends modern aesthetics with exceptional functionality. Designed for both residential and commercial applications, this door exemplifies the perfect harmony between transparency, durability, and artistic expression, making it an ideal choice for those looking to elevate their architectural spaces with a sleek yet distinctive statement.

The core structure of the LIM G1 door is crafted from high-quality aluminium, known for its outstanding strength-to-weight ratio, corrosion resistance, and longevity. This ensures that the door is not only lightweight and easy to operate but also remarkably durable, capable of withstanding daily wear and environmental exposure without compromising on performance or appearance. The aluminium frame is precision-engineered to provide a slim profile that maximizes glass surface area, allowing natural light to flood interior spaces while maintaining structural integrity and security.

The defining feature of the LIM G1 door is its expansive glass panel, which serves as a central design element. The glass is expertly selected and treated to offer enhanced clarity, safety, and energy efficiency. Options such as tempered or laminated glass provide increased resistance to impact and breakage, while low-emissivity (Low-E) coatings help regulate indoor temperatures by reflecting heat and reducing energy consumption. This thoughtful combination of materials ensures that the door not only looks stunning but also contributes to a comfortable, sustainable indoor environment.

Complementing the glass is the decorative panel, which adds a layer of artistic flair and personalization to the door’s overall design. Crafted from premium materials, the decorative panel can feature a variety of textures, patterns, or finishes—ranging from sleek metallic inlays to intricate geometric motifs or subtle etched designs—allowing architects and designers to tailor the door to the specific style and character of the building. This element introduces depth and visual interest, transforming the entrance into a captivating focal point that reflects the occupant’s taste and the architectural vision.

The LIM G1 door is engineered with user convenience and security in mind. High-quality locking systems and hardware options ensure robust protection, while smooth-operating hinges and handles provide effortless access. Additionally, the door can be customized with features such as integrated weather stripping, thermal breaks, and sound insulation to enhance comfort and energy efficiency, making it suitable for a wide range of climates and building requirements.

Furthermore, the LIM G1 Glass Aluminium Door is designed with sustainability at its core. The aluminium frame is fully recyclable, and the glass components are produced with environmentally conscious methods, aligning with modern green building standards and reducing the overall environmental footprint. This commitment to eco-friendly design ensures that the door not only serves as a beautiful architectural element but also supports broader goals of energy conservation and responsible resource use.

In summary, the LIM G1 Glass Aluminium Door with Decorative Panel is an impeccable blend of style, strength, and innovation. Its sleek aluminium framework paired with expansive glass and a customizable decorative panel offers a versatile and elegant entrance solution that enhances natural light, security, and aesthetic appeal. Perfect for contemporary homes, offices, and commercial buildings, this door transforms any entryway into a bright, inviting, and visually striking space that leaves a lasting impression.
