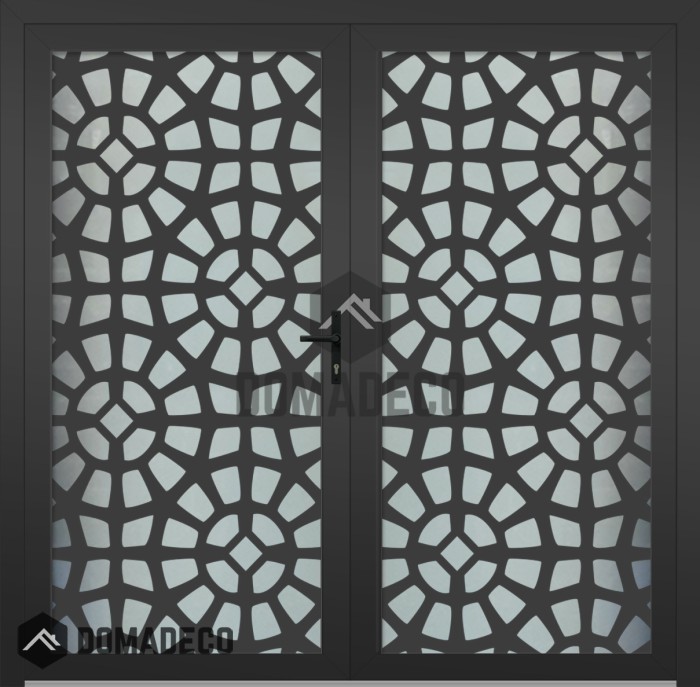

LIM G2 double - Double glass aluminium door with decorative panel

SKU
LIM G2 double
Be the first to review this product
AVAILABLE
$13,440.00

The price includes TAX & shipping

Click here to select the configuration

Doors are manufactured after the order has been placed through the website.
Production time for our doors:
door named LIM (aluminum) - production takes 6 weeks
door named STA (stainless steel) - production takes 4 weeks
door named FARGO (stainless steel) - production takes 7 weeks

Size door with frame:
Width from: 63" to 78.7"
Height from: 78.7" to 96"

Available door colors:
 anthracite, white, black, silver gray, red, blue, yellow, brown, green, walnut, wenge, golden oak, mahogany, custom from RAL palette

Our exterior doors with hinges on the side are hurricane impact rated. (for more details please contact us)

Specification

The multi-point lock FUHR is used for locking. It has many locking and control configurations.
Glazing in the door leaf: triple glazing glass
Thickness of polyurethane foam in the leaf: 1.9"
Thermal insulation: R-Value 5.9

The door set includes:

- Aluminum door and the door frame;
- door handle made of stainless steel;
- 3-part roller hinges in the same color as the door;
- Multipoint locking system 855GL : full locking in 7 points, - 2 hooks, - 4 bolts plus upper bolt
- Threshold strip 0.6" height;
- anti-burglary class lock insert with 5 keys.

Full door information

The door is already mounted onto the frame (prehung door), which saves you all the work. The door is completely ready for installation.

The picture showing how to take the measurement. Click here
The installation space between the frame and the wall can be between 0.2" to 0.8" on each side.
Frequently Asked Questions: click here to check

-
+
$13,440.00

The price includes TAX & shipping

Wish List
Email
We found other products you might like!

Profile construction

Specification

  • frame depth: 70 mm / 2.76 inch ,
  • Thermal insulation: Ud = 1.0 W/(m2*K) / R-Value 5.6
  • The multi-point lock FUHR is used for locking
  • Thickness of polyurethane foam in the leaf: 48 mm / 1.9"

The door set includes:

  • Aluminum door and the door frame;
  • door handles made of stainless steel;
  • roller hinges in the same color as the door
  • Multipoint locking system 855GL : full locking in 7 points, - 2 hooks, - 4 bolts plus upper bolt
  • Threshold strip 15 mm / 0.59" height;
  • anti-burglary class lock insert with 5 keys.

Glazing

The glass in our doors are triple-pane windows. All panes are connected with spacer frames. Two of them are covered with Low-E coatings that provide natural light while helping to limit heat gain and thermal energy loss. It is also possible to choose P4 anti-burglary glass or safety glass VSG 33.1

standard glazing package 4th/16Ar/4/16Ar/4th

safety glass 33.1//4//4

P4 anti-burglary

Types of glazing

There is a wide range of glass options. In our offer one will find energy-saving, sound-absorbing, safety, anti-burglary and sunscreen windows. The most popular ones are milk glass, decorative or mirror glass as well as bronze reflex glass.

Colours

Colours can emphasise the shape of aluminium joinery and provide it with individual character and genuine appearance. All aluminium systems offered are available in two colour palettes – RAL and DECORAL.
RAL Basic colour palette.

Fiery red or maybe a delicate blue? The RAL K5 Classic colour palette will allow you to choose the colour of the door perfectly suited to your requirements!



RAL 1003

RAL 2004

RAL 3020

RAL 5002

RAL 6005

RAL 6021

RAL 7016

RAL 7039

RAL 7040

RAL 9016

RAL 9005

RAL 9007

DECORAL woodgrain finish palette

Aluminium doors can also have more traditional, woodlike finishes such as: beech, sweet cherry, golden oak, winchester, mahogany, walnut, dark oak, pine, cherry, wenge.



Golden Oak

Mahogany

Walnut

Wenge

Beech

Roller hinges WR WALA

WR WALA are minimalistic, modern looking, high quality roller hinges. They have been tested and are certified by the German IFT ROSENHEIM. Hinges are protected by patent law and can be adjusted: vertically: -5 to 5mm / -0.2" to 0.2", gap: -2.5 to 2.5 mm / -0.1" to 0.1" , seal pressure: -1.5 to 1.5 mm / -0.05" to 0.05" . When it comes to finish they are available in stainless steel or any colour from the RAL palette (hinges will be painted in the same colour as the door). Depending on the door height there are at least 3 hinges per door leaf/slab.

greenteQ handles

QreenteQ handles are made of anodized aluminum with high resistance to corrosion, weather conditions and scratches.
The INOX version is made of matt stainless steel.
Handle with fixed/rotary bearing and return spring mechanism adapted to the pin square 8 mm / 0.3".
TThe escutcheon/cover plate is 35 mm / 0.14" wide.

T-bar - long vertical handle or normal handle:

Stainless steel door handles are designed for one or two-sided use for external doors.
The innovative mounting system enables quick and easy installation of the door handle. Our offer includes many handrails:




Q45
T-bar at an angle of 45 degrees with a square section of 40 × 40 mm / 1.6"x1.6"
Available in lengths: 1200 / 47.2", 1500 / 59", 1800 mm / 70.9".

P45
T-bar at an angle of 45 degrees with a round cross-section ⌀ 40 mm / 1.6".
Available in lengths: 1200 / 47.2", 1500 / 59", 1800 mm / 70.9".

Z32
Black T-bar with an interesting curve that can also be used for all-glass doors
Available in length 499 mm / 19.6".

Multi-point lock Hook-bolts 855GL type-11

  • steel hooks and pins
  • Three-dimensional locking with integrated hooks and metal pins for optimal security.
  • Pressure adjustment.

Class A insert 6.D.C cylinder with keys

Durability: 100 000 cycles
Security rating: Class 6 the highest
Attack resistance: Class D the highest
Burglar resistance: Class C the highest

Certified, cylindrical, profiled 9-ratchet insert (two rows of latches).
Innovative anti-drill and anti-picking protection.
Inserts resistant to bumping. 5 keys included, key code card.

Write Your Own Review
You're reviewing:LIM G2 double - Double glass aluminium door with decorative panel
Your Rating

The LIM G2 Double is a sophisticated double glass aluminium door that exemplifies modern elegance and superior engineering, designed to elevate the aesthetic and functional appeal of any residential or commercial entrance. Combining the strength and durability of premium aluminium with the brilliance of double-glazed glass, this door is enhanced by a stylish decorative panel that adds a distinctive character and visual interest, making it a perfect choice for those who desire a blend of contemporary design and reliable performance.

The frame of the LIM G2 Double door is constructed from high-grade aluminium, renowned for its lightweight properties, exceptional strength, and resistance to corrosion. This robust construction ensures long-lasting durability and minimal maintenance, even in challenging weather conditions. Advanced thermal break technology is integrated into the frame, significantly reducing heat transfer and enhancing the door’s insulation capabilities. This feature not only improves energy efficiency but also helps maintain comfortable indoor temperatures year-round, contributing to reduced energy bills and a greener environment.

The double glass panels are a central feature of the LIM G2 Double door, crafted from premium tempered or laminated safety glass to provide outstanding security and resilience. These double-glazed panels maximize natural light penetration, creating bright and inviting interiors while offering excellent thermal and acoustic insulation. By minimizing heat loss and reducing external noise, the door helps create a peaceful and energy-efficient living or working space. Customers can choose from a variety of glass types—including clear, frosted, tinted, or decorative options—to perfectly match their privacy needs and architectural style.

The decorative panel integrated into the LIM G2 Double door serves as a striking design element that enhances the door’s overall appearance. This panel can be customized with a wide range of patterns, textures, and finishes, allowing homeowners and designers to infuse personality and artistic flair into the entrance. Whether featuring sleek modern lines, intricate geometric shapes, or elegant classic motifs, the decorative panel transforms the door into a captivating focal point that complements and elevates the building’s exterior design.

Security remains a top priority with the LIM G2 Double door. It features a sophisticated multi-point locking system that secures the door at various points around the frame, providing robust protection against forced entry. Reinforced hinges and sturdy aluminium profiles add to the door’s strength and durability, ensuring reliable operation and enhanced safety. For those seeking advanced convenience, the door is compatible with the latest smart locking technology, enabling keyless entry, remote access control, and integration with home automation systems for seamless security management.

The LIM G2 Double door is expertly engineered to withstand the elements with superior weatherproofing features. High-quality seals and gaskets ensure airtightness, preventing drafts, water leakage, and external noise intrusion. The aluminium surfaces are coated with durable finishes that resist fading, chipping, and corrosion, preserving the door’s sleek and polished look with minimal upkeep.

Installation of the LIM G2 Double door is performed by experienced professionals who ensure precise fitting and smooth operation, maximizing the door’s lifespan and performance. Its versatile design allows it to be used in a variety of applications, from grand main entrances to stylish patio doors, effortlessly enhancing both the functionality and curb appeal of any property.

In summary, the LIM G2 Double double glass aluminium door with decorative panel is a premium entrance solution that offers a perfect balance of contemporary style, robust security, energy efficiency, and personalized design. It is an excellent investment for property owners who want a durable, elegant, and highly functional door that delivers lasting comfort, safety, and visual sophistication.
