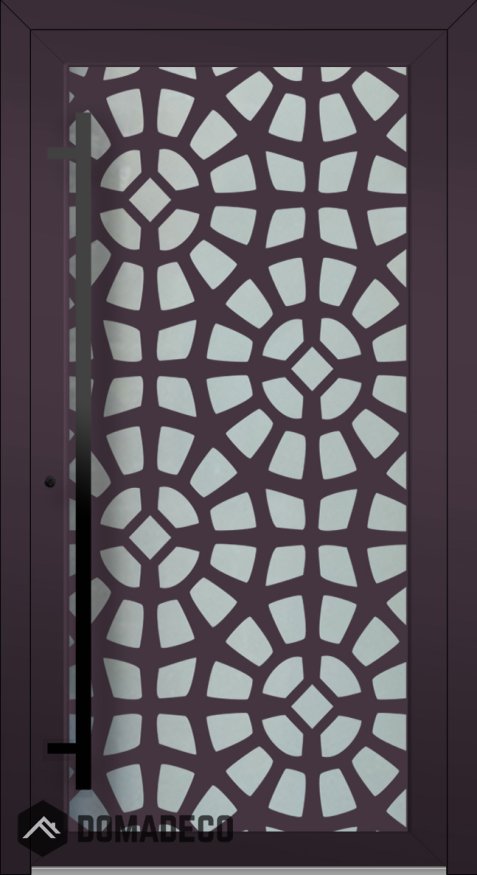

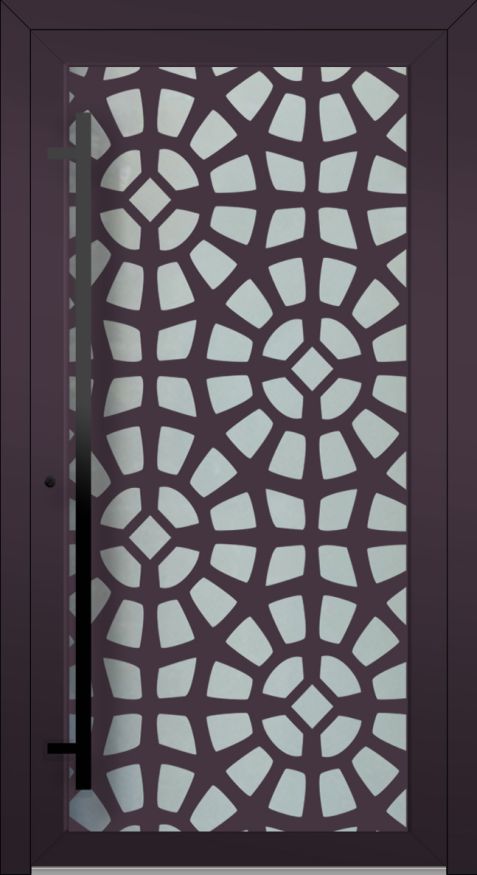

LIM G2 - Glass front aluminum door with decorative panel

SKU
LIM-G2
Rating:
100 % of 100
AVAILABLE
$6,720.00

The price includes TAX & shipping

Click here to select the configuration

Doors are manufactured after the order has been placed through the website.
Production time for our doors:
door named LIM (aluminum) - production takes 6 weeks
door named STA (stainless steel) - production takes 4 weeks
door named FARGO (stainless steel) - production takes 7 weeks

Size door with frame:
Width from: 35.4" to 51"
Height from: 78.7" to 96"

Available door colors:
anthracite, white, black, silver gray, red, blue, yellow, brown, green, walnut, wenge, golden oak, mahogany, custom from RAL palette

Our exterior doors with hinges on the side are hurricane impact rated. (for more details please contact us)

You can order this door model in a bigger size. View Pivot G2

Specification

The multi-point lock FUHR is used for locking. It has many locking and control configurations.
Hinges: the choice of wing or roller hinges and concealed hinges.
Glazing in the door leaf: triple glazing glass
Thickness of polyurethane foam in the leaf: 1.9"
Thermal insulation: R-Value 5.9

The door set includes:

- Aluminum door and the door frame;
- door handle made of stainless steel;
- 3-part roller hinges in the same color as the door;
- Multipoint locking system 855GL : full locking in 7 points, - 2 hooks, - 4 bolts plus upper bolt
- Threshold strip 0.6" height;
- anti-burglary class lock insert with 5 keys.

Full door information

The door is already mounted onto the frame (prehung door), which saves you all the work. The door is completely ready for installation.

The picture showing how to take the measurement. Click here
The installation space between the frame and the wall can be between 0.2" to 0.8" on each side.

Frequently Asked Questions: click here to check

-
+
$6,720.00

The price includes TAX & shipping

Profile construction

Specification

  • frame depth: 70 mm / 2.76 inch ,
  • Thermal insulation: Ud = 1.0 W/(m2*K) / R-Value 5.6
  • The multi-point lock FUHR is used for locking
  • Thickness of polyurethane foam in the leaf: 48 mm / 1.9"

The door set includes:

  • Aluminum door and the door frame;
  • door handles made of stainless steel;
  • roller hinges in the same color as the door
  • Multipoint locking system 855GL : full locking in 7 points, - 2 hooks, - 4 bolts plus upper bolt
  • Threshold strip 15 mm / 0.59" height;
  • anti-burglary class lock insert with 5 keys.

Glazing

The glass in our doors are triple-pane windows. All panes are connected with spacer frames. Two of them are covered with Low-E coatings that provide natural light while helping to limit heat gain and thermal energy loss. It is also possible to choose P4 anti-burglary glass or safety glass VSG 33.1

standard glazing package 4th/16Ar/4/16Ar/4th

safety glass 33.1//4//4

P4 anti-burglary

Types of glazing

There is a wide range of glass options. In our offer one will find energy-saving, sound-absorbing, safety, anti-burglary and sunscreen windows. The most popular ones are milk glass, decorative or mirror glass as well as bronze reflex glass.

Colours

Colours can emphasise the shape of aluminium joinery and provide it with individual character and genuine appearance. All aluminium systems offered are available in two colour palettes – RAL and DECORAL.
RAL Basic colour palette.

Fiery red or maybe a delicate blue? The RAL K5 Classic colour palette will allow you to choose the colour of the door perfectly suited to your requirements!



RAL 1003

RAL 2004

RAL 3020

RAL 5002

RAL 6005

RAL 6021

RAL 7016

RAL 7039

RAL 7040

RAL 9016

RAL 9005

RAL 9007

DECORAL woodgrain finish palette

Aluminium doors can also have more traditional, woodlike finishes such as: beech, sweet cherry, golden oak, winchester, mahogany, walnut, dark oak, pine, cherry, wenge.



Golden Oak

Mahogany

Walnut

Wenge

Beech

Roller hinges WR WALA

WR WALA are minimalistic, modern looking, high quality roller hinges. They have been tested and are certified by the German IFT ROSENHEIM. Hinges are protected by patent law and can be adjusted: vertically: -5 to 5mm / -0.2" to 0.2", gap: -2.5 to 2.5 mm / -0.1" to 0.1" , seal pressure: -1.5 to 1.5 mm / -0.05" to 0.05" . When it comes to finish they are available in stainless steel or any colour from the RAL palette (hinges will be painted in the same colour as the door). Depending on the door height there are at least 3 hinges per door leaf/slab.

greenteQ handles

QreenteQ handles are made of anodized aluminum with high resistance to corrosion, weather conditions and scratches.
The INOX version is made of matt stainless steel.
Handle with fixed/rotary bearing and return spring mechanism adapted to the pin square 8 mm / 0.3".
TThe escutcheon/cover plate is 35 mm / 0.14" wide.

T-bar - long vertical handle or normal handle:

Stainless steel door handles are designed for one or two-sided use for external doors.
The innovative mounting system enables quick and easy installation of the door handle. Our offer includes many handrails:




Q45
T-bar at an angle of 45 degrees with a square section of 40 × 40 mm / 1.6"x1.6"
Available in lengths: 1200 / 47.2", 1500 / 59", 1800 mm / 70.9".

P45
T-bar at an angle of 45 degrees with a round cross-section ⌀ 40 mm / 1.6".
Available in lengths: 1200 / 47.2", 1500 / 59", 1800 mm / 70.9".

Z32
Black T-bar with an interesting curve that can also be used for all-glass doors
Available in length 499 mm / 19.6".

Multi-point lock Hook-bolts 855GL type-11

  • steel hooks and pins
  • Three-dimensional locking with integrated hooks and metal pins for optimal security.
  • Pressure adjustment.

Class A insert 6.D.C cylinder with keys

Durability: 100 000 cycles
Security rating: Class 6 the highest
Attack resistance: Class D the highest
Burglar resistance: Class C the highest

Certified, cylindrical, profiled 9-ratchet insert (two rows of latches).
Innovative anti-drill and anti-picking protection.
Inserts resistant to bumping. 5 keys included, key code card.

Write Your Own Review
You're reviewing:LIM G2 - Glass front aluminum door with decorative panel
Your Rating

The LIM G2 Glass Front Aluminium Door with Decorative Panel is a striking entrance solution that perfectly combines contemporary elegance, robust construction, and exceptional functionality. Designed to enhance the aesthetic appeal and security of any residential or commercial property, this door features a sleek aluminium frame paired with expansive glass elements, complemented by a beautifully crafted decorative panel that adds a unique touch of artistry and sophistication.

The core of the LIM G2 door is its high-quality aluminium frame, engineered for maximum strength, durability, and resistance to the elements. Aluminium is renowned for its lightweight yet sturdy nature, and this door benefits from advanced manufacturing techniques that ensure long-lasting performance with minimal maintenance. The frame’s corrosion-resistant finish protects against rust, fading, and wear, making it an ideal choice for various climates and environments. Additionally, the door incorporates thermal break technology, which significantly improves energy efficiency by reducing heat transfer and helping to maintain comfortable indoor temperatures throughout the year.

The expansive glass front is the standout feature of the LIM G2 door, offering a seamless blend of transparency and style. Crafted from premium safety glass, available in options like tempered or laminated varieties, the glass panels provide excellent security and durability. These glass elements allow abundant natural light to flood interior spaces, creating bright and welcoming environments while maintaining a strong barrier against noise and weather. The glass can be customized with different finishes—including clear, frosted, tinted, or patterned—to balance privacy needs with aesthetic preferences, making the door adaptable to diverse design schemes.

The decorative panel integrated into the LIM G2 door serves as a distinctive design element that elevates the door beyond a simple entryway. Available in a range of intricate patterns, textures, and finishes, the panel can be tailored to complement both modern and traditional architectural styles. Whether featuring geometric lines, organic motifs, or custom artwork, the decorative panel adds depth and character, transforming the door into a captivating focal point that enhances curb appeal and reflects the personality of the space.

Security is a paramount consideration in the LIM G2 door’s design. It is equipped with a multi-point locking mechanism that secures the door firmly at several points along the frame, providing superior protection against unauthorized entry. Heavy-duty hinges and reinforced aluminium profiles ensure smooth operation and durability, even with frequent use. For added convenience and modern living, the door is compatible with smart lock technology, enabling keyless access, remote control, and integration with home automation systems for enhanced security management and ease of use.

Weatherproofing and insulation are integral features of the LIM G2 door. High-quality seals and gaskets prevent drafts, water infiltration, and external noise, ensuring a comfortable and quiet indoor environment regardless of weather conditions. The aluminium surfaces are finished with durable coatings that resist scratches, fading, and corrosion, maintaining the door’s pristine appearance over time with minimal upkeep required.

Installation of the LIM G2 Glass Front Aluminium Door with Decorative Panel is handled by experienced professionals who ensure precise fitting and alignment, optimizing the door’s performance and longevity. Its versatile design makes it suitable for a variety of applications, including main entrances, office entryways, and stylish patio doors, enhancing both security and visual appeal wherever it is installed.

In summary, the LIM G2 Glass Front Aluminium Door with Decorative Panel is a sophisticated and reliable entrance solution that marries modern design, superior security, energy efficiency, and artistic customization. It is an excellent choice for those seeking a durable, elegant, and highly functional door that adds lasting value, comfort, and distinction to any property.
