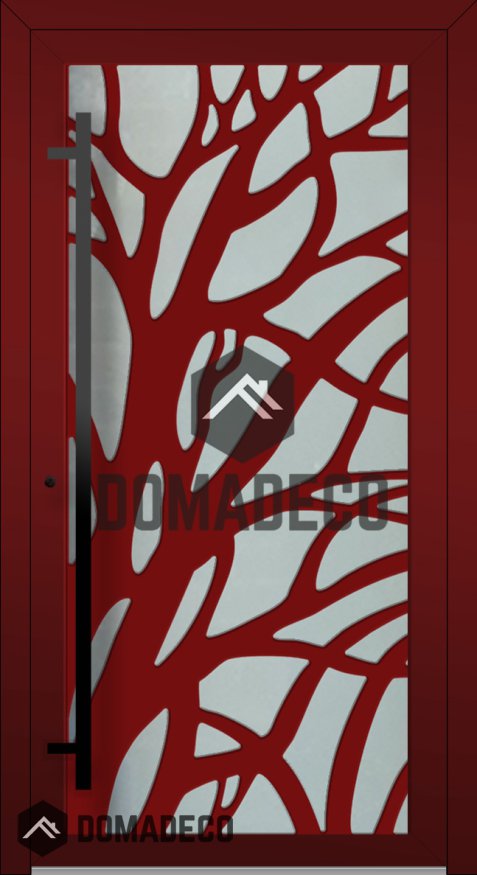

LIM G4 - Glass entry aluminum door with decorative panel

SKU
LIM-G4
Rating:
100 % of 100
1  Review Add Your Review
AVAILABLE
$6,720.00

The price includes TAX & shipping

Click here to select the configuration

Doors are manufactured after the order has been placed through the website.
Production time for our doors:
door named LIM (aluminum) - production takes 6 weeks
door named STA (stainless steel) - production takes 4 weeks
door named FARGO (stainless steel) - production takes 7 weeks

Size door with frame:
Width from: 35.4" to 51"
Height from: 78.7" to 96"

Available door colors:
 anthracite, white, black, silver gray, red, blue, yellow, brown, green, walnut, wenge, golden oak, mahogany, custom from RAL palette

Our exterior doors with hinges on the side are hurricane impact rated. (for more details please contact us)

You can order this door model in a bigger size. View Pivot G4

Specification

The multi-point lock FUHR is used for locking. It has many locking and control configurations.
Hinges: the choice of wing or roller hinges and concealed hinges.
Glazing in the door leaf: triple glazing glass
Thickness of polyurethane foam in the leaf: 1.9"
Thermal insulation: R-Value 5.9

The door set includes:

- Aluminum door and the door frame;
- door handle made of stainless steel;
- 3-part roller hinges in the same color as the door;
- Multipoint locking system 855GL : full locking in 7 points, - 2 hooks, - 4 bolts plus upper bolt
- Threshold strip 0.6" height;
- anti-burglary class lock insert with 5 keys.

Full door information

The door is already mounted onto the frame (prehung door), which saves you all the work. The door is completely ready for installation.

The picture showing how to take the measurement. Click here
The installation space between the frame and the wall can be between 0.2" to 0.8" on each side.
Frequently Asked Questions: click here to check

-
+
$6,720.00

The price includes TAX & shipping

Wish List
Email

Profile construction

Specification

  • frame depth: 70 mm / 2.76 inch ,
  • Thermal insulation: Ud = 1.0 W/(m2*K) / R-Value 5.6
  • The multi-point lock FUHR is used for locking
  • Thickness of polyurethane foam in the leaf: 48 mm / 1.9"

The door set includes:

  • Aluminum door and the door frame;
  • door handles made of stainless steel;
  • roller hinges in the same color as the door
  • Multipoint locking system 855GL : full locking in 7 points, - 2 hooks, - 4 bolts plus upper bolt
  • Threshold strip 15 mm / 0.59" height;
  • anti-burglary class lock insert with 5 keys.

Glazing

The glass in our doors are triple-pane windows. All panes are connected with spacer frames. Two of them are covered with Low-E coatings that provide natural light while helping to limit heat gain and thermal energy loss. It is also possible to choose P4 anti-burglary glass or safety glass VSG 33.1

standard glazing package 4th/16Ar/4/16Ar/4th

safety glass 33.1//4//4

P4 anti-burglary

Types of glazing

There is a wide range of glass options. In our offer one will find energy-saving, sound-absorbing, safety, anti-burglary and sunscreen windows. The most popular ones are milk glass, decorative or mirror glass as well as bronze reflex glass.

Colours

Colours can emphasise the shape of aluminium joinery and provide it with individual character and genuine appearance. All aluminium systems offered are available in two colour palettes – RAL and DECORAL.
RAL Basic colour palette.

Fiery red or maybe a delicate blue? The RAL K5 Classic colour palette will allow you to choose the colour of the door perfectly suited to your requirements!



RAL 1003

RAL 2004

RAL 3020

RAL 5002

RAL 6005

RAL 6021

RAL 7016

RAL 7039

RAL 7040

RAL 9016

RAL 9005

RAL 9007

DECORAL woodgrain finish palette

Aluminium doors can also have more traditional, woodlike finishes such as: beech, sweet cherry, golden oak, winchester, mahogany, walnut, dark oak, pine, cherry, wenge.



Golden Oak

Mahogany

Walnut

Wenge

Beech

Roller hinges WR WALA

WR WALA are minimalistic, modern looking, high quality roller hinges. They have been tested and are certified by the German IFT ROSENHEIM. Hinges are protected by patent law and can be adjusted: vertically: -5 to 5mm / -0.2" to 0.2", gap: -2.5 to 2.5 mm / -0.1" to 0.1" , seal pressure: -1.5 to 1.5 mm / -0.05" to 0.05" . When it comes to finish they are available in stainless steel or any colour from the RAL palette (hinges will be painted in the same colour as the door). Depending on the door height there are at least 3 hinges per door leaf/slab.

greenteQ handles

QreenteQ handles are made of anodized aluminum with high resistance to corrosion, weather conditions and scratches.
The INOX version is made of matt stainless steel.
Handle with fixed/rotary bearing and return spring mechanism adapted to the pin square 8 mm / 0.3".
TThe escutcheon/cover plate is 35 mm / 0.14" wide.

T-bar - long vertical handle or normal handle:

Stainless steel door handles are designed for one or two-sided use for external doors.
The innovative mounting system enables quick and easy installation of the door handle. Our offer includes many handrails:




Q45
T-bar at an angle of 45 degrees with a square section of 40 × 40 mm / 1.6"x1.6"
Available in lengths: 1200 / 47.2", 1500 / 59", 1800 mm / 70.9".

P45
T-bar at an angle of 45 degrees with a round cross-section ⌀ 40 mm / 1.6".
Available in lengths: 1200 / 47.2", 1500 / 59", 1800 mm / 70.9".

Z32
Black T-bar with an interesting curve that can also be used for all-glass doors
Available in length 499 mm / 19.6".

Multi-point lock Hook-bolts 855GL type-11

  • steel hooks and pins
  • Three-dimensional locking with integrated hooks and metal pins for optimal security.
  • Pressure adjustment.

Class A insert 6.D.C cylinder with keys

Durability: 100 000 cycles
Security rating: Class 6 the highest
Attack resistance: Class D the highest
Burglar resistance: Class C the highest

Certified, cylindrical, profiled 9-ratchet insert (two rows of latches).
Innovative anti-drill and anti-picking protection.
Inserts resistant to bumping. 5 keys included, key code card.

Write Your Own Review
You're reviewing:LIM G4 - Glass entry aluminum door with decorative panel
Your Rating

The LIM G4 is a sophisticated glass entry aluminum door that seamlessly combines modern design with durable construction and customizable decorative elements. Engineered to enhance the aesthetic appeal of both residential and commercial entrances, this door offers a perfect balance of transparency, security, and style. Crafted with high-quality aluminum framing and expansive glass panels, the LIM G4 creates an inviting and elegant entryway that allows natural light to flood interior spaces while providing excellent structural integrity and weather resistance.

At the heart of the LIM G4’s design is its extensive use of glass, which can be customized with a variety of decorative panels to suit diverse architectural styles and personal tastes. The decorative panels range from frosted and textured glass to intricate patterns and artistic motifs, allowing property owners to express their unique style while maintaining privacy and security. These glass panels are constructed from tempered or laminated safety glass, ensuring enhanced durability, resistance to impact, and compliance with safety standards.

The aluminum frame of the LIM G4 is precision-engineered to provide strength, stability, and resistance to corrosion and environmental wear. Its sleek, slim profiles maximize the glass surface area, creating a minimalist and contemporary look that complements modern architectural trends. Coated with a high-performance powder finish, the frame resists fading, scratching, and weather damage, ensuring the door remains visually striking and low maintenance for years to come. Available in a wide range of colors and finishes, the aluminum frame can be tailored to harmonize with any building facade.

Functionality and security are key considerations in the LIM G4’s design. The door is equipped with advanced locking mechanisms that provide reliable security without compromising ease of use. Multi-point locks and reinforced hinges contribute to the door’s robustness, deterring unauthorized access and enhancing overall safety. Furthermore, the door’s tight seals and thermal break technology improve energy efficiency by minimizing heat transfer and air infiltration, helping to maintain comfortable interior temperatures and reduce energy costs.

The LIM G4 also offers excellent acoustic insulation, reducing external noise and creating a peaceful indoor environment. Its smooth operation is facilitated by high-quality hardware and precision engineering, ensuring effortless opening and closing. The door’s versatile design allows for various configurations, including single or double door setups, side panels, and transoms, providing flexibility to suit different entryway dimensions and design preferences.

Installation of the LIM G4 is streamlined, with modular components and adjustable fittings that ensure a precise fit and seamless integration with existing architectural elements. Whether specified for new construction or renovation projects, this door delivers both aesthetic enhancement and functional performance.

In summary, the LIM G4 glass entry aluminum door with decorative panel is an elegant and practical choice for those seeking a stylish, secure, and customizable entrance solution. Its combination of expansive glass surfaces, decorative customization options, durable aluminum framing, and advanced security features makes it ideal for elevating the visual appeal and functionality of any property. With the LIM G4, you invest in a door that embodies contemporary design, superior craftsmanship, and lasting performance.
