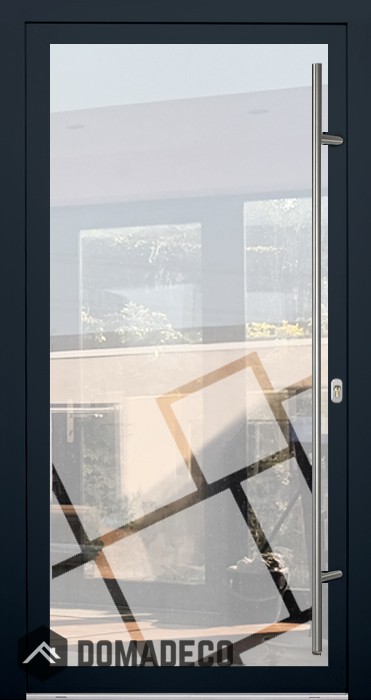

LIM Glass S14 - main frosted door with transparent decor

SKU
LIM Glass-S14
Rating:
100 % of 100
1  Review Add Your Review
AVAILABLE
$5,470.00

The price includes TAX & shipping

Click here to select the configuration

Doors are manufactured after the order has been placed through the website.
Production time for our doors:
door named LIM (aluminum) - production takes 6 weeks
door named STA (stainless steel) - production takes 4 weeks
door named FARGO (stainless steel) - production takes 7 weeks

Size door with frame:
Width from: 35.4" to 51"
Height from: 78.7" to 96"

Available door colors:
 anthracite, white, black, silver gray, red, blue, yellow, brown, green, walnut, wenge, golden oak, mahogany, custom from RAL palette

Our exterior doors with hinges on the side are hurricane impact rated. (for more details please contact us)

Specification

The multi-point lock FUHR is used for locking. It has many locking and control configurations.
Glazing in the door leaf: triple glazing glass
Thickness of polyurethane foam in the leaf: 1.9"
Thermal insulation: R-Value 5.9

The door set includes:

- Aluminum door and the door frame;
- door handle made of stainless steel;
- 3-part roller hinges in the same color as the door;
- Multipoint locking system 855GL : full locking in 7 points, - 2 hooks, - 4 bolts plus upper bolt
- Threshold strip 0.6" height;
- anti-burglary class lock insert with 5 keys.

Full door information

The door is already mounted onto the frame (prehung door), which saves you all the work. The door is completely ready for installation.

The picture showing how to take the measurement. Click here
The installation space between the frame and the wall can be between 0.2" to 0.8" on each side.
Frequently Asked Questions: click here to check

-
+
$5,470.00

The price includes TAX & shipping

Wish List
Email
We found other products you might like!

Profile construction

Specification

  • frame depth: 70 mm / 2.76 inch ,
  • Thermal insulation: Ud = 1.0 W/(m2*K) / R-Value 5.6
  • The multi-point lock FUHR is used for locking
  • Thickness of polyurethane foam in the leaf: 48 mm / 1.9"

The door set includes:

  • Aluminum door and the door frame;
  • door handles made of stainless steel;
  • roller hinges in the same color as the door
  • Multipoint locking system 855GL : full locking in 7 points, - 2 hooks, - 4 bolts plus upper bolt
  • Threshold strip 15 mm / 0.59" height;
  • anti-burglary class lock insert with 5 keys.

Glazing

The glass in our doors are triple-pane windows. All panes are connected with spacer frames. Two of them are covered with Low-E coatings that provide natural light while helping to limit heat gain and thermal energy loss. It is also possible to choose P4 anti-burglary glass or safety glass VSG 33.1

standard glazing package 4th/16Ar/4/16Ar/4th

safety glass 33.1//4//4

P4 anti-burglary

Types of glazing

There is a wide range of glass options. In our offer one will find energy-saving, sound-absorbing, safety, anti-burglary and sunscreen windows. The most popular ones are milk glass, decorative or mirror glass as well as bronze reflex glass.

Colours

Colours can emphasise the shape of aluminium joinery and provide it with individual character and genuine appearance. All aluminium systems offered are available in two colour palettes – RAL and DECORAL.
RAL Basic colour palette.

Fiery red or maybe a delicate blue? The RAL K5 Classic colour palette will allow you to choose the colour of the door perfectly suited to your requirements!



RAL 1003

RAL 2004

RAL 3020

RAL 5002

RAL 6005

RAL 6021

RAL 7016

RAL 7039

RAL 7040

RAL 9016

RAL 9005

RAL 9007

DECORAL woodgrain finish palette

Aluminium doors can also have more traditional, woodlike finishes such as: beech, sweet cherry, golden oak, winchester, mahogany, walnut, dark oak, pine, cherry, wenge.



Golden Oak

Mahogany

Walnut

Wenge

Beech

Roller hinges WR WALA

WR WALA are minimalistic, modern looking, high quality roller hinges. They have been tested and are certified by the German IFT ROSENHEIM. Hinges are protected by patent law and can be adjusted: vertically: -5 to 5mm / -0.2" to 0.2", gap: -2.5 to 2.5 mm / -0.1" to 0.1" , seal pressure: -1.5 to 1.5 mm / -0.05" to 0.05" . When it comes to finish they are available in stainless steel or any colour from the RAL palette (hinges will be painted in the same colour as the door). Depending on the door height there are at least 3 hinges per door leaf/slab.

greenteQ handles

QreenteQ handles are made of anodized aluminum with high resistance to corrosion, weather conditions and scratches.
The INOX version is made of matt stainless steel.
Handle with fixed/rotary bearing and return spring mechanism adapted to the pin square 8 mm / 0.3".
TThe escutcheon/cover plate is 35 mm / 0.14" wide.

T-bar - long vertical handle or normal handle:

Stainless steel door handles are designed for one or two-sided use for external doors.
The innovative mounting system enables quick and easy installation of the door handle. Our offer includes many handrails:




Q45
T-bar at an angle of 45 degrees with a square section of 40 × 40 mm / 1.6"x1.6"
Available in lengths: 1200 / 47.2", 1500 / 59", 1800 mm / 70.9".

P45
T-bar at an angle of 45 degrees with a round cross-section ⌀ 40 mm / 1.6".
Available in lengths: 1200 / 47.2", 1500 / 59", 1800 mm / 70.9".

Z32
Black T-bar with an interesting curve that can also be used for all-glass doors
Available in length 499 mm / 19.6".

Multi-point lock Hook-bolts 855GL type-11

  • steel hooks and pins
  • Three-dimensional locking with integrated hooks and metal pins for optimal security.
  • Pressure adjustment.

Class A insert 6.D.C cylinder with keys

Durability: 100 000 cycles
Security rating: Class 6 the highest
Attack resistance: Class D the highest
Burglar resistance: Class C the highest

Certified, cylindrical, profiled 9-ratchet insert (two rows of latches).
Innovative anti-drill and anti-picking protection.
Inserts resistant to bumping. 5 keys included, key code card.

Write Your Own Review
You're reviewing:LIM Glass S14 - main frosted door with transparent decor
Your Rating

The LIM Glass S14 main frosted door with transparent decor is a strikingly elegant entrance solution that masterfully combines privacy, style, and modern sophistication. Designed to meet the needs of contemporary residential and commercial spaces alike, this door offers a unique balance between obscured privacy and artistic transparency, creating an inviting yet discreet entryway that enhances any architectural setting.

At the heart of the LIM Glass S14 is its premium frosted glass panel, which provides excellent privacy by softly diffusing light and obscuring visibility from the outside while still allowing natural illumination to brighten interior spaces. This frosted finish ensures that the door maintains a subtle, understated elegance, making it ideal for environments where privacy is paramount without sacrificing the benefits of daylight. The high-quality frosted glass is crafted using advanced techniques to guarantee durability, scratch resistance, and long-lasting clarity, maintaining its pristine appearance over time.

Adding a distinctive and artistic touch to the door is the transparent decor embedded within the frosted glass panel. This transparent detailing features intricate patterns, geometric shapes, or custom designs that create visual depth and interest, transforming a simple frosted door into a captivating focal point. The transparent elements contrast beautifully with the frosted background, allowing glimpses of light and shapes to pass through, enhancing the door’s aesthetic appeal and adding a layer of sophistication and personalization.

The LIM Glass S14 is framed with a robust and sleek aluminum structure that complements the glass’s modern look while providing exceptional strength and stability. Aluminum is chosen for its lightweight yet durable properties, offering resistance to corrosion, weathering, and wear, which ensures the door remains functional and visually appealing for years to come. The precision-engineered frame also supports easy installation and smooth operation, contributing to a seamless user experience.

Security is a key feature of the LIM Glass S14 door. The combination of toughened frosted glass and a sturdy aluminum frame offers reliable protection against forced entry and environmental factors. Additionally, the door can be equipped with advanced locking mechanisms and reinforced hardware to further enhance safety and peace of mind. The tight seals integrated into the design also provide excellent thermal insulation and soundproofing, contributing to energy efficiency and a quieter, more comfortable indoor environment.

Maintenance of the LIM Glass S14 door is simple and hassle-free. The aluminum frame is treated with protective coatings that resist fading, scratching, and corrosion, while the glass surface can be easily cleaned with mild detergents to keep it looking fresh and elegant. This ensures that the door retains its beauty and functionality without requiring extensive upkeep.

Customization options abound with the LIM Glass S14, allowing clients to choose from a variety of frame colors, transparent decor patterns, and frosted finishes to best suit their aesthetic preferences and architectural requirements. This flexibility makes the door a versatile choice for a wide range of design styles, from modern minimalism to more ornate or eclectic interiors.

In summary, the LIM Glass S14 main frosted door with transparent decor is a stunning blend of privacy, artistry, and durability. Its frosted glass panel offers essential privacy and light diffusion, while the transparent decorative elements add a unique and sophisticated visual appeal. Supported by a strong aluminum frame and enhanced with security features, this door delivers both style and substance. For those seeking a main entrance that combines elegance, functionality, and customization, the LIM Glass S14 stands out as an exceptional choice that elevates any space it graces.
