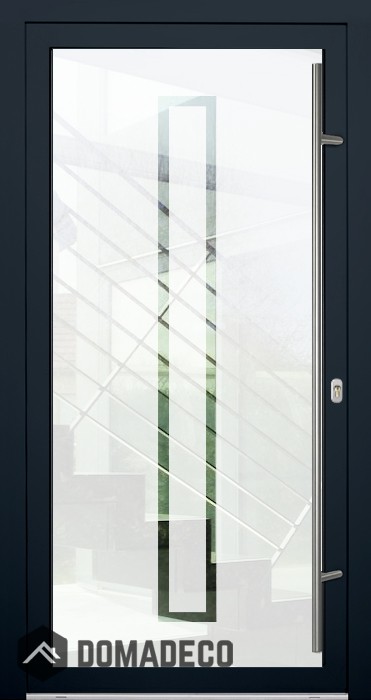

LIM Glass S9 - origin frosted front door with transparent decor

SKU
LIM Glass S9
Rating:
100 % of 100
1  Review Add Your Review
AVAILABLE
$5,470.00

The price includes TAX & shipping

Click here to select the configuration

Doors are manufactured after the order has been placed through the website.
Production time for our doors:
door named LIM (aluminum) - production takes 6 weeks
door named STA (stainless steel) - production takes 4 weeks
door named FARGO (stainless steel) - production takes 7 weeks

Size door with frame:
Width from: 35.4" to 51"
Height from: 78.7" to 96"

Available door colors:
 anthracite, white, black, silver gray, red, blue, yellow, brown, green, walnut, wenge, golden oak, mahogany, custom from RAL palette

Our exterior doors with hinges on the side are hurricane impact rated. (for more details please contact us)

Specification

The multi-point lock FUHR is used for locking. It has many locking and control configurations.
Glazing in the door leaf: triple glazing glass
Thickness of polyurethane foam in the leaf: 1.9"
Thermal insulation: R-Value 5.9

The door set includes:

- Aluminum door and the door frame;
- door handle made of stainless steel;
- 3-part roller hinges in the same color as the door;
- Multipoint locking system 855GL : full locking in 7 points, - 2 hooks, - 4 bolts plus upper bolt
- Threshold strip 0.6" height;
- anti-burglary class lock insert with 5 keys.

Full door information

The door is already mounted onto the frame (prehung door), which saves you all the work. The door is completely ready for installation.

The picture showing how to take the measurement. Click here
The installation space between the frame and the wall can be between 0.2" to 0.8" on each side.
Frequently Asked Questions: click here to check

-
+
$5,470.00

The price includes TAX & shipping

Wish List
Email
We found other products you might like!

Profile construction

Specification

  • frame depth: 70 mm / 2.76 inch ,
  • Thermal insulation: Ud = 1.0 W/(m2*K) / R-Value 5.6
  • The multi-point lock FUHR is used for locking
  • Thickness of polyurethane foam in the leaf: 48 mm / 1.9"

The door set includes:

  • Aluminum door and the door frame;
  • door handles made of stainless steel;
  • roller hinges in the same color as the door
  • Multipoint locking system 855GL : full locking in 7 points, - 2 hooks, - 4 bolts plus upper bolt
  • Threshold strip 15 mm / 0.59" height;
  • anti-burglary class lock insert with 5 keys.

Glazing

The glass in our doors are triple-pane windows. All panes are connected with spacer frames. Two of them are covered with Low-E coatings that provide natural light while helping to limit heat gain and thermal energy loss. It is also possible to choose P4 anti-burglary glass or safety glass VSG 33.1

standard glazing package 4th/16Ar/4/16Ar/4th

safety glass 33.1//4//4

P4 anti-burglary

Types of glazing

There is a wide range of glass options. In our offer one will find energy-saving, sound-absorbing, safety, anti-burglary and sunscreen windows. The most popular ones are milk glass, decorative or mirror glass as well as bronze reflex glass.

Colours

Colours can emphasise the shape of aluminium joinery and provide it with individual character and genuine appearance. All aluminium systems offered are available in two colour palettes – RAL and DECORAL.
RAL Basic colour palette.

Fiery red or maybe a delicate blue? The RAL K5 Classic colour palette will allow you to choose the colour of the door perfectly suited to your requirements!



RAL 1003

RAL 2004

RAL 3020

RAL 5002

RAL 6005

RAL 6021

RAL 7016

RAL 7039

RAL 7040

RAL 9016

RAL 9005

RAL 9007

DECORAL woodgrain finish palette

Aluminium doors can also have more traditional, woodlike finishes such as: beech, sweet cherry, golden oak, winchester, mahogany, walnut, dark oak, pine, cherry, wenge.



Golden Oak

Mahogany

Walnut

Wenge

Beech

Roller hinges WR WALA

WR WALA are minimalistic, modern looking, high quality roller hinges. They have been tested and are certified by the German IFT ROSENHEIM. Hinges are protected by patent law and can be adjusted: vertically: -5 to 5mm / -0.2" to 0.2", gap: -2.5 to 2.5 mm / -0.1" to 0.1" , seal pressure: -1.5 to 1.5 mm / -0.05" to 0.05" . When it comes to finish they are available in stainless steel or any colour from the RAL palette (hinges will be painted in the same colour as the door). Depending on the door height there are at least 3 hinges per door leaf/slab.

greenteQ handles

QreenteQ handles are made of anodized aluminum with high resistance to corrosion, weather conditions and scratches.
The INOX version is made of matt stainless steel.
Handle with fixed/rotary bearing and return spring mechanism adapted to the pin square 8 mm / 0.3".
TThe escutcheon/cover plate is 35 mm / 0.14" wide.

T-bar - long vertical handle or normal handle:

Stainless steel door handles are designed for one or two-sided use for external doors.
The innovative mounting system enables quick and easy installation of the door handle. Our offer includes many handrails:




Q45
T-bar at an angle of 45 degrees with a square section of 40 × 40 mm / 1.6"x1.6"
Available in lengths: 1200 / 47.2", 1500 / 59", 1800 mm / 70.9".

P45
T-bar at an angle of 45 degrees with a round cross-section ⌀ 40 mm / 1.6".
Available in lengths: 1200 / 47.2", 1500 / 59", 1800 mm / 70.9".

Z32
Black T-bar with an interesting curve that can also be used for all-glass doors
Available in length 499 mm / 19.6".

Multi-point lock Hook-bolts 855GL type-11

  • steel hooks and pins
  • Three-dimensional locking with integrated hooks and metal pins for optimal security.
  • Pressure adjustment.

Class A insert 6.D.C cylinder with keys

Durability: 100 000 cycles
Security rating: Class 6 the highest
Attack resistance: Class D the highest
Burglar resistance: Class C the highest

Certified, cylindrical, profiled 9-ratchet insert (two rows of latches).
Innovative anti-drill and anti-picking protection.
Inserts resistant to bumping. 5 keys included, key code card.

Write Your Own Review
You're reviewing:LIM Glass S9 - origin frosted front door with transparent decor
Your Rating

The LIM Glass S9 Origin frosted front door with transparent decor is a masterful fusion of elegance, functionality, and modern design, perfectly crafted to elevate the entrance of any home or commercial space. This door stands out with its sophisticated frosted glass finish, which artfully balances privacy with the natural diffusion of light. Unlike traditional solid doors, the frosted glass offers a soft, muted translucency that gently illuminates your interior while maintaining an exclusive sense of seclusion from the outside world. This feature makes it an ideal choice for those who desire a stylish yet practical solution for their entryway.

What truly distinguishes the LIM Glass S9 Origin door is the exquisite transparent decor integrated within the frosted glass surface. This intricate design element adds a layer of artistic flair and visual interest, creating a captivating contrast that enhances the door’s overall aesthetic appeal. The transparent accents allow carefully controlled beams of natural light to pass through, casting subtle patterns and enhancing the ambiance of your home’s interior. This interplay between frosted and clear glass not only enriches the door’s visual texture but also fosters a warm and inviting atmosphere right from the threshold.

Crafted with premium-quality materials, the LIM Glass S9 Origin door is built to withstand the rigors of daily use while maintaining its pristine appearance over time. The frosted glass is specially treated to resist scratches, stains, and weather-related wear, ensuring longevity and durability even in challenging environmental conditions. Complementing the glass panel is a robust frame constructed from high-grade materials that provide structural integrity and enhanced security. Equipped with secure locking mechanisms, this door offers peace of mind without compromising on its sleek design, making it a trustworthy barrier between your home and the outside world.

In addition to its aesthetic and security advantages, the LIM Glass S9 Origin frosted front door is engineered for energy efficiency. Its insulating properties help maintain consistent indoor temperatures by minimizing heat loss during colder months and reducing heat gain in warmer seasons. This efficiency not only contributes to a more comfortable living environment but also supports sustainability by lowering energy consumption and utility bills. The door’s smooth operation and minimal maintenance requirements further add to its practicality, making it an excellent investment for homeowners seeking both style and convenience.

Whether you’re embarking on a new construction project or upgrading an existing entrance, the LIM Glass S9 Origin frosted front door with transparent decor offers a refined and contemporary solution. It transforms the simple act of entering your home into a statement of elegance, combining privacy, light, security, and durability in one beautifully designed package. With this door, you’re not just enhancing your home’s curb appeal—you’re embracing a sophisticated lifestyle choice that reflects attention to detail and a passion for quality craftsmanship.
