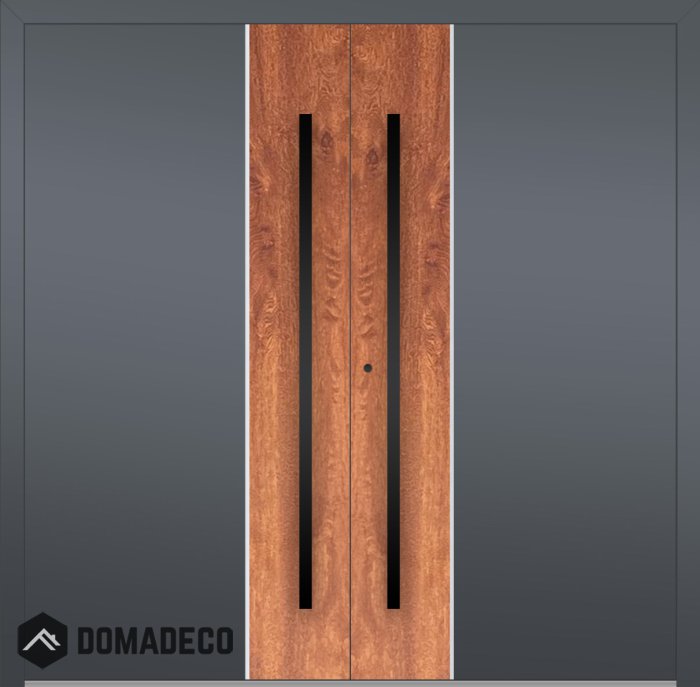

LIM v22 double - double aluminum front door with wooden decor

SKU
LIM double v22
Rating:
100 % of 100
1  Review Add Your Review
AVAILABLE
$12,060.00

The price includes TAX & shipping

Click here to select the configuration

Doors are manufactured after the order has been placed through the website.
Production time for our doors:
door named LIM (aluminum) - production takes 6 weeks
door named STA (stainless steel) - production takes 4 weeks
door named FARGO (stainless steel) - production takes 7 weeks

Size door with frame:
Width from: 63" to 78.7"
Height from: 78.7" to 112.6"

Available door colors:
 anthracite, white, black, silver gray, red, blue, yellow, brown, green, walnut, wenge, golden oak, mahogany, custom from RAL palette

Our exterior doors with hinges on the side are hurricane impact rated. (for more details please contact us)

Specification

The multi-point lock FUHR is used for locking. It has many locking and control configurations.
Hinges: the choice of wing or roller hinges and concealed hinges.
Glazing in the door leaf: triple glazing glass
Thickness of polyurethane foam in the leaf: 2.8"
Thermal insulation: R-Value 8.3
Sound insulation: 30dB

The door set includes:

- Aluminum door and the door frame;
- door handle made of stainless steel;
- 3-part roller hinges in the same color as the door;
- Multipoint locking system 855GL : full locking in 7 points, - 2 hooks, - 4 bolts plus upper bolt
- Threshold strip 0.6" height;
- anti-burglary class lock insert with 5 keys.

Full door information

The door is already mounted onto the frame (prehung door), which saves you all the work. The door is completely ready for installation.

The picture showing how to take the measurement. Click here
The installation space between the frame and the wall can be between 0.2" to 0.8" on each side.
Frequently Asked Questions: click here to check

-
+
$12,060.00

The price includes TAX & shipping

Wish List
Email
We found other products you might like!

Profile construction

Technical specifications:

  • The multi-point lock FUHR is used for locking. It has many locking and control configurations.
  • Hinges: the choice of wing or roller hinges (WALA) and concealed hinges (WALA).
  • Glazing in the door leaf: triple glazing glass
  • Thickness of polyurethane foam in the leaf: 70 mm / 2.75"
  • Thermal insulation: Ud = 0.7 W/(m2*K) / R-Value 8.3
  • Sound insulation: 30dB

The door set includes:

  • Aluminium door and the door frame;
  • door handle made of stainless steel;
  • 3-part roller hinges in the same color as the door;
  • Multipoint locking system 855GL : full locking in 7 points, - 2 hooks, - 4 bolts plus upper bolt
  • Threshold strip 15 mm height;
  • Standard lock insert with 5 keys.

Glazing

The glass in our doors are triple-pane windows. All panes are connected with spacer frames. Two of them are covered with Low-E coatings that provide natural light while helping to limit heat gain and thermal energy loss. It is also possible to choose P4 anti-burglary glass or safety glass VSG 33.1

standard glazing package 4th/16Ar/4/16Ar/4th

safety glass 33.1//4//4

P4 anti-burglary

Types of glazing

There is a wide range of glass options. In our offer one will find energy-saving, sound-absorbing, safety, anti-burglary and sunscreen windows. The most popular ones are milk glass, decorative or mirror glass as well as bronze reflex glass.

Light permeability of the glass:

- Milk – frosted glass 89%
- Mirror glass – 68 %
- Graphite reflex glass – 42 %

One way mirror glass has a thin layer of reflective coating which allows the glass to reflect half the light that hits it. Simultaneously, half the light also goes straight through. This makes the glass both reflective and transparent. During the day, the outside is bright which means that people who are outside are not able to see what is inside the house. However, during the night when the light is on, the one-way mirror turns into a window. People are able to see through the glass both ways.

To solve the issue, one can apply the one-way vision foil. The foil consists of hundreds of small holes enabling light penetration, which gives the effect of semi-transmission. It is usually used for advertisement on buses or windows.

Colours

Colours can emphasise the shape of aluminium joinery and provide it with individual character and genuine appearance. All aluminium systems offered are available in two colour palettes – RAL and DECORAL.
RAL Basic colour palette.

Fiery red or maybe a delicate blue? The RAL K5 Classic colour palette will allow you to choose the colour of the door perfectly suited to your requirements!



RAL 1003

RAL 2004

RAL 3020

RAL 5002

RAL 6005

RAL 6021

RAL 7016

RAL 7039

RAL 7040

RAL 9016

RAL 9005

RAL 9007

DECORAL woodgrain finish palette

Aluminium doors can also have more traditional, woodlike finishes such as: beech, sweet cherry, golden oak, winchester, mahogany, walnut, dark oak, pine, cherry, wenge.



Golden Oak

Mahogany

Walnut

Wenge

Beech

Wala Hidden Hinges

We use Wala hidden hinges that combine high durability, numerous assembly advantages and a discreet, elegant form. Hinges are invisible when the door is closed. The 3D adjustment function provides a convenient way of adjusting the pressure, height and side adjustment (left/right) of the door. Hinges allow for trouble-free installation and removal of the door leaf/slab. Depending on the door height there are at least 3 hinges per door leaf/slab.

Roller hinges WR WALA

WR WALA are minimalistic, modern looking, high quality roller hinges. They have been tested and are certified by the German IFT ROSENHEIM. Hinges are protected by patent law and can be adjusted: vertically: -5 to 5mm / -0.2" to 0.2", gap: -2.5 to 2.5 mm / -0.1" to 0.1" , seal pressure: -1.5 to 1.5 mm / -0.05" to 0.05" . When it comes to finish they are available in stainless steel or any colour from the RAL palette (hinges will be painted in the same colour as the door). Depending on the door height there are at least 3 hinges per door leaf/slab.

ALUPROF STYLE handles

ALUPROF handles are made of anodized aluminum with high resistance to corrosion, weather conditions and scratches.
The INOX version is made of matt stainless steel.
Handle with fixed/rotary bearing and return spring mechanism adapted to the pin square 8 mm / 0.3".
The escutcheon/cover plate is 33 mm / 0.14" wide.

T-bar - long vertical handle or normal handle:

Stainless steel door handles are designed for one or two-sided use for external doors.
The innovative mounting system enables quick and easy installation of the door handle. Our offer includes many handrails:




Q10
T-bar with a square section of 40×40 mm / 1.6"x1.6".
Available in lengths: 1200 / 47.2", 1500 / 59", 1800 mm / 70.9".

Q45
T-bar at an angle of 45 degrees with a square section of 40 × 40 mm / 1.6"x1.6"
Available in lengths: 1200 / 47.2", 1500 / 59", 1800 mm / 70.9".

P10
T-bar with a round cross-section ⌀ 40 mm / 1.6" .
Available in lengths: 1200 / 47.2", 1500 / 59", 1800 mm / 70.9"

P45
T-bar at an angle of 45 degrees with a round cross-section ⌀ 40 mm / 1.6".
Available in lengths: 1200 / 47.2", 1500 / 59", 1800 mm / 70.9".

Z18
Black, designer handle.
Available in length 480 mm / 18.9".

Z20
Black T-bar with an interesting design
Available in length 498 mm / 19.6".

Z32
Black T-bar with an interesting curve that can also be used for all-glass doors
Available in length 499 mm / 19.6".

Z24
Black, oval handle
Width 450 mm/ 17.7"

Z52
T-bar round z52 copper
⌀ 198 mm / 7.8"

Z53
T-bar round z53 silvershine
⌀ 198 mm / 7.8"

Z54
T-bar round z54 slivergalaxy
⌀ 198 mm / 7.8"

Recessed
T-bar recessed
Available in lengths: 1200 mm / 47.2" and 1800 mm / 70.9"

Multi-point lock Hook-bolts 855GL type-11

  • steel hooks and pins
  • Three-dimensional locking with integrated hooks and metal pins for optimal security.
  • Pressure adjustment.

Class A insert 6.D.C cylinder with keys

Durability: 100 000 cycles
Security rating: Class 6 the highest
Attack resistance: Class D the highest
Burglar resistance: Class C the highest

Certified, cylindrical, profiled 9-ratchet insert (two rows of latches).
Innovative anti-drill and anti-picking protection.
Inserts resistant to bumping. 5 keys included, key code card.



Write Your Own Review
You're reviewing:LIM v22 double - double aluminum front door with wooden decor
Your Rating

The LIM V22 Double is a sophisticated and stylish double aluminum front door that perfectly combines the durability and modernity of aluminum with the timeless warmth and elegance of wood decor. Designed for homeowners and commercial property developers who desire a front entrance that makes a bold statement without compromising on strength and longevity, this door offers an exceptional blend of aesthetics and performance. The LIM V22 Double door is an ideal choice for those looking to enhance curb appeal while enjoying the practical benefits of advanced materials and craftsmanship.

Engineered with a robust aluminum core, the LIM V22 Double door ensures exceptional strength, weather resistance, and low maintenance, making it suitable for a variety of climates and environments. Aluminum’s natural resistance to rust, corrosion, and warping means that this door will retain its structural integrity and sleek appearance for years to come, even under harsh weather conditions. The double-door configuration not only enhances the visual impact of the entryway but also provides functional advantages, allowing for wider openings that facilitate easy access and movement of large items such as furniture or equipment.

A defining feature of the LIM V22 Double door is its exquisite wooden decor accents, which bring a touch of natural beauty and warmth to the modern aluminum structure. The wooden elements are carefully integrated into the door design, offering the rich textures and intricate grain patterns that wood lovers appreciate, while benefiting from the durability and low upkeep of aluminum. This unique combination allows the door to complement a wide range of architectural styles, from contemporary and minimalist to traditional and rustic, making it a versatile choice for various home and commercial designs.

The LIM V22 Double door comes prefinished with high-quality coatings that protect both the aluminum and wooden surfaces from fading, cracking, and other signs of weathering. This ensures that the door maintains its vibrant look and refined texture with minimal maintenance, requiring only occasional cleaning to keep it looking pristine. The wooden decor is treated to withstand moisture and temperature fluctuations, preserving its natural charm and preventing deterioration over time.

Security is a top priority with the LIM V22 Double door. Equipped with reinforced hinges and advanced locking mechanisms, it offers robust protection against forced entry and unauthorized access. The sturdy aluminum frame, combined with the secure double-door design, creates an effective barrier that enhances the safety of your home or business. This door not only welcomes guests with style but also provides peace of mind through its reliable security features.

Functionality is further enhanced by the precision-engineered hardware and smooth operation of the LIM V22 Double door. The double-door setup allows for greater flexibility in daily use, enabling one or both doors to be opened as needed. Weather-resistant seals and insulation properties help maintain indoor comfort by reducing drafts and improving energy efficiency, contributing to lower heating and cooling costs.

Maintenance for the LIM V22 Double door is straightforward and hassle-free. Unlike traditional wooden doors that require frequent refinishing, this aluminum and wood hybrid door combines the best of both worlds by offering the aesthetic appeal of wood with the resilience and easy care of aluminum. The powder-coated aluminum surfaces resist scratches and fading, while the treated wooden decor maintains its beauty with minimal upkeep.

The LIM V22 Double door is also customizable to suit individual tastes and architectural requirements. Available in various finishes and wood decor options, it can be tailored to match the exterior palette and style of any property, adding a personalized touch that enhances overall curb appeal.

In summary, the LIM V22 Double double aluminum front door with wooden decor is an exceptional entryway solution that harmonizes durability, security, and timeless beauty. Its sturdy aluminum construction paired with elegant wood accents delivers a door that is both visually stunning and built to last. Perfect for residential or commercial applications, the LIM V22 Double door offers an inviting, functional, and secure entrance that elevates the aesthetic and value of any property for years to come.
