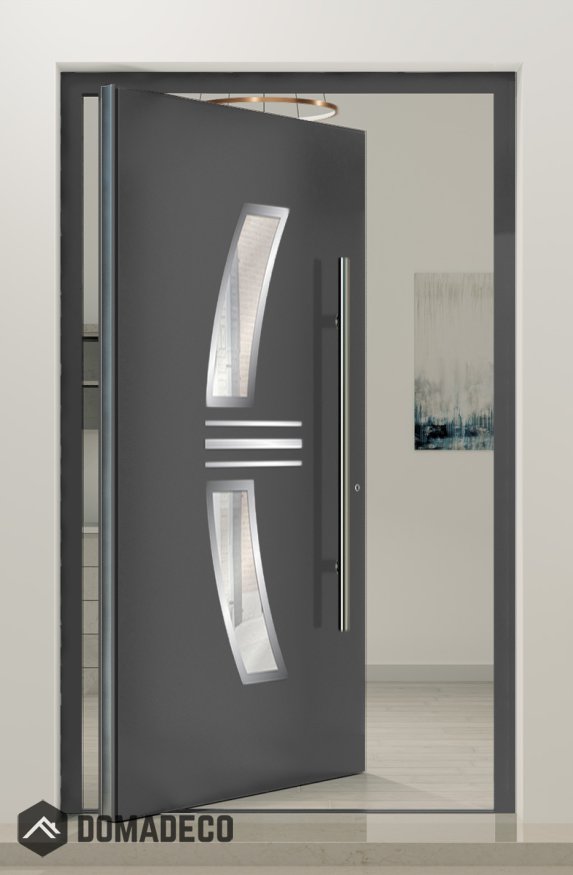

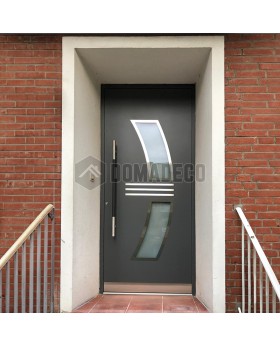

PIVOT AP15 - aluminium unique pivot front door

SKU
PIVOT AP15
Rating:
100 % of 100
1  Review Add Your Review
AVAILABLE
$10,120.00

The price includes TAX & shipping

Click here to select the configuration

Doors are manufactured after the order has been placed through the website.
Production time for our doors:
door named PIVOT (aluminum) - production takes 6 weeks

Size pivot door with frame:
Width from: 55.1" to 78"
Height from: 78.7" to 116"

Available door colors:
anthracite, white, black, silver gray, red, blue, yellow, brown, green, walnut, wenge, golden oak, mahogany, custom from RAL palette

You can order this door model in a smaller size. View LIM AP15

Technical specifications

Air tightness max. test pressure 4 (600 Pa)
Water tightness 4A (150 Pa)
Wind load resistance C3 (1200 Pa)
Burglar resistance RC2/WK2
Thermal insulation R-Value 6.8

The door set includes:

- Aluminum pivot door and the door frame;
- the door handle;
- FUHR 835 4-point lock
- low threshold door
- Standard lock insert with 5 keys.

Full door information

The door is already mounted onto the frame (prehung door), which saves you all the work. The door is completely ready for installation.

The picture showing how to take the measurement. Click here
The installation space between the frame and the wall can be between 0.2" to 0.8" on each side
Frequently Asked Questions: click here to check

-
+
$10,120.00

The price includes TAX & shipping

Wish List
Email
We found other products you might like!

Technical specifications:

  • frame depth door: 78 mm / 3.1",
  • Depth Vent: 78 mm / 3.1"
  • Air tightness: Class 4 (600Pa)
  • Wind load resistance: Class C3 (1200Pa)
  • Water tightness: Class 4A (150Pa)
  • Opening & closing resistance: Class 5
  • standard glazing package 4th/16Ar/4/16Ar/4th [Ug=0,6]*
  • Burglar resistance: RC2
  • Thermal insulation: Ud = 0.83 W/K*m2 / R-Value 6.8

The door set includes:

  • Aluminium pivot door and the door frame;
  • the door handle;
  • FUHR 833 3-point lock
  • low threshold door
  • standard lock insert with 5 keys.
Pivot door in full glass version

Pivot door with an aluminum overlay panel

Glazing

The glass in our doors are triple-pane windows. All panes are connected with spacer frames. Two of them are covered with Low-E coatings that provide natural light while helping to limit heat gain and thermal energy loss. It is also possible to choose P4 anti-burglary glass or safety glass VSG 33.1

standard glazing package 4th/16Ar/4/16Ar/4th

safety glass 33.1//4//4

P4 anti-burglary

Types of glazing

There is a wide range of glass options. In our offer one will find energy-saving, sound-absorbing, safety, anti-burglary and sunscreen windows. The most popular ones are milk glass, decorative or mirror glass as well as bronze reflex glass.

Colours

Colours can emphasise the shape of aluminium joinery and provide it with individual character and genuine appearance. All aluminium systems offered are available in two colour palettes – RAL and DECORAL.
RAL Basic colour palette.

Fiery red or maybe a delicate blue? The RAL K5 Classic colour palette will allow you to choose the colour of the door perfectly suited to your requirements!



RAL 1003

RAL 2004

RAL 3020

RAL 5002

RAL 6005

RAL 6021

RAL 7016

RAL 7039

RAL 7040

RAL 9016

RAL 9005

RAL 9007

Touch line handles

Touch line handles are made of the highest quality materials. They are available in anodized versions (covered with a layer of aluminum oxide) and powder coated in the entire range of the RAL palette (400 + colors).

Sublime, timeless design makes these elegant handles emphasize the appearance of each door.

T-bar - long vertical handle or normal handle:

Stainless steel door handles are designed for one or two-sided use for external doors.
The innovative mounting system enables quick and easy installation of the door handle. Our offer includes many handrails:




Q10
T-bar with a square section of 40×40 mm / 1.6"x1.6".
Available in lengths: 1200 / 47.2", 1600 / 63", 1800 mm / 70.9".

Q45
T-bar at an angle of 45 degrees with a square section of 40 × 40 mm / 1.6"x1.6"
Available in lengths: 1200 / 47.2", 1600 / 63", 1800 mm / 70.9".

P10
T-bar with a round cross-section ⌀ 40 mm / 1.6" .
Available in lengths: 1200 / 47.2", 1600 / 63", 1800 mm / 70.9"

P45
T-bar at an angle of 45 degrees with a round cross-section ⌀ 40 mm / 1.6".
Available in lengths: 1200 / 47.2", 1600 / 63", 1800 mm / 70.9".

Z18
Black, designer handle.
Available in length 480 mm / 18.9".

Z20
Black T-bar with an interesting design
Available in length 498 mm / 19.6".

Z32
Black T-bar with an interesting curve that can also be used for all-glass doors
Available in length 499 mm / 19.6".

Z24
Black, oval handle
Width 450 mm/ 17.7"

Z52
T-bar round z52 copper
⌀ 198 mm / 7.8"

Z53
T-bar round z53 silvershine
⌀ 198 mm / 7.8"

Z54
T-bar round z54 slivergalaxy
⌀ 198 mm / 7.8"

Recessed
T-bar recessed
Available in lengths: 1200 mm / 47.2" and 1800 mm / 70.9"

Multipoint locking system Fuhr 835

Automatic multipoint locking system with a deadlocking latch.

Fuhr lock is the excellent locking system that guarantees comfort as well as security. The lock function ensures reliable, automatic locking and protection against uninvited guests. All you have to do is pull the door closed.

After closing the door, our three-point locking system protects against door warping, offering long-lasting seal tightness and a thermal efficiency.



The most important features:

Increased security – due to automatic locking there is no need for conventional locking with using a key.

Convenient opening – Effortless key operation thanks to two-stage opening sequence from the outside or using the lever handle from the inside.

Increased heat insulation – The multipoint locking system prevents the door from warping to ensure consistent seal tightness around the whole door leaf/slab.

Reliability and durability – long service life is guaranteed and has been tested with over 200,000 cycles.



Locking the lock:
  • After closing the door, the latch in the main lock and additional bolts automatically lock the door.
  • A single turn of the key causes the bolt of the main lock to be activated.
Unlocking the lock:
  • Turning the key once withdraws both lock and bolts. Pressing the handle down causes the latch to be automatically released and allows to open the door.



Class A insert 6.D.C cylinder with keys

Durability: 100 000 cycles
Security rating: Class 6 the highest
Attack resistance: Class D the highest
Burglar resistance: Class C the highest

Certified, cylindrical, profiled 9-ratchet insert (two rows of latches). Innovative anti-drill and anti-picking protection. Inserts resistant to bumping. 5 keys included, key code card.

Write Your Own Review
You're reviewing:PIVOT AP15 - aluminium unique pivot front door
Your Rating

The PIVOT AP15 is a cutting-edge aluminum pivot front door that redefines modern entrance design by combining innovative functionality, striking aesthetics, and exceptional durability. Crafted with precision from high-quality aluminum, this unique pivot door offers an impressive statement piece for residential and commercial properties seeking to elevate their curb appeal with a bold, contemporary architectural feature. Its seamless blend of style and performance makes the PIVOT AP15 an ideal choice for those who desire a front entrance that is as visually captivating as it is functional.

Engineered around a sophisticated pivot hinge system, the PIVOT AP15 door rotates smoothly around a central vertical axis rather than swinging on traditional side hinges. This design not only creates a dramatic and elegant entry experience but also allows for larger door panels and wider openings without the limitations of conventional door frames. The pivot mechanism is precision-engineered for effortless operation and long-lasting reliability, ensuring that the door glides open and closed with minimal effort while maintaining perfect alignment and balance.

The robust aluminum construction of the PIVOT AP15 guarantees exceptional strength and resilience. Aluminum’s natural resistance to corrosion, rust, and weathering ensures the door remains pristine and fully functional even in harsh environmental conditions, requiring minimal maintenance over time. The door’s structural core is reinforced to provide superior stability and security, making it a practical choice for high-traffic entrances and areas demanding both aesthetic appeal and performance.

In addition to its mechanical innovation, the PIVOT AP15 excels in customization and design versatility. The aluminum surface can be finished with a variety of premium coatings and textures, including powder coating and anodized finishes, available in an extensive palette of colors to complement any architectural style—whether minimalist, industrial, or avant-garde. The door’s clean lines, sleek profile, and minimalist hardware contribute to a sophisticated, modern look that enhances the overall façade.

Impressively, the PIVOT AP15 also addresses key functional considerations such as insulation and security. Integrated thermal breaks within the frame minimize heat transfer, boosting energy efficiency and helping maintain comfortable indoor temperatures year-round. Weather seals and precision engineering prevent drafts, water infiltration, and noise intrusion, creating a protected and quiet interior environment. For enhanced security, the door can be fitted with advanced locking systems and reinforced hardware tailored to meet stringent safety requirements, ensuring both peace of mind and robust protection.

For those seeking to incorporate natural light without sacrificing privacy or security, the PIVOT AP15 can be customized with impact-resistant or laminated glass panels, allowing natural illumination to flood entryways while maintaining strength and durability. This feature not only enhances the door’s visual appeal but also improves the ambiance of interior spaces.

Installation of the PIVOT AP15 is handled by skilled professionals who ensure the pivot mechanism is precisely calibrated and the door is perfectly aligned for smooth, reliable operation. Proper installation is crucial to maximize the door’s performance, security, and longevity.

In summary, the PIVOT AP15 aluminum unique pivot front door is a remarkable fusion of innovative design, structural excellence, and customizable style. Its distinctive pivot operation, durable aluminum build, and elegant finishes make it a standout centerpiece for any modern architectural project. With the PIVOT AP15, property owners can enjoy an entrance that is not only visually stunning and highly functional but also built to last, delivering an exceptional first impression and lasting value.
