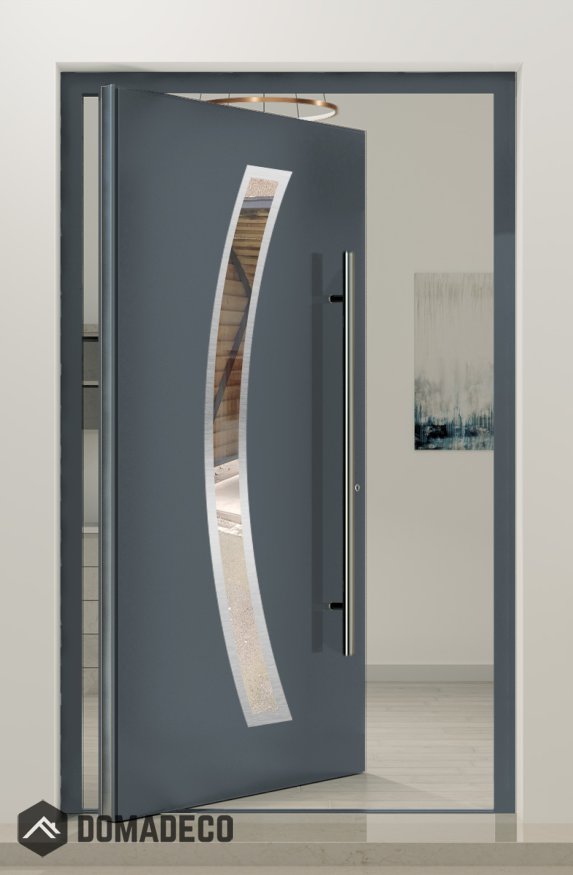

PIVOT Bumerang - aluminium glass main door pivot door

SKU
PIVOT Bumerang
Rating:
100 % of 100
1  Review Add Your Review
AVAILABLE
$10,120.00

The price includes TAX & shipping

Click here to select the configuration

Doors are manufactured after the order has been placed through the website.
Production time for our doors:
door named PIVOT (aluminum) - production takes 6 weeks

Size pivot door with frame:
Width from: 55.1" to 78"
Height from: 78.7" to 116"

Available door colors:
anthracite, white, black, silver gray, red, blue, yellow, brown, green, walnut, wenge, golden oak, mahogany, custom from RAL palette

You can order this door model in a bigger size. View LIM 21A

Technical specifications

Air tightness max. test pressure 4 (600 Pa)
Water tightness 4A (150 Pa)
Wind load resistance C3 (1200 Pa)
Burglar resistance RC2/WK2
Thermal insulation R-Value 6.8

The door set includes:

- Aluminum pivot door and the door frame;
- the door handle;
- FUHR 835 4-point lock
- low threshold door
- Standard lock insert with 5 keys.

Full door information

The door is already mounted onto the frame (prehung door), which saves you all the work. The door is completely ready for installation.

The picture showing how to take the measurement. Click here
The installation space between the frame and the wall can be between 0.2" to 0.8" on each side
Frequently Asked Questions: click here to check

-
+
$10,120.00

The price includes TAX & shipping

Wish List
Email
We found other products you might like!

Technical specifications:

  • frame depth door: 78 mm / 3.1",
  • Depth Vent: 78 mm / 3.1"
  • Air tightness: Class 4 (600Pa)
  • Wind load resistance: Class C3 (1200Pa)
  • Water tightness: Class 4A (150Pa)
  • Opening & closing resistance: Class 5
  • standard glazing package 4th/16Ar/4/16Ar/4th [Ug=0,6]*
  • Burglar resistance: RC2
  • Thermal insulation: Ud = 0.83 W/K*m2 / R-Value 6.8

The door set includes:

  • Aluminium pivot door and the door frame;
  • the door handle;
  • FUHR 833 3-point lock
  • low threshold door
  • standard lock insert with 5 keys.
Pivot door in full glass version

Pivot door with an aluminum overlay panel

Glazing

The glass in our doors are triple-pane windows. All panes are connected with spacer frames. Two of them are covered with Low-E coatings that provide natural light while helping to limit heat gain and thermal energy loss. It is also possible to choose P4 anti-burglary glass or safety glass VSG 33.1

standard glazing package 4th/16Ar/4/16Ar/4th

safety glass 33.1//4//4

P4 anti-burglary

Types of glazing

There is a wide range of glass options. In our offer one will find energy-saving, sound-absorbing, safety, anti-burglary and sunscreen windows. The most popular ones are milk glass, decorative or mirror glass as well as bronze reflex glass.

Colours

Colours can emphasise the shape of aluminium joinery and provide it with individual character and genuine appearance. All aluminium systems offered are available in two colour palettes – RAL and DECORAL.
RAL Basic colour palette.

Fiery red or maybe a delicate blue? The RAL K5 Classic colour palette will allow you to choose the colour of the door perfectly suited to your requirements!



RAL 1003

RAL 2004

RAL 3020

RAL 5002

RAL 6005

RAL 6021

RAL 7016

RAL 7039

RAL 7040

RAL 9016

RAL 9005

RAL 9007

Touch line handles

Touch line handles are made of the highest quality materials. They are available in anodized versions (covered with a layer of aluminum oxide) and powder coated in the entire range of the RAL palette (400 + colors).

Sublime, timeless design makes these elegant handles emphasize the appearance of each door.

T-bar - long vertical handle or normal handle:

Stainless steel door handles are designed for one or two-sided use for external doors.
The innovative mounting system enables quick and easy installation of the door handle. Our offer includes many handrails:




Q10
T-bar with a square section of 40×40 mm / 1.6"x1.6".
Available in lengths: 1200 / 47.2", 1600 / 63", 1800 mm / 70.9".

Q45
T-bar at an angle of 45 degrees with a square section of 40 × 40 mm / 1.6"x1.6"
Available in lengths: 1200 / 47.2", 1600 / 63", 1800 mm / 70.9".

P10
T-bar with a round cross-section ⌀ 40 mm / 1.6" .
Available in lengths: 1200 / 47.2", 1600 / 63", 1800 mm / 70.9"

P45
T-bar at an angle of 45 degrees with a round cross-section ⌀ 40 mm / 1.6".
Available in lengths: 1200 / 47.2", 1600 / 63", 1800 mm / 70.9".

Z18
Black, designer handle.
Available in length 480 mm / 18.9".

Z20
Black T-bar with an interesting design
Available in length 498 mm / 19.6".

Z32
Black T-bar with an interesting curve that can also be used for all-glass doors
Available in length 499 mm / 19.6".

Z24
Black, oval handle
Width 450 mm/ 17.7"

Z52
T-bar round z52 copper
⌀ 198 mm / 7.8"

Z53
T-bar round z53 silvershine
⌀ 198 mm / 7.8"

Z54
T-bar round z54 slivergalaxy
⌀ 198 mm / 7.8"

Recessed
T-bar recessed
Available in lengths: 1200 mm / 47.2" and 1800 mm / 70.9"

Multipoint locking system Fuhr 835

Automatic multipoint locking system with a deadlocking latch.

Fuhr lock is the excellent locking system that guarantees comfort as well as security. The lock function ensures reliable, automatic locking and protection against uninvited guests. All you have to do is pull the door closed.

After closing the door, our three-point locking system protects against door warping, offering long-lasting seal tightness and a thermal efficiency.



The most important features:

Increased security – due to automatic locking there is no need for conventional locking with using a key.

Convenient opening – Effortless key operation thanks to two-stage opening sequence from the outside or using the lever handle from the inside.

Increased heat insulation – The multipoint locking system prevents the door from warping to ensure consistent seal tightness around the whole door leaf/slab.

Reliability and durability – long service life is guaranteed and has been tested with over 200,000 cycles.



Locking the lock:
  • After closing the door, the latch in the main lock and additional bolts automatically lock the door.
  • A single turn of the key causes the bolt of the main lock to be activated.
Unlocking the lock:
  • Turning the key once withdraws both lock and bolts. Pressing the handle down causes the latch to be automatically released and allows to open the door.



Class A insert 6.D.C cylinder with keys

Durability: 100 000 cycles
Security rating: Class 6 the highest
Attack resistance: Class D the highest
Burglar resistance: Class C the highest

Certified, cylindrical, profiled 9-ratchet insert (two rows of latches). Innovative anti-drill and anti-picking protection. Inserts resistant to bumping. 5 keys included, key code card.

Write Your Own Review
You're reviewing:PIVOT Bumerang - aluminium glass main door pivot door
Your Rating

The PIVOT Bumerang aluminum glass main door is a striking fusion of modern design and engineering excellence, crafted to serve as a bold centerpiece for contemporary luxury homes and commercial spaces. This pivot door redefines the entrance experience by combining sleek aesthetics, premium materials, and innovative functionality, delivering a statement-making solution that enhances curb appeal while offering exceptional performance and durability.

At the core of the PIVOT Bumerang door is its sophisticated pivot mechanism, which allows the door to rotate smoothly around a central or offset pivot point rather than traditional side hinges. This unique operation not only creates a dramatic and elegant entrance but also maximizes spatial efficiency, enabling larger and heavier door panels to be installed without compromising ease of use. The pivot system is engineered for precision and longevity, providing effortless movement and reliable stability for years, making it an ideal choice for grand entryways and high-traffic areas.

Constructed from high-grade aluminum, the PIVOT Bumerang door boasts outstanding strength and resilience. Aluminum’s lightweight yet robust nature ensures the door can accommodate expansive glass panels while maintaining structural integrity. This enables the creation of expansive views and ample natural light, fostering a seamless connection between indoor and outdoor environments—a defining characteristic of modern architecture. Additionally, aluminum’s inherent resistance to corrosion and weathering guarantees that the door maintains its pristine appearance and functionality even in challenging climates.

The PIVOT Bumerang door features large, expertly crafted glass panels that not only enhance visual appeal but also contribute to energy efficiency and comfort. Utilizing double or triple-glazed insulated glass with low-emissivity coatings, these doors reduce heat transfer and help maintain consistent indoor temperatures. The glazing options also provide excellent sound insulation and UV protection, ensuring a peaceful and protected interior while allowing abundant natural light to flood the space.

The minimalist and contemporary design of the PIVOT Bumerang door can be fully customized to complement the architectural style of any luxury residence or commercial building. Available in a broad spectrum of finishes, colors, and hardware configurations, this door adapts seamlessly to various design themes—from ultra-modern and industrial to sleek and sophisticated. The clean lines and refined profiles contribute to a timeless aesthetic that elevates any entryway into a work of art.

Security and functionality are paramount in the PIVOT Bumerang door’s design. It incorporates advanced locking mechanisms and reinforced hardware to ensure maximum safety without sacrificing style. The smooth pivot action combined with high-quality seals also provides excellent protection against drafts, water infiltration, and external noise, enhancing overall comfort and security for the occupants.

Maintenance requirements are minimal thanks to the durable aluminum frame and high-quality glass, both of which resist fading, corrosion, and wear. Simple cleaning routines are sufficient to keep the door looking immaculate and functioning flawlessly over time, making it a practical and long-lasting investment.

In summary, the PIVOT Bumerang aluminum glass main door is an exceptional architectural element that combines innovative pivot technology, premium materials, and customizable design to create a stunning and functional entrance solution. Perfect for those who seek to make a grand impression while benefiting from durability, energy efficiency, and ease of operation, this door transforms any space into a modern masterpiece that welcomes guests with style and sophistication. Choosing the PIVOT Bumerang means embracing a door that is as much a work of art as it is a high-performance entryway.
