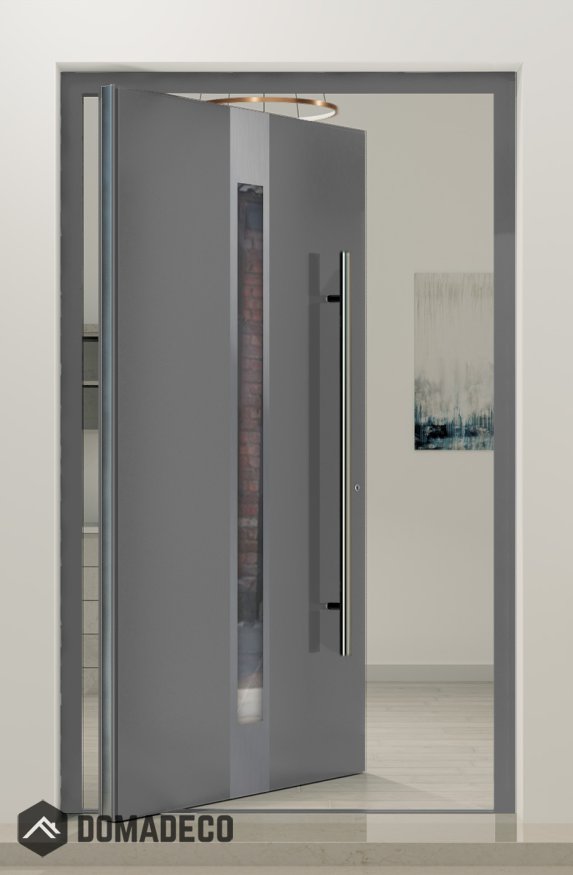

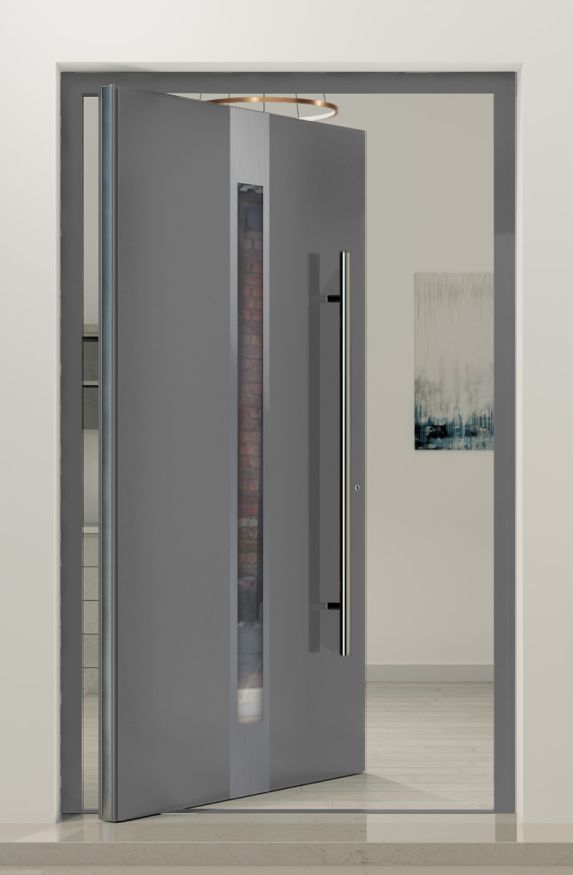

PIVOT C1 - modern aluminum pivot door for home

SKU
PIVOT C1
Rating:
100 % of 100
1  Review Add Your Review
AVAILABLE
$10,120.00

The price includes TAX & shipping

Click here to select the configuration

Doors are manufactured after the order has been placed through the website.
Production time for our doors:
door named PIVOT (aluminum) - production takes 6 weeks

Size pivot door with frame:
Width from: 55.1" to 78"
Height from: 78.7" to 116"

Available door colors:
anthracite, white, black, silver gray, red, blue, yellow, brown, green, walnut, wenge, golden oak, mahogany, custom from RAL palette

You can order this door model in a smaller size. View LIM C1

Technical specifications

Air tightness max. test pressure 4 (600 Pa)
Water tightness 4A (150 Pa)
Wind load resistance C3 (1200 Pa)
Burglar resistance RC2/WK2
Thermal insulation R-Value 6.8

The door set includes:

- Aluminum pivot door and the door frame;
- the door handle;
- FUHR 835 4-point lock
- low threshold door
- Standard lock insert with 5 keys.

Full door information

The door is already mounted onto the frame (prehung door), which saves you all the work. The door is completely ready for installation.

The picture showing how to take the measurement. Click here
The installation space between the frame and the wall can be between 0.2" to 0.8" on each side
Frequently Asked Questions: click here to check

-
+
$10,120.00

The price includes TAX & shipping

Wish List
Email
We found other products you might like!

Technical specifications:

  • frame depth door: 78 mm / 3.1",
  • Depth Vent: 78 mm / 3.1"
  • Air tightness: Class 4 (600Pa)
  • Wind load resistance: Class C3 (1200Pa)
  • Water tightness: Class 4A (150Pa)
  • Opening & closing resistance: Class 5
  • standard glazing package 4th/16Ar/4/16Ar/4th [Ug=0,6]*
  • Burglar resistance: RC2
  • Thermal insulation: Ud = 0.83 W/K*m2 / R-Value 6.8

The door set includes:

  • Aluminium pivot door and the door frame;
  • the door handle;
  • FUHR 833 3-point lock
  • low threshold door
  • standard lock insert with 5 keys.
Pivot door in full glass version

Pivot door with an aluminum overlay panel

Glazing

The glass in our doors are triple-pane windows. All panes are connected with spacer frames. Two of them are covered with Low-E coatings that provide natural light while helping to limit heat gain and thermal energy loss. It is also possible to choose P4 anti-burglary glass or safety glass VSG 33.1

standard glazing package 4th/16Ar/4/16Ar/4th

safety glass 33.1//4//4

P4 anti-burglary

Types of glazing

There is a wide range of glass options. In our offer one will find energy-saving, sound-absorbing, safety, anti-burglary and sunscreen windows. The most popular ones are milk glass, decorative or mirror glass as well as bronze reflex glass.

Colours

Colours can emphasise the shape of aluminium joinery and provide it with individual character and genuine appearance. All aluminium systems offered are available in two colour palettes – RAL and DECORAL.
RAL Basic colour palette.

Fiery red or maybe a delicate blue? The RAL K5 Classic colour palette will allow you to choose the colour of the door perfectly suited to your requirements!



RAL 1003

RAL 2004

RAL 3020

RAL 5002

RAL 6005

RAL 6021

RAL 7016

RAL 7039

RAL 7040

RAL 9016

RAL 9005

RAL 9007

Touch line handles

Touch line handles are made of the highest quality materials. They are available in anodized versions (covered with a layer of aluminum oxide) and powder coated in the entire range of the RAL palette (400 + colors).

Sublime, timeless design makes these elegant handles emphasize the appearance of each door.

T-bar - long vertical handle or normal handle:

Stainless steel door handles are designed for one or two-sided use for external doors.
The innovative mounting system enables quick and easy installation of the door handle. Our offer includes many handrails:




Q10
T-bar with a square section of 40×40 mm / 1.6"x1.6".
Available in lengths: 1200 / 47.2", 1600 / 63", 1800 mm / 70.9".

Q45
T-bar at an angle of 45 degrees with a square section of 40 × 40 mm / 1.6"x1.6"
Available in lengths: 1200 / 47.2", 1600 / 63", 1800 mm / 70.9".

P10
T-bar with a round cross-section ⌀ 40 mm / 1.6" .
Available in lengths: 1200 / 47.2", 1600 / 63", 1800 mm / 70.9"

P45
T-bar at an angle of 45 degrees with a round cross-section ⌀ 40 mm / 1.6".
Available in lengths: 1200 / 47.2", 1600 / 63", 1800 mm / 70.9".

Z18
Black, designer handle.
Available in length 480 mm / 18.9".

Z20
Black T-bar with an interesting design
Available in length 498 mm / 19.6".

Z32
Black T-bar with an interesting curve that can also be used for all-glass doors
Available in length 499 mm / 19.6".

Z24
Black, oval handle
Width 450 mm/ 17.7"

Z52
T-bar round z52 copper
⌀ 198 mm / 7.8"

Z53
T-bar round z53 silvershine
⌀ 198 mm / 7.8"

Z54
T-bar round z54 slivergalaxy
⌀ 198 mm / 7.8"

Recessed
T-bar recessed
Available in lengths: 1200 mm / 47.2" and 1800 mm / 70.9"

Multipoint locking system Fuhr 835

Automatic multipoint locking system with a deadlocking latch.

Fuhr lock is the excellent locking system that guarantees comfort as well as security. The lock function ensures reliable, automatic locking and protection against uninvited guests. All you have to do is pull the door closed.

After closing the door, our three-point locking system protects against door warping, offering long-lasting seal tightness and a thermal efficiency.



The most important features:

Increased security – due to automatic locking there is no need for conventional locking with using a key.

Convenient opening – Effortless key operation thanks to two-stage opening sequence from the outside or using the lever handle from the inside.

Increased heat insulation – The multipoint locking system prevents the door from warping to ensure consistent seal tightness around the whole door leaf/slab.

Reliability and durability – long service life is guaranteed and has been tested with over 200,000 cycles.



Locking the lock:
  • After closing the door, the latch in the main lock and additional bolts automatically lock the door.
  • A single turn of the key causes the bolt of the main lock to be activated.
Unlocking the lock:
  • Turning the key once withdraws both lock and bolts. Pressing the handle down causes the latch to be automatically released and allows to open the door.



Class A insert 6.D.C cylinder with keys

Durability: 100 000 cycles
Security rating: Class 6 the highest
Attack resistance: Class D the highest
Burglar resistance: Class C the highest

Certified, cylindrical, profiled 9-ratchet insert (two rows of latches). Innovative anti-drill and anti-picking protection. Inserts resistant to bumping. 5 keys included, key code card.

Write Your Own Review
You're reviewing:PIVOT C1 - modern aluminum pivot door for home
Your Rating

The PIVOT C1 is a modern aluminum pivot door meticulously designed to bring a perfect blend of contemporary style, superior functionality, and lasting durability to residential spaces. Crafted with precision and innovation, this door offers homeowners an elegant and practical solution for creating a striking entrance that enhances the architectural character of any modern home. Whether used as a primary front door or as a bold interior partition, the PIVOT C1 stands out for its sleek aesthetics, smooth operation, and robust construction, making it an ideal choice for discerning homeowners and designers seeking to elevate living spaces with a sophisticated pivot door system.

At the heart of the PIVOT C1’s appeal is its advanced pivot mechanism, which allows the door to rotate effortlessly around a vertical pivot point rather than swinging on traditional side hinges. This pivot design not only facilitates a unique and dramatic opening experience but also enables the door to support larger and heavier panels that would be difficult to manage with conventional door hardware. The precise engineering behind the pivot system ensures smooth, balanced movement with minimal effort, enhancing both the usability and visual impact of the door. This creates an inviting and spacious entryway that effortlessly blends function with architectural artistry.

Constructed from high-quality aluminum, the PIVOT C1 offers exceptional strength and stability while maintaining a lightweight profile. Aluminum is renowned for its resistance to corrosion, weathering, and wear, making it an ideal material for exterior doors exposed to the elements. The door’s aluminum frame is expertly finished with a durable coating that not only protects against scratches and environmental damage but also provides a sleek, modern appearance that complements a wide range of home styles—from minimalist and contemporary to industrial chic. The clean lines and slim profiles of the door frame maximize the glass area, allowing for expansive views and an abundance of natural light to flow into the home, thereby creating a bright and welcoming interior atmosphere.

The PIVOT C1 is highly customizable to suit individual design preferences and functional requirements. Homeowners and architects can choose from a variety of finishes, colors, and hardware options to create a personalized entrance that aligns perfectly with the home’s overall aesthetic. Additionally, the door can be fitted with various glazing options, including energy-efficient double or triple-pane glass with low-emissivity coatings, to enhance thermal insulation and soundproofing. This not only improves the home’s energy performance—reducing heating and cooling costs—but also contributes to a quieter, more comfortable living environment.

Security and durability are key priorities in the design of the PIVOT C1. The door is equipped with a high-quality pivot hardware system engineered to withstand frequent use while maintaining flawless operation. Its robust locking mechanisms offer enhanced protection against unauthorized entry, providing peace of mind without compromising style. Optional safety glass variants such as laminated or tempered glass further elevate the door’s security profile, ensuring that safety is never sacrificed for design.

Installation of the PIVOT C1 is streamlined through thoughtfully engineered components and professional guidance, ensuring precise alignment and optimal performance. The door’s design also facilitates easy maintenance, with materials and finishes selected to minimize upkeep demands and preserve the door’s pristine appearance over time.

In summary, the PIVOT C1 modern aluminum pivot door is an outstanding choice for homeowners seeking a stylish, durable, and highly functional entrance solution. Its innovative pivot mechanism, premium aluminum construction, customizable design options, and superior energy efficiency combine to create a door that not only enhances curb appeal but also improves everyday living comfort and security. With the PIVOT C1, modern homes gain a sophisticated architectural feature that stands the test of time, making a bold statement in contemporary design while delivering exceptional performance.
