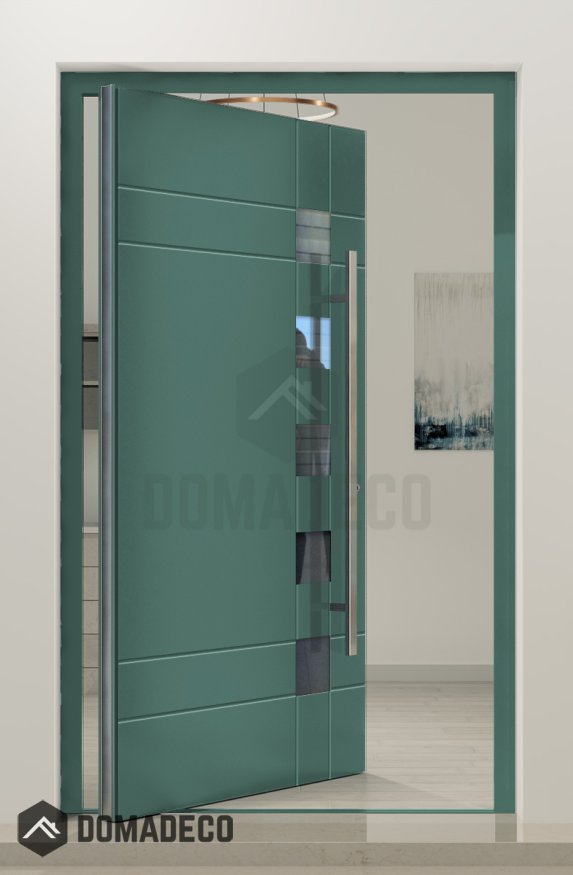

PIVOT C23 - slim frame aluminum pivot front door with five glass

SKU
PIVOT C23
Be the first to review this product
AVAILABLE
$10,120.00

The price includes TAX & shipping

Click here to select the configuration

Doors are manufactured after the order has been placed through the website.
Production time for our doors:
door named PIVOT (aluminum) - production takes 6 weeks

Size pivot door with frame:
Width from: 55.1" to 78"
Height from: 78.7" to 116"

Available door colors:
anthracite, white, black, silver gray, red, blue, yellow, brown, green, walnut, wenge, golden oak, mahogany, custom from RAL palette

You can order this door model in a smaller size. View LIM C23

Technical specifications

Air tightness max. test pressure 4 (600 Pa)
Water tightness 4A (150 Pa)
Wind load resistance C3 (1200 Pa)
Burglar resistance RC2/WK2
Thermal insulation R-Value 6.8

The door set includes:

- Aluminum pivot door and the door frame;
- the door handle;
- FUHR 835 4-point lock
- low threshold door
- Standard lock insert with 5 keys.

Full door information

The door is already mounted onto the frame (prehung door), which saves you all the work. The door is completely ready for installation.

The picture showing how to take the measurement. Click here
The installation space between the frame and the wall can be between 0.2" to 0.8" on each side
Frequently Asked Questions: click here to check

-
+
$10,120.00

The price includes TAX & shipping

Wish List
Email
We found other products you might like!

Technical specifications:

  • frame depth door: 78 mm / 3.1",
  • Depth Vent: 78 mm / 3.1"
  • Air tightness: Class 4 (600Pa)
  • Wind load resistance: Class C3 (1200Pa)
  • Water tightness: Class 4A (150Pa)
  • Opening & closing resistance: Class 5
  • standard glazing package 4th/16Ar/4/16Ar/4th [Ug=0,6]*
  • Burglar resistance: RC2
  • Thermal insulation: Ud = 0.83 W/K*m2 / R-Value 6.8

The door set includes:

  • Aluminium pivot door and the door frame;
  • the door handle;
  • FUHR 833 3-point lock
  • low threshold door
  • standard lock insert with 5 keys.
Pivot door in full glass version

Pivot door with an aluminum overlay panel

Glazing

The glass in our doors are triple-pane windows. All panes are connected with spacer frames. Two of them are covered with Low-E coatings that provide natural light while helping to limit heat gain and thermal energy loss. It is also possible to choose P4 anti-burglary glass or safety glass VSG 33.1

standard glazing package 4th/16Ar/4/16Ar/4th

safety glass 33.1//4//4

P4 anti-burglary

Types of glazing

There is a wide range of glass options. In our offer one will find energy-saving, sound-absorbing, safety, anti-burglary and sunscreen windows. The most popular ones are milk glass, decorative or mirror glass as well as bronze reflex glass.

Colours

Colours can emphasise the shape of aluminium joinery and provide it with individual character and genuine appearance. All aluminium systems offered are available in two colour palettes – RAL and DECORAL.
RAL Basic colour palette.

Fiery red or maybe a delicate blue? The RAL K5 Classic colour palette will allow you to choose the colour of the door perfectly suited to your requirements!



RAL 1003

RAL 2004

RAL 3020

RAL 5002

RAL 6005

RAL 6021

RAL 7016

RAL 7039

RAL 7040

RAL 9016

RAL 9005

RAL 9007

Touch line handles

Touch line handles are made of the highest quality materials. They are available in anodized versions (covered with a layer of aluminum oxide) and powder coated in the entire range of the RAL palette (400 + colors).

Sublime, timeless design makes these elegant handles emphasize the appearance of each door.

T-bar - long vertical handle or normal handle:

Stainless steel door handles are designed for one or two-sided use for external doors.
The innovative mounting system enables quick and easy installation of the door handle. Our offer includes many handrails:




Q10
T-bar with a square section of 40×40 mm / 1.6"x1.6".
Available in lengths: 1200 / 47.2", 1600 / 63", 1800 mm / 70.9".

Q45
T-bar at an angle of 45 degrees with a square section of 40 × 40 mm / 1.6"x1.6"
Available in lengths: 1200 / 47.2", 1600 / 63", 1800 mm / 70.9".

P10
T-bar with a round cross-section ⌀ 40 mm / 1.6" .
Available in lengths: 1200 / 47.2", 1600 / 63", 1800 mm / 70.9"

P45
T-bar at an angle of 45 degrees with a round cross-section ⌀ 40 mm / 1.6".
Available in lengths: 1200 / 47.2", 1600 / 63", 1800 mm / 70.9".

Z18
Black, designer handle.
Available in length 480 mm / 18.9".

Z20
Black T-bar with an interesting design
Available in length 498 mm / 19.6".

Z32
Black T-bar with an interesting curve that can also be used for all-glass doors
Available in length 499 mm / 19.6".

Z24
Black, oval handle
Width 450 mm/ 17.7"

Z52
T-bar round z52 copper
⌀ 198 mm / 7.8"

Z53
T-bar round z53 silvershine
⌀ 198 mm / 7.8"

Z54
T-bar round z54 slivergalaxy
⌀ 198 mm / 7.8"

Recessed
T-bar recessed
Available in lengths: 1200 mm / 47.2" and 1800 mm / 70.9"

Multipoint locking system Fuhr 835

Automatic multipoint locking system with a deadlocking latch.

Fuhr lock is the excellent locking system that guarantees comfort as well as security. The lock function ensures reliable, automatic locking and protection against uninvited guests. All you have to do is pull the door closed.

After closing the door, our three-point locking system protects against door warping, offering long-lasting seal tightness and a thermal efficiency.



The most important features:

Increased security – due to automatic locking there is no need for conventional locking with using a key.

Convenient opening – Effortless key operation thanks to two-stage opening sequence from the outside or using the lever handle from the inside.

Increased heat insulation – The multipoint locking system prevents the door from warping to ensure consistent seal tightness around the whole door leaf/slab.

Reliability and durability – long service life is guaranteed and has been tested with over 200,000 cycles.



Locking the lock:
  • After closing the door, the latch in the main lock and additional bolts automatically lock the door.
  • A single turn of the key causes the bolt of the main lock to be activated.
Unlocking the lock:
  • Turning the key once withdraws both lock and bolts. Pressing the handle down causes the latch to be automatically released and allows to open the door.



Class A insert 6.D.C cylinder with keys

Durability: 100 000 cycles
Security rating: Class 6 the highest
Attack resistance: Class D the highest
Burglar resistance: Class C the highest

Certified, cylindrical, profiled 9-ratchet insert (two rows of latches). Innovative anti-drill and anti-picking protection. Inserts resistant to bumping. 5 keys included, key code card.

Write Your Own Review
You're reviewing:PIVOT C23 - slim frame aluminum pivot front door with five glass
Your Rating

The PIVOT C23 is a strikingly modern slim frame aluminum pivot front door that perfectly blends contemporary aesthetics with innovative engineering, creating a bold and sophisticated entrance solution for residential and commercial spaces alike. Designed to make a powerful architectural statement, this door features a sleek, narrow aluminum frame that maximizes the use of glass, offering a seamless connection between indoor and outdoor environments while delivering exceptional durability and functionality.

At the core of the PIVOT C23’s design is its unique pivot mechanism, which allows the door to swing open smoothly on a central vertical axis rather than traditional side hinges. This pivot system not only enhances the door’s visual appeal by creating a clean, minimalist look but also provides greater flexibility in operation, making it ideal for both tight and expansive entryways. The pivot hinge is engineered for superior stability and longevity, ensuring effortless movement and reliable performance even with frequent use.

Constructed from premium-grade aluminum, the slim frame of the PIVOT C23 is lightweight yet remarkably strong, offering excellent resistance against corrosion, warping, and the effects of extreme weather. This ensures that the door maintains its sleek appearance and structural integrity over time with minimal maintenance. The slim profile of the frame allows for expansive glass panels that flood interior spaces with natural light, enhancing the sense of openness and modernity throughout the home or building.

The PIVOT C23 is distinguished by its five glass panels, which are expertly integrated into the door’s design to create a stunning visual rhythm and architectural interest. These glass sections are crafted using high-performance, multi-layered, tempered, and insulated glazing technology that delivers outstanding thermal insulation, soundproofing, and security. The glass can be customized with a variety of finishes such as frosted, tinted, or textured options to meet privacy needs while still maintaining an airy, light-filled ambiance. This combination of expansive glass and slim framing achieves a perfect balance between transparency and privacy, making it an ideal feature for modern living spaces.

Security is a paramount consideration in the PIVOT C23. The door is equipped with advanced locking systems and reinforced pivot hardware designed to resist forced entry and provide a secure barrier against intruders. The tempered glass panels are shatter-resistant, further enhancing the door’s protective capabilities. Together, these features provide peace of mind without sacrificing style or openness.

Energy efficiency is another key benefit of the PIVOT C23. The insulated glazing and tight sealing of the slim aluminum frame help minimize heat transfer, reducing energy consumption and improving indoor comfort year-round. This makes the door an environmentally responsible choice that aligns with sustainable building practices and modern energy standards.

Installation of the PIVOT C23 is streamlined through precision engineering and customizable sizing options, allowing it to integrate seamlessly into a variety of architectural applications. Its minimalist design complements a wide range of styles, from ultra-modern urban homes to contemporary commercial buildings, elevating the entrance with its clean lines and elegant pivot action.

Additionally, the PIVOT C23 offers extensive customization possibilities. Clients can select from a broad palette of colors and finishes for the aluminum frame, as well as various hardware styles and finishes to perfectly match the overall design scheme. This flexibility makes it easy to create a personalized entrance that reflects individual taste and enhances the property’s curb appeal.

In summary, the PIVOT C23 slim frame aluminum pivot front door with five glass panels is a masterful blend of modern design, innovative mechanics, and high-performance materials. It delivers a visually captivating, light-filled entryway that stands out with its sleek profile and smooth pivot operation while offering superior security, durability, and energy efficiency. For those seeking a statement-making front door that combines elegance with cutting-edge functionality, the PIVOT C23 is an exceptional choice that transforms any entrance into a showcase of contemporary style and sophistication.
