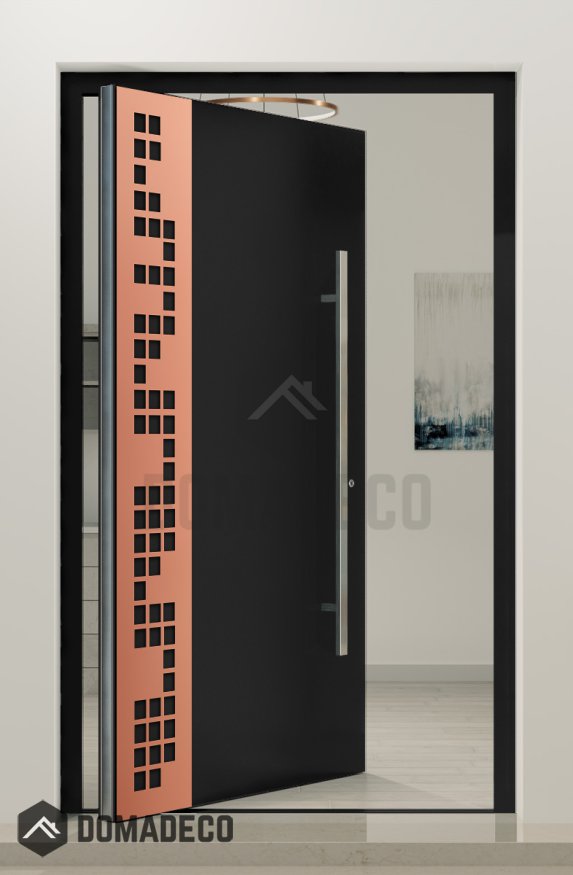

PIVOT C27 - aluminum pivot door covered copper sheet with cut-out squares

SKU
PIVOT C27
Be the first to review this product
AVAILABLE
$10,000.00

The price includes TAX & shipping

Click here to select the configuration

Doors are manufactured after the order has been placed through the website.
Production time for our doors:
door named PIVOT (aluminum) - production takes 6 weeks

Size pivot door with frame:
Width from: 55.1" to 78"
Height from: 78.7" to 116"

Available door colors:
anthracite, white, black, silver gray, red, blue, yellow, brown, green, walnut, wenge, golden oak, mahogany, custom from RAL palette

You can order this door model in a smaller size. View LIM C27

Technical specifications

Air tightness max. test pressure 4 (600 Pa)
Water tightness 4A (150 Pa)
Wind load resistance C3 (1200 Pa)
Burglar resistance RC2/WK2
Thermal insulation R-Value 6.8

The door set includes:

- Aluminum pivot door and the door frame;
- the door handle;
- FUHR 835 4-point lock
- low threshold door
- Standard lock insert with 5 keys.

Full door information

The door is already mounted onto the frame (prehung door), which saves you all the work. The door is completely ready for installation.

The picture showing how to take the measurement. Click here
The installation space between the frame and the wall can be between 0.2" to 0.8" on each side
Frequently Asked Questions: click here to check

-
+
$10,000.00

The price includes TAX & shipping

Wish List
Email
We found other products you might like!

Technical specifications:

  • frame depth door: 78 mm / 3.1",
  • Depth Vent: 78 mm / 3.1"
  • Air tightness: Class 4 (600Pa)
  • Wind load resistance: Class C3 (1200Pa)
  • Water tightness: Class 4A (150Pa)
  • Opening & closing resistance: Class 5
  • standard glazing package 4th/16Ar/4/16Ar/4th [Ug=0,6]*
  • Burglar resistance: RC2
  • Thermal insulation: Ud = 0.83 W/K*m2 / R-Value 6.8

The door set includes:

  • Aluminium pivot door and the door frame;
  • the door handle;
  • FUHR 833 3-point lock
  • low threshold door
  • standard lock insert with 5 keys.
Pivot door in full glass version

Pivot door with an aluminum overlay panel

Glazing

The glass in our doors are triple-pane windows. All panes are connected with spacer frames. Two of them are covered with Low-E coatings that provide natural light while helping to limit heat gain and thermal energy loss. It is also possible to choose P4 anti-burglary glass or safety glass VSG 33.1

standard glazing package 4th/16Ar/4/16Ar/4th

safety glass 33.1//4//4

P4 anti-burglary

Types of glazing

There is a wide range of glass options. In our offer one will find energy-saving, sound-absorbing, safety, anti-burglary and sunscreen windows. The most popular ones are milk glass, decorative or mirror glass as well as bronze reflex glass.

Colours

Colours can emphasise the shape of aluminium joinery and provide it with individual character and genuine appearance. All aluminium systems offered are available in two colour palettes – RAL and DECORAL.
RAL Basic colour palette.

Fiery red or maybe a delicate blue? The RAL K5 Classic colour palette will allow you to choose the colour of the door perfectly suited to your requirements!



RAL 1003

RAL 2004

RAL 3020

RAL 5002

RAL 6005

RAL 6021

RAL 7016

RAL 7039

RAL 7040

RAL 9016

RAL 9005

RAL 9007

Touch line handles

Touch line handles are made of the highest quality materials. They are available in anodized versions (covered with a layer of aluminum oxide) and powder coated in the entire range of the RAL palette (400 + colors).

Sublime, timeless design makes these elegant handles emphasize the appearance of each door.

T-bar - long vertical handle or normal handle:

Stainless steel door handles are designed for one or two-sided use for external doors.
The innovative mounting system enables quick and easy installation of the door handle. Our offer includes many handrails:




Q10
T-bar with a square section of 40×40 mm / 1.6"x1.6".
Available in lengths: 1200 / 47.2", 1600 / 63", 1800 mm / 70.9".

Q45
T-bar at an angle of 45 degrees with a square section of 40 × 40 mm / 1.6"x1.6"
Available in lengths: 1200 / 47.2", 1600 / 63", 1800 mm / 70.9".

P10
T-bar with a round cross-section ⌀ 40 mm / 1.6" .
Available in lengths: 1200 / 47.2", 1600 / 63", 1800 mm / 70.9"

P45
T-bar at an angle of 45 degrees with a round cross-section ⌀ 40 mm / 1.6".
Available in lengths: 1200 / 47.2", 1600 / 63", 1800 mm / 70.9".

Z18
Black, designer handle.
Available in length 480 mm / 18.9".

Z20
Black T-bar with an interesting design
Available in length 498 mm / 19.6".

Z32
Black T-bar with an interesting curve that can also be used for all-glass doors
Available in length 499 mm / 19.6".

Z24
Black, oval handle
Width 450 mm/ 17.7"

Z52
T-bar round z52 copper
⌀ 198 mm / 7.8"

Z53
T-bar round z53 silvershine
⌀ 198 mm / 7.8"

Z54
T-bar round z54 slivergalaxy
⌀ 198 mm / 7.8"

Recessed
T-bar recessed
Available in lengths: 1200 mm / 47.2" and 1800 mm / 70.9"

Multipoint locking system Fuhr 835

Automatic multipoint locking system with a deadlocking latch.

Fuhr lock is the excellent locking system that guarantees comfort as well as security. The lock function ensures reliable, automatic locking and protection against uninvited guests. All you have to do is pull the door closed.

After closing the door, our three-point locking system protects against door warping, offering long-lasting seal tightness and a thermal efficiency.



The most important features:

Increased security – due to automatic locking there is no need for conventional locking with using a key.

Convenient opening – Effortless key operation thanks to two-stage opening sequence from the outside or using the lever handle from the inside.

Increased heat insulation – The multipoint locking system prevents the door from warping to ensure consistent seal tightness around the whole door leaf/slab.

Reliability and durability – long service life is guaranteed and has been tested with over 200,000 cycles.



Locking the lock:
  • After closing the door, the latch in the main lock and additional bolts automatically lock the door.
  • A single turn of the key causes the bolt of the main lock to be activated.
Unlocking the lock:
  • Turning the key once withdraws both lock and bolts. Pressing the handle down causes the latch to be automatically released and allows to open the door.



Class A insert 6.D.C cylinder with keys

Durability: 100 000 cycles
Security rating: Class 6 the highest
Attack resistance: Class D the highest
Burglar resistance: Class C the highest

Certified, cylindrical, profiled 9-ratchet insert (two rows of latches). Innovative anti-drill and anti-picking protection. Inserts resistant to bumping. 5 keys included, key code card.

Write Your Own Review
You're reviewing:PIVOT C27 - aluminum pivot door covered copper sheet with cut-out squares
Your Rating

The PIVOT C27 is a remarkable aluminum pivot door that masterfully combines innovative design with luxurious materials to create a truly unique entrance for your home or commercial space. This door stands out not only for its functional pivot mechanism but also for its striking aesthetic, featuring an aluminum core elegantly covered with a rich copper sheet. The copper surface is expertly crafted with a series of cut-out squares, adding depth, texture, and a distinctive artistic flair that transforms the door into a captivating architectural feature.

At the heart of the PIVOT C27 is its sophisticated pivot hardware system, which allows the door to rotate smoothly around a central axis rather than swinging on traditional side hinges. This pivot action provides a dramatic and seamless opening experience, enabling wider clearances and enhancing accessibility. The door’s aluminum structure ensures it remains lightweight yet incredibly strong, providing durability and ease of operation that stand up to daily use and the demands of modern living.

The copper sheet covering the door is not only visually stunning but also adds a layer of natural elegance and warmth. Over time, the copper will develop a beautiful patina, enriching the door’s character and making it a dynamic element of your architectural design. The cut-out squares pattern punctuates the copper surface with geometric precision, creating a play of light and shadow that enhances the door’s visual interest both during the day and at night when illuminated. This artistic detail serves as a signature design element, blending craftsmanship with contemporary style.

In addition to its aesthetic appeal, the PIVOT C27 is engineered for superior performance. The combination of aluminum’s corrosion resistance and copper’s natural durability means this door is built to withstand harsh weather conditions while maintaining its exquisite appearance. The door frame and pivot hardware are precision-engineered to provide secure, stable operation, ensuring that the door not only looks exceptional but functions flawlessly. Advanced sealing systems help to protect against drafts, moisture, and noise, contributing to improved energy efficiency and indoor comfort.

Security is a paramount consideration in the design of the PIVOT C27. The robust aluminum core is reinforced and designed to accommodate high-quality locking mechanisms, providing reliable protection against unauthorized entry. The durable materials and secure fitting ensure peace of mind without compromising the door’s artistic and modern aesthetic.

Installation of the PIVOT C27 is adaptable and suitable for a variety of architectural settings, from luxury residences to upscale commercial spaces. Whether used as a grand front entry or a distinctive interior feature, this door elevates the environment with its combination of functional innovation and refined artistry. The timeless copper finish paired with contemporary cut-out details creates a harmonious balance that complements both classic and modern design themes.

In summary, the PIVOT C27 aluminum pivot door covered with a copper sheet and adorned with cut-out squares is a stunning fusion of art and engineering. It offers not only exceptional durability and smooth operation but also a visually compelling entrance that makes a bold architectural statement. Choose the PIVOT C27 to bring a unique blend of elegance, innovation, and craftsmanship to your space, creating an entrance that is as functional as it is unforgettable.
