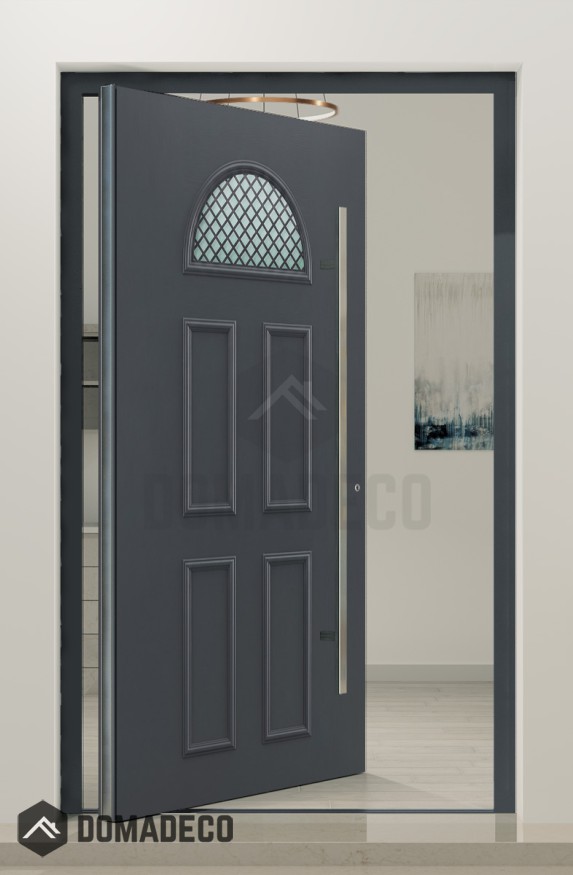

PIVOT CL15 - Classic design aluminum pivot door

SKU
PIVOT CL15
AVAILABLE
$11,470.00

The price includes TAX & shipping

Click here to select the configuration

Doors are manufactured after the order has been placed through the website.
Production time for our doors:
door named PIVOT (aluminum) - production takes 6 weeks

Size pivot door with frame:
Width from: 55.1" to 78"
Height from: 78.7" to 116"

Available door colors:
anthracite, white, black, silver gray, red, blue, yellow, brown, green, walnut, wenge, golden oak, mahogany, custom from RAL palette

You can order this door model in a smaller size. View LIM CL15

Technical specifications

Air tightness max. test pressure 4 (600 Pa)
Water tightness 4A (150 Pa)
Wind load resistance C3 (1200 Pa)
Burglar resistance RC2/WK2
Thermal insulation R-Value 6.8

The door set includes:

- Aluminum pivot door and the door frame;
- the door handle;
- FUHR 835 4-point lock
- low threshold door
- Standard lock insert with 5 keys.

Full door information

The door is already mounted onto the frame (prehung door), which saves you all the work. The door is completely ready for installation.

The picture showing how to take the measurement. Click here
The installation space between the frame and the wall can be between 0.2" to 0.8" on each side

Frequently Asked Questions: click here to check

-
+
$11,470.00

The price includes TAX & shipping

We found other products you might like!

Technical specifications:

  • frame depth door: 78 mm / 3.1",
  • Depth Vent: 78 mm / 3.1"
  • Air tightness: Class 4 (600Pa)
  • Wind load resistance: Class C3 (1200Pa)
  • Water tightness: Class 4A (150Pa)
  • Opening & closing resistance: Class 5
  • standard glazing package 4th/16Ar/4/16Ar/4th [Ug=0,6]*
  • Burglar resistance: RC2
  • Thermal insulation: Ud = 0.83 W/K*m2 / R-Value 6.8

The door set includes:

  • Aluminium pivot door and the door frame;
  • the door handle;
  • FUHR 833 3-point lock
  • low threshold door
  • standard lock insert with 5 keys.
Pivot door in full glass version

Pivot door with an aluminum overlay panel

Glazing

The glass in our doors are triple-pane windows. All panes are connected with spacer frames. Two of them are covered with Low-E coatings that provide natural light while helping to limit heat gain and thermal energy loss. It is also possible to choose P4 anti-burglary glass or safety glass VSG 33.1

standard glazing package 4th/16Ar/4/16Ar/4th

safety glass 33.1//4//4

P4 anti-burglary

Types of glazing

There is a wide range of glass options. In our offer one will find energy-saving, sound-absorbing, safety, anti-burglary and sunscreen windows. The most popular ones are milk glass, decorative or mirror glass as well as bronze reflex glass.

Colours

Colours can emphasise the shape of aluminium joinery and provide it with individual character and genuine appearance. All aluminium systems offered are available in two colour palettes – RAL and DECORAL.
RAL Basic colour palette.

Fiery red or maybe a delicate blue? The RAL K5 Classic colour palette will allow you to choose the colour of the door perfectly suited to your requirements!



RAL 1003

RAL 2004

RAL 3020

RAL 5002

RAL 6005

RAL 6021

RAL 7016

RAL 7039

RAL 7040

RAL 9016

RAL 9005

RAL 9007

Touch line handles

Touch line handles are made of the highest quality materials. They are available in anodized versions (covered with a layer of aluminum oxide) and powder coated in the entire range of the RAL palette (400 + colors).

Sublime, timeless design makes these elegant handles emphasize the appearance of each door.

T-bar - long vertical handle or normal handle:

Stainless steel door handles are designed for one or two-sided use for external doors.
The innovative mounting system enables quick and easy installation of the door handle. Our offer includes many handrails:




Q10
T-bar with a square section of 40×40 mm / 1.6"x1.6".
Available in lengths: 1200 / 47.2", 1600 / 63", 1800 mm / 70.9".

Q45
T-bar at an angle of 45 degrees with a square section of 40 × 40 mm / 1.6"x1.6"
Available in lengths: 1200 / 47.2", 1600 / 63", 1800 mm / 70.9".

P10
T-bar with a round cross-section ⌀ 40 mm / 1.6" .
Available in lengths: 1200 / 47.2", 1600 / 63", 1800 mm / 70.9"

P45
T-bar at an angle of 45 degrees with a round cross-section ⌀ 40 mm / 1.6".
Available in lengths: 1200 / 47.2", 1600 / 63", 1800 mm / 70.9".

Z18
Black, designer handle.
Available in length 480 mm / 18.9".

Z20
Black T-bar with an interesting design
Available in length 498 mm / 19.6".

Z32
Black T-bar with an interesting curve that can also be used for all-glass doors
Available in length 499 mm / 19.6".

Z24
Black, oval handle
Width 450 mm/ 17.7"

Z52
T-bar round z52 copper
⌀ 198 mm / 7.8"

Z53
T-bar round z53 silvershine
⌀ 198 mm / 7.8"

Z54
T-bar round z54 slivergalaxy
⌀ 198 mm / 7.8"

Recessed
T-bar recessed
Available in lengths: 1200 mm / 47.2" and 1800 mm / 70.9"

Multipoint locking system Fuhr 835

Automatic multipoint locking system with a deadlocking latch.

Fuhr lock is the excellent locking system that guarantees comfort as well as security. The lock function ensures reliable, automatic locking and protection against uninvited guests. All you have to do is pull the door closed.

After closing the door, our three-point locking system protects against door warping, offering long-lasting seal tightness and a thermal efficiency.



The most important features:

Increased security – due to automatic locking there is no need for conventional locking with using a key.

Convenient opening – Effortless key operation thanks to two-stage opening sequence from the outside or using the lever handle from the inside.

Increased heat insulation – The multipoint locking system prevents the door from warping to ensure consistent seal tightness around the whole door leaf/slab.

Reliability and durability – long service life is guaranteed and has been tested with over 200,000 cycles.



Locking the lock:
  • After closing the door, the latch in the main lock and additional bolts automatically lock the door.
  • A single turn of the key causes the bolt of the main lock to be activated.
Unlocking the lock:
  • Turning the key once withdraws both lock and bolts. Pressing the handle down causes the latch to be automatically released and allows to open the door.



Class A insert 6.D.C cylinder with keys

Durability: 100 000 cycles
Security rating: Class 6 the highest
Attack resistance: Class D the highest
Burglar resistance: Class C the highest

Certified, cylindrical, profiled 9-ratchet insert (two rows of latches). Innovative anti-drill and anti-picking protection. Inserts resistant to bumping. 5 keys included, key code card.

Write Your Own Review
You're reviewing:PIVOT CL15 - Classic design aluminum pivot door
Your Rating

LIM CL15 is a classic design aluminum front door created for homeowners who want timeless style, modern engineering, and long-term reliability in one refined entrance solution. It captures the charm and proportions of a traditional front door while using advanced aluminum construction for strength, stability, and low maintenance. The result is a door that looks elegant from the street and performs flawlessly day after day.

The design of LIM CL15 is rooted in classic aesthetics. The leaf features a panel-inspired layout with carefully defined sections that give the door depth, character, and a sense of craftsmanship. The lines are clean and balanced, avoiding excessive ornamentation so the door feels timeless rather than old-fashioned. This makes LIM CL15 an ideal choice for traditional homes, townhouses, family residences, and properties that blend classic and contemporary elements. It provides a welcoming, familiar look that never goes out of style.

At its core, LIM CL15 is built from high-quality aluminum profiles. Aluminum is inherently strong, dimensionally stable, and resistant to warping, which is crucial for an external door constantly exposed to changing temperatures and weather. Unlike timber, it does not swell, shrink, or crack. The leaf and frame are engineered to maintain their shape over the years, ensuring the door continues to open and close smoothly, sit correctly in the frame, and retain tight, even gaps that contribute to both appearance and performance. Every time you use LIM CL15, it feels solid, precise, and well made.

The exterior surface of LIM CL15 is finished with an advanced, weather-resistant coating designed specifically for outdoor use. This protective layer shields the door from UV rays, moisture, and everyday wear, keeping the color consistent and the surface looking fresh. The color palette can range from traditional to contemporary: deep blues, greens, and burgundies for a heritage feel; anthracite, black, and charcoal for a stronger, updated classic; or soft greys, creams, and whites for a bright, inviting entrance. Wood-effect finishes may also be available if you want the warmth of timber without the drawbacks of wood maintenance. Whatever you choose, LIM CL15 is made to complement your façade and hold its look for years.

The classic design of LIM CL15 can be further refined with thoughtfully integrated glazing. Depending on the configuration, glass inserts can be placed in the upper part of the door or within selected “panels,” echoing traditional door designs while adding light and elegance. These glass elements introduce natural daylight into your hallway, make the entrance feel more open, and enhance the overall character of the façade. A variety of glass options can be used—clear, frosted, patterned, decorative, or with subtle motifs—allowing you to balance privacy and brightness while staying true to the classic look.

Behind the refined exterior, LIM CL15 is a secure and reliable entrance system. The strong aluminum leaf and frame provide a rigid base for high-quality locking technology. Multi-point locking mechanisms can secure the door at several positions around the frame, making it much more resistant to forced entry than basic single-point locks. High-security cylinders, reinforced strike plates, robust hinges, and optional additional security features complete the system. When the door is closed and locked, LIM CL15 feels firm and reassuring, giving you real confidence in the protection of your home.

Thermal performance and comfort are integral to the LIM CL15 concept. Modern aluminum doors like this are not simple metal panels. They are typically built using thermally broken aluminum profiles and an insulated core that significantly reduces heat transfer through the door. Combined with high-quality perimeter gaskets and a carefully designed threshold, this helps keep warm air inside during colder months and reduces heat gain in summer. Effective sealing also limits draughts, wind-driven rain, dust, and exterior noise. In practice, that means LIM CL15 does not just look classic; it actively supports a more comfortable, energy-conscious home.

In everyday operation, LIM CL15 is designed to feel smooth, stable, and effortless. Precision hinges and well-matched hardware ensure the door swings cleanly without rattling or flexing. The leaf has a reassuring weight that communicates quality, but the engineering ensures it remains easy to use for all members of the household. Threshold options can be tailored to your needs: low thresholds support barrier-free living and easy access for children, strollers, or wheelchairs, while slightly higher thresholds emphasize the separation between indoors and outdoors and deliver excellent weather tightness.

One of the biggest advantages of LIM CL15 over traditional timber doors is its minimal maintenance requirement. Aluminum does not rot, deform, or attract insects, and the durable coating means there is no need for periodic sanding, painting, or varnishing. Under normal conditions, a simple occasional wash with mild soapy water is usually all that’s needed to keep the door looking clean and well cared for. This makes LIM CL15 especially appealing for busy households and for anyone who wants a prestigious, classic entrance without the ongoing upkeep that wooden doors demand.

The LIM CL15 range also offers considerable design flexibility. Within its classic framework, different panel layouts, groove details, and glazing styles can be configured to lean more traditional or more transitional. You might choose a richly colored door with decorative glass for a period-inspired home, or a simpler panel pattern with clear or frosted glass and a darker tone for a modern-classic look. LIM CL15 can also be combined with fixed side panels and a top light, creating a wider, brighter entrance composition that still preserves the classic impression.

Hardware plays a crucial role in finishing the LIM CL15 design. You can select from traditional-style handles, knockers, letter plates, and door viewers to underline the classic character, or opt for more streamlined lever handles to add a contemporary twist. Available finishes—such as polished chrome, brushed stainless steel, brass, or matte black—allow you to coordinate the door with exterior lighting, house numbers, railings, and window fittings. These small but significant details help ensure your entrance feels coherent, intentional, and truly your own.

LIM CL15 is suitable for a wide range of residential projects. In new-build homes, it creates a distinguished, welcoming focal point that immediately communicates quality and taste. In renovation projects, it is a powerful upgrade over older wooden or basic metal doors, delivering improved security, better insulation, greater comfort, and a refreshed appearance in a single step. Whether your property is traditional, period-inspired, transitional, or a blend of old and new, LIM CL15 can be configured to complement and elevate its architecture.

In essence, LIM CL15 is a classic design aluminum front door that combines heritage-inspired looks with the benefits of modern engineering. It offers the proportion, charm, and presence of a traditional entrance, backed by the strength, thermal performance, security, and easy care of a premium aluminum system. If you want an entrance that feels elegant and enduring, enhances your home’s character, and continues to perform beautifully year after year, LIM CL15 is a confident, future-ready choice.
