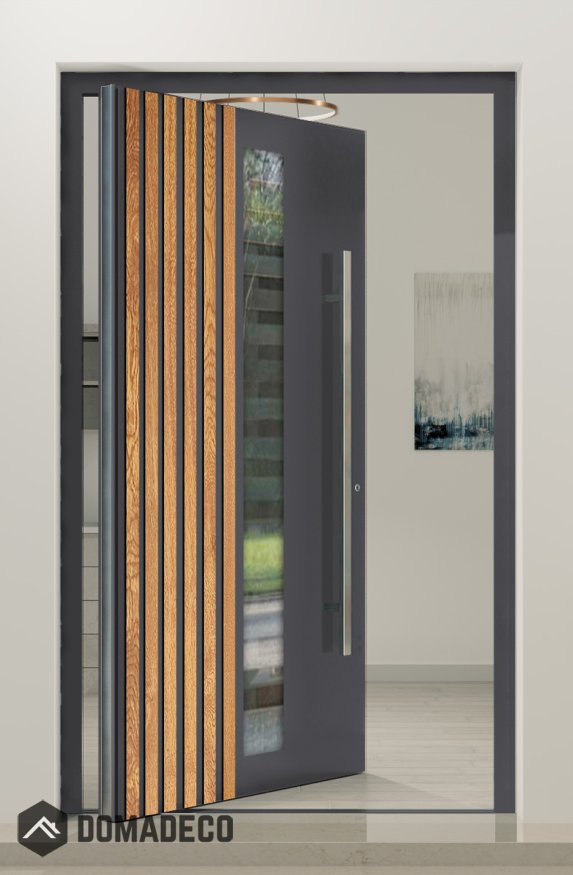

PIVOT RAIL4 - aluminium pivot door with vertical slats made of aluminium profiles
The price includes TAX & shipping
Doors are manufactured after the order has been placed through the website.
Production time for our doors:
door named PIVOT (aluminum) - production takes 7 weeks
Size pivot door with frame:
Width from: 55.1" to 78"
Height from: 78.7" to 116"

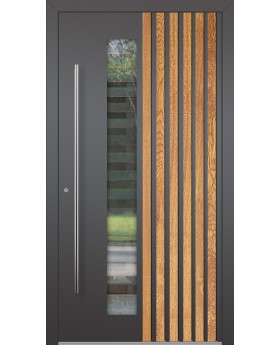

You can order this door model in a smaller size. View LIM RAIL4
Domadeco Pivot doors represent the best doors the market can offer and deliver maximum comfort and security for the user, while allowing substantial architectural freedom with numerous design variants and scoring high on energy-efficiency.
The characteristic feature of this series is the use of appliques made of aluminum profiles with wood pattern.
Technical specifications
Air tightness max. test pressure 4 (600 Pa)
Water tightness 4A (150 Pa)
Wind load resistance C3 (1200 Pa)
Burglar resistance RC2/WK2
Thermal insulation R-Value 5.5
The door set includes:
- Aluminum pivot door and the door frame;
- the door handle;
- FUHR 833 3-point lock
- low threshold door
- Standard lock insert with 5 keys.
The door is already mounted onto the frame (prehung door), which saves you all the work. The door is completely ready for installation.
The picture showing how to take the measurement. Click here
The installation space between the frame and the wall can be between 0.2" to 0.8" on each side
Frequently Asked Questions: click here to check
