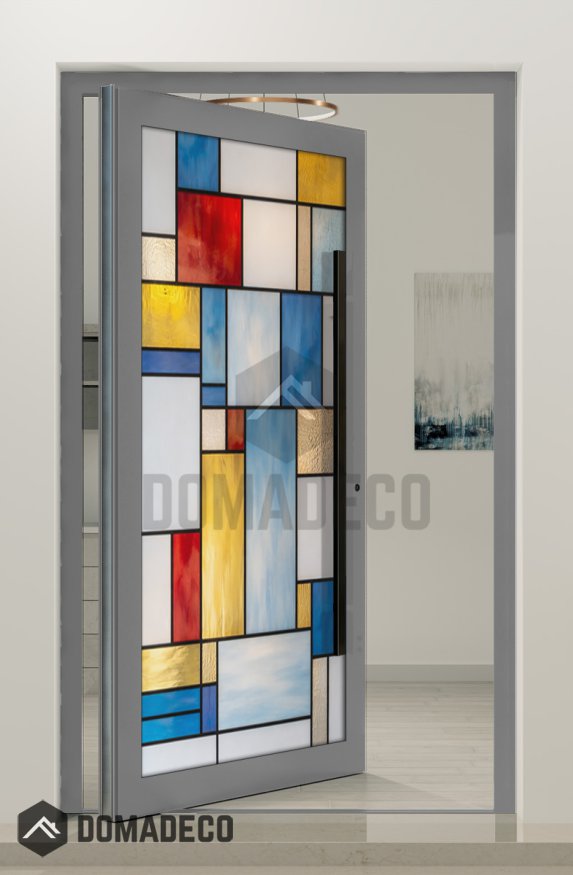

PIVOT SG1 - Stained Glass external aluminum pivot door

SKU
PIVOT SG1
Be the first to review this product
AVAILABLE
$12,780.00

The price includes TAX & shipping

Click here to select the configuration

Doors are manufactured after the order has been placed through the website.
Production time for our doors:
door named PIVOT (aluminum) - production takes 6 weeks

Size pivot door with frame:
Width from: 55.1" to 78"
Height from: 78.7" to 102.4"

Available door colors:
anthracite, white, black, silver gray, red, blue, yellow, brown, green, walnut, wenge, golden oak, mahogany, custom from RAL palette

Technical specifications

Air tightness max. test pressure 4 (600 Pa)
Water tightness 4A (150 Pa)
Wind load resistance C3 (1200 Pa)
Burglar resistance RC2/WK2
Thermal insulation R-Value 6.8

The door set includes:

- Aluminum pivot door and the door frame;
- the door handle;
- FUHR 835 4-point lock
- low threshold door
- Standard lock insert with 5 keys.

Full door information

The door is already mounted onto the frame (prehung door), which saves you all the work. The door is completely ready for installation.

The picture showing how to take the measurement. Click here
The installation space between the frame and the wall can be between 0.2" to 0.8" on each side
Frequently Asked Questions: click here to check

-
+
$12,780.00

The price includes TAX & shipping

Wish List
Email
We found other products you might like!

Technical specifications:

  • frame depth door: 78 mm / 3.1",
  • Depth Vent: 78 mm / 3.1"
  • Air tightness: Class 4 (600Pa)
  • Wind load resistance: Class C3 (1200Pa)
  • Water tightness: Class 4A (150Pa)
  • Opening & closing resistance: Class 5
  • standard glazing package 4th/16Ar/4/16Ar/4th [Ug=0,6]*
  • Burglar resistance: RC2
  • Thermal insulation: Ud = 0.83 W/K*m2 / R-Value 6.8

The door set includes:

  • Aluminium pivot door and the door frame;
  • the door handle;
  • FUHR 833 3-point lock
  • low threshold door
  • standard lock insert with 5 keys.
Pivot door in full glass version

Pivot door with an aluminum overlay panel

Glazing

The glass in our doors are triple-pane windows. All panes are connected with spacer frames. Two of them are covered with Low-E coatings that provide natural light while helping to limit heat gain and thermal energy loss. It is also possible to choose P4 anti-burglary glass or safety glass VSG 33.1

standard glazing package 4th/16Ar/4/16Ar/4th

safety glass 33.1//4//4

P4 anti-burglary

Types of glazing

There is a wide range of glass options. In our offer one will find energy-saving, sound-absorbing, safety, anti-burglary and sunscreen windows. The most popular ones are milk glass, decorative or mirror glass as well as bronze reflex glass.

Colours

Colours can emphasise the shape of aluminium joinery and provide it with individual character and genuine appearance. All aluminium systems offered are available in two colour palettes – RAL and DECORAL.
RAL Basic colour palette.

Fiery red or maybe a delicate blue? The RAL K5 Classic colour palette will allow you to choose the colour of the door perfectly suited to your requirements!



RAL 1003

RAL 2004

RAL 3020

RAL 5002

RAL 6005

RAL 6021

RAL 7016

RAL 7039

RAL 7040

RAL 9016

RAL 9005

RAL 9007

Touch line handles

Touch line handles are made of the highest quality materials. They are available in anodized versions (covered with a layer of aluminum oxide) and powder coated in the entire range of the RAL palette (400 + colors).

Sublime, timeless design makes these elegant handles emphasize the appearance of each door.

T-bar - long vertical handle or normal handle:

Stainless steel door handles are designed for one or two-sided use for external doors.
The innovative mounting system enables quick and easy installation of the door handle. Our offer includes many handrails:




Q10
T-bar with a square section of 40×40 mm / 1.6"x1.6".
Available in lengths: 1200 / 47.2", 1600 / 63", 1800 mm / 70.9".

Q45
T-bar at an angle of 45 degrees with a square section of 40 × 40 mm / 1.6"x1.6"
Available in lengths: 1200 / 47.2", 1600 / 63", 1800 mm / 70.9".

P10
T-bar with a round cross-section ⌀ 40 mm / 1.6" .
Available in lengths: 1200 / 47.2", 1600 / 63", 1800 mm / 70.9"

P45
T-bar at an angle of 45 degrees with a round cross-section ⌀ 40 mm / 1.6".
Available in lengths: 1200 / 47.2", 1600 / 63", 1800 mm / 70.9".

Z18
Black, designer handle.
Available in length 480 mm / 18.9".

Z20
Black T-bar with an interesting design
Available in length 498 mm / 19.6".

Z32
Black T-bar with an interesting curve that can also be used for all-glass doors
Available in length 499 mm / 19.6".

Z24
Black, oval handle
Width 450 mm/ 17.7"

Z52
T-bar round z52 copper
⌀ 198 mm / 7.8"

Z53
T-bar round z53 silvershine
⌀ 198 mm / 7.8"

Z54
T-bar round z54 slivergalaxy
⌀ 198 mm / 7.8"

Recessed
T-bar recessed
Available in lengths: 1200 mm / 47.2" and 1800 mm / 70.9"

Multipoint locking system Fuhr 835

Automatic multipoint locking system with a deadlocking latch.

Fuhr lock is the excellent locking system that guarantees comfort as well as security. The lock function ensures reliable, automatic locking and protection against uninvited guests. All you have to do is pull the door closed.

After closing the door, our three-point locking system protects against door warping, offering long-lasting seal tightness and a thermal efficiency.



The most important features:

Increased security – due to automatic locking there is no need for conventional locking with using a key.

Convenient opening – Effortless key operation thanks to two-stage opening sequence from the outside or using the lever handle from the inside.

Increased heat insulation – The multipoint locking system prevents the door from warping to ensure consistent seal tightness around the whole door leaf/slab.

Reliability and durability – long service life is guaranteed and has been tested with over 200,000 cycles.



Locking the lock:
  • After closing the door, the latch in the main lock and additional bolts automatically lock the door.
  • A single turn of the key causes the bolt of the main lock to be activated.
Unlocking the lock:
  • Turning the key once withdraws both lock and bolts. Pressing the handle down causes the latch to be automatically released and allows to open the door.



Class A insert 6.D.C cylinder with keys

Durability: 100 000 cycles
Security rating: Class 6 the highest
Attack resistance: Class D the highest
Burglar resistance: Class C the highest

Certified, cylindrical, profiled 9-ratchet insert (two rows of latches). Innovative anti-drill and anti-picking protection. Inserts resistant to bumping. 5 keys included, key code card.

Write Your Own Review
You're reviewing:PIVOT SG1 - Stained Glass external aluminum pivot door
Your Rating

The PIVOT SG1 is an exquisite stained glass external aluminum door that perfectly combines artistic elegance with modern durability. Designed to make a striking first impression, this door elevates the entrance of any home or commercial building with its unique stained glass panels, which add a timeless charm and a touch of sophistication. Meticulously crafted, the PIVOT SG1 door blends traditional craftsmanship with contemporary materials, offering both beauty and functionality in one exceptional package.

Constructed from high-quality aluminum, the PIVOT SG1 door ensures exceptional strength and longevity while remaining lightweight and easy to operate. Aluminum’s natural resistance to corrosion and weathering makes this door an ideal choice for external use, capable of withstanding harsh environmental conditions without compromising its stunning appearance. The robust frame provides excellent security, giving homeowners peace of mind knowing their property is well protected.

One of the standout features of the PIVOT SG1 is its beautifully designed stained glass inserts. These panels are expertly crafted using premium materials that not only enhance the aesthetic appeal but also allow natural light to filter through, creating a warm and inviting atmosphere inside your home. The intricate patterns and vibrant colors of the stained glass can be customized to suit your personal style or complement the architectural character of your property, making each door a true work of art.

Beyond its visual appeal, the PIVOT SG1 door is engineered with advanced insulation properties to help maintain optimal indoor temperatures. This energy-efficient design helps reduce heat loss during colder months and minimizes heat gain in the summer, contributing to lower energy bills and a more comfortable living environment. Additionally, the door features tight seals and weatherstripping that protect your home from drafts, noise, and moisture intrusion, enhancing overall comfort and durability.

The innovative pivot mechanism of the PIVOT SG1 door offers smooth and effortless operation, providing a modern alternative to traditional hinged doors. This design not only adds a contemporary flair but also maximizes usable space, making it practical for a variety of architectural layouts. Installation is straightforward, and the door is built to precise specifications to ensure a perfect fit and long-lasting performance.

Customization options for the PIVOT SG1 are extensive, allowing you to select from a range of frame finishes, stained glass patterns, and hardware styles to create a door that truly reflects your taste and complements your property’s exterior. Whether you desire a bold centerpiece or a subtle artistic accent, this door can be tailored to meet your vision.

In summary, the PIVOT SG1 stained glass external aluminum door is an exceptional choice for those who appreciate the fusion of art and technology. It offers superior durability, security, and energy efficiency while serving as a stunning focal point that enhances the curb appeal of any home or building. Investing in the PIVOT SG1 means choosing a door that is as functional as it is beautiful, providing lasting value and a welcoming entrance for years to come.
