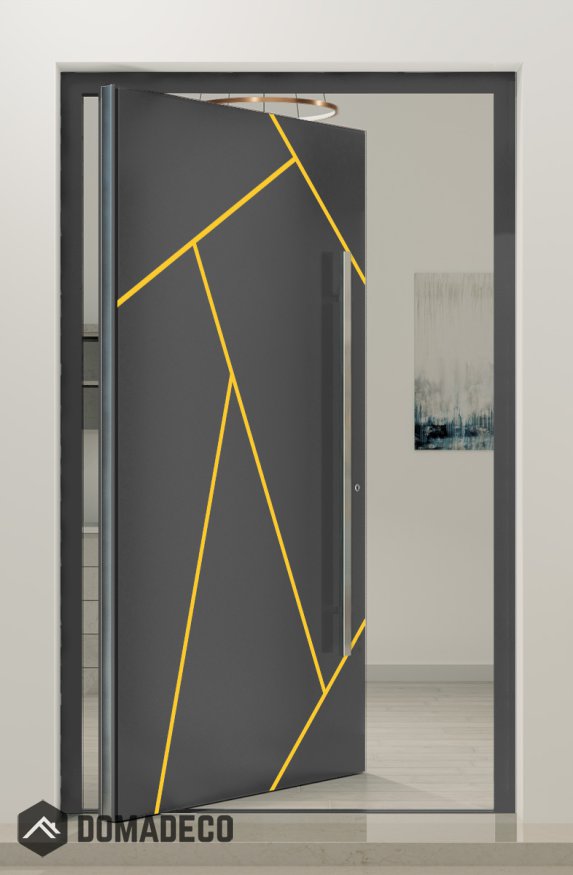

PIVOT V37 - stylish aluminum pivot front door with stripes

SKU
PIVOT V37
Rating:
100 % of 100
1  Review Add Your Review
AVAILABLE
$10,680.00

The price includes TAX & shipping

Click here to select the configuration

Doors are manufactured after the order has been placed through the website.
Production time for our doors:
door named PIVOT (aluminum) - production takes 6 weeks

Size pivot door with frame:
Width from: 55.1" to 78"
Height from: 78.7" to 116"

Available door colors:
anthracite, white, black, silver gray, red, blue, yellow, brown, green, walnut, wenge, golden oak, mahogany, custom from RAL palette

You can order this door model in a smaller size. View LIM V37

Technical specifications

Air tightness max. test pressure 4 (600 Pa)
Water tightness 4A (150 Pa)
Wind load resistance C3 (1200 Pa)
Burglar resistance RC2/WK2
Thermal insulation R-Value 6.8

The door set includes:

- Aluminum pivot door and the door frame;
- the door handle;
- FUHR 835 4-point lock
- low threshold door
- Standard lock insert with 5 keys.

Full door information

The door is already mounted onto the frame (prehung door), which saves you all the work. The door is completely ready for installation.

The picture showing how to take the measurement. Click here
The installation space between the frame and the wall can be between 0.2" to 0.8" on each side
Frequently Asked Questions: click here to check

-
+
$10,680.00

The price includes TAX & shipping

Wish List
Email
We found other products you might like!

Technical specifications:

  • frame depth door: 78 mm / 3.1",
  • Depth Vent: 78 mm / 3.1"
  • Air tightness: Class 4 (600Pa)
  • Wind load resistance: Class C3 (1200Pa)
  • Water tightness: Class 4A (150Pa)
  • Opening & closing resistance: Class 5
  • standard glazing package 4th/16Ar/4/16Ar/4th [Ug=0,6]*
  • Burglar resistance: RC2
  • Thermal insulation: Ud = 0.83 W/K*m2 / R-Value 6.8

The door set includes:

  • Aluminium pivot door and the door frame;
  • the door handle;
  • FUHR 833 3-point lock
  • low threshold door
  • standard lock insert with 5 keys.
Pivot door in full glass version

Pivot door with an aluminum overlay panel

Glazing

The glass in our doors are triple-pane windows. All panes are connected with spacer frames. Two of them are covered with Low-E coatings that provide natural light while helping to limit heat gain and thermal energy loss. It is also possible to choose P4 anti-burglary glass or safety glass VSG 33.1

standard glazing package 4th/16Ar/4/16Ar/4th

safety glass 33.1//4//4

P4 anti-burglary

Types of glazing

There is a wide range of glass options. In our offer one will find energy-saving, sound-absorbing, safety, anti-burglary and sunscreen windows. The most popular ones are milk glass, decorative or mirror glass as well as bronze reflex glass.

Colours

Colours can emphasise the shape of aluminium joinery and provide it with individual character and genuine appearance. All aluminium systems offered are available in two colour palettes – RAL and DECORAL.
RAL Basic colour palette.

Fiery red or maybe a delicate blue? The RAL K5 Classic colour palette will allow you to choose the colour of the door perfectly suited to your requirements!



RAL 1003

RAL 2004

RAL 3020

RAL 5002

RAL 6005

RAL 6021

RAL 7016

RAL 7039

RAL 7040

RAL 9016

RAL 9005

RAL 9007

Touch line handles

Touch line handles are made of the highest quality materials. They are available in anodized versions (covered with a layer of aluminum oxide) and powder coated in the entire range of the RAL palette (400 + colors).

Sublime, timeless design makes these elegant handles emphasize the appearance of each door.

T-bar - long vertical handle or normal handle:

Stainless steel door handles are designed for one or two-sided use for external doors.
The innovative mounting system enables quick and easy installation of the door handle. Our offer includes many handrails:




Q10
T-bar with a square section of 40×40 mm / 1.6"x1.6".
Available in lengths: 1200 / 47.2", 1600 / 63", 1800 mm / 70.9".

Q45
T-bar at an angle of 45 degrees with a square section of 40 × 40 mm / 1.6"x1.6"
Available in lengths: 1200 / 47.2", 1600 / 63", 1800 mm / 70.9".

P10
T-bar with a round cross-section ⌀ 40 mm / 1.6" .
Available in lengths: 1200 / 47.2", 1600 / 63", 1800 mm / 70.9"

P45
T-bar at an angle of 45 degrees with a round cross-section ⌀ 40 mm / 1.6".
Available in lengths: 1200 / 47.2", 1600 / 63", 1800 mm / 70.9".

Z18
Black, designer handle.
Available in length 480 mm / 18.9".

Z20
Black T-bar with an interesting design
Available in length 498 mm / 19.6".

Z32
Black T-bar with an interesting curve that can also be used for all-glass doors
Available in length 499 mm / 19.6".

Z24
Black, oval handle
Width 450 mm/ 17.7"

Z52
T-bar round z52 copper
⌀ 198 mm / 7.8"

Z53
T-bar round z53 silvershine
⌀ 198 mm / 7.8"

Z54
T-bar round z54 slivergalaxy
⌀ 198 mm / 7.8"

Recessed
T-bar recessed
Available in lengths: 1200 mm / 47.2" and 1800 mm / 70.9"

Multipoint locking system Fuhr 835

Automatic multipoint locking system with a deadlocking latch.

Fuhr lock is the excellent locking system that guarantees comfort as well as security. The lock function ensures reliable, automatic locking and protection against uninvited guests. All you have to do is pull the door closed.

After closing the door, our three-point locking system protects against door warping, offering long-lasting seal tightness and a thermal efficiency.



The most important features:

Increased security – due to automatic locking there is no need for conventional locking with using a key.

Convenient opening – Effortless key operation thanks to two-stage opening sequence from the outside or using the lever handle from the inside.

Increased heat insulation – The multipoint locking system prevents the door from warping to ensure consistent seal tightness around the whole door leaf/slab.

Reliability and durability – long service life is guaranteed and has been tested with over 200,000 cycles.



Locking the lock:
  • After closing the door, the latch in the main lock and additional bolts automatically lock the door.
  • A single turn of the key causes the bolt of the main lock to be activated.
Unlocking the lock:
  • Turning the key once withdraws both lock and bolts. Pressing the handle down causes the latch to be automatically released and allows to open the door.



Class A insert 6.D.C cylinder with keys

Durability: 100 000 cycles
Security rating: Class 6 the highest
Attack resistance: Class D the highest
Burglar resistance: Class C the highest

Certified, cylindrical, profiled 9-ratchet insert (two rows of latches). Innovative anti-drill and anti-picking protection. Inserts resistant to bumping. 5 keys included, key code card.

Write Your Own Review
You're reviewing:PIVOT V37 - stylish aluminum pivot front door with stripes
Your Rating

The PIVOT V37 is a stylish aluminum pivot front door that perfectly combines modern aesthetics with robust functionality, making it an exceptional choice for contemporary homes and commercial spaces seeking a bold and elegant entrance solution. Expertly crafted from high-quality aluminum, this pivot door stands out with its sleek design featuring distinctive stripe accents that add visual interest and a touch of sophistication to any facade. Designed to impress, the PIVOT V37 offers a seamless blend of architectural style, durability, and smooth operation, elevating the overall entrance experience.

The hallmark of the PIVOT V37 is its innovative pivot mechanism, which allows the door to rotate gracefully around a central vertical axis rather than traditional side hinges. This pivot action not only creates a striking architectural statement but also enables the installation of larger door panels without compromising ease of use or structural stability. The smooth and balanced movement of the door ensures effortless operation, providing an inviting and impressive entryway that welcomes guests with style and grace.

Constructed from premium-grade aluminum, the PIVOT V37 offers exceptional strength and durability while remaining lightweight for smooth pivot functionality. Aluminum’s natural resistance to corrosion and weather elements makes this door ideal for exterior use, ensuring long-lasting performance and minimal maintenance requirements. The door’s surface can be finished with a variety of powder-coated colors and textures, allowing for extensive customization to complement diverse architectural styles and personal preferences.

The defining design feature of the PIVOT V37 is its elegant stripe detailing, which introduces a contemporary rhythm and texture to the door’s appearance. These stripes can be configured in various widths, depths, and finishes to create unique visual effects that harmonize with the building’s overall design language. Whether used subtly or as a bold design statement, the stripes add depth and character, transforming the door into a captivating focal point.

The PIVOT V37 is not only about style but also about security and performance. The robust aluminum frame is engineered to accommodate advanced locking mechanisms, providing reliable protection and peace of mind. Its sturdy construction supports the integration of high-quality glazing options, including frosted or clear glass panels that can be combined with the stripe accents to enhance privacy and light transmission. Weather seals and thermal breaks are incorporated to improve energy efficiency, helping to maintain comfortable indoor temperatures and reduce energy costs throughout the year.

Customization options for the PIVOT V37 extend beyond color and stripe design. The door is available in various sizes to fit a wide range of openings, and hardware choices such as handles and locks can be tailored to match the desired aesthetic and functional requirements. This adaptability makes the PIVOT V37 suitable for diverse architectural projects, from sleek urban residences to sophisticated commercial entrances.

Maintenance of the PIVOT V37 aluminum pivot front door is simple and hassle-free. Thanks to the durable, corrosion-resistant aluminum construction and resilient powder-coated finishes, the door requires only periodic cleaning to maintain its pristine appearance. The pivot hardware is designed for long-lasting performance, ensuring smooth operation and reducing the need for frequent repairs or adjustments.

In summary, the PIVOT V37 stylish aluminum pivot front door with stripes is a perfect fusion of contemporary design, high-quality materials, and superior functionality. Its unique pivot mechanism, striking stripe detailing, and customizable features make it an outstanding choice for those looking to make a confident architectural statement while enjoying the benefits of durability, security, and efficiency. The PIVOT V37 transforms any entrance into a sophisticated, welcoming gateway that enhances the overall character and value of the property.
