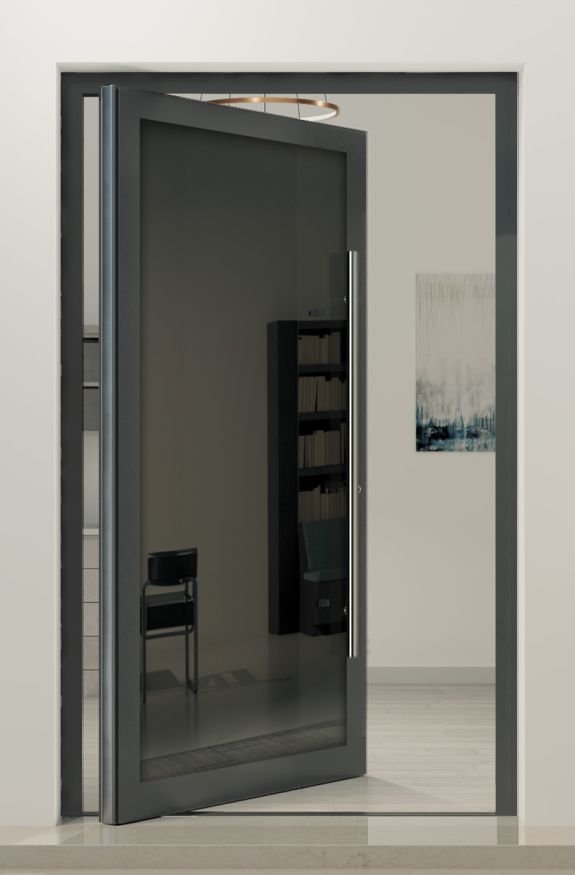

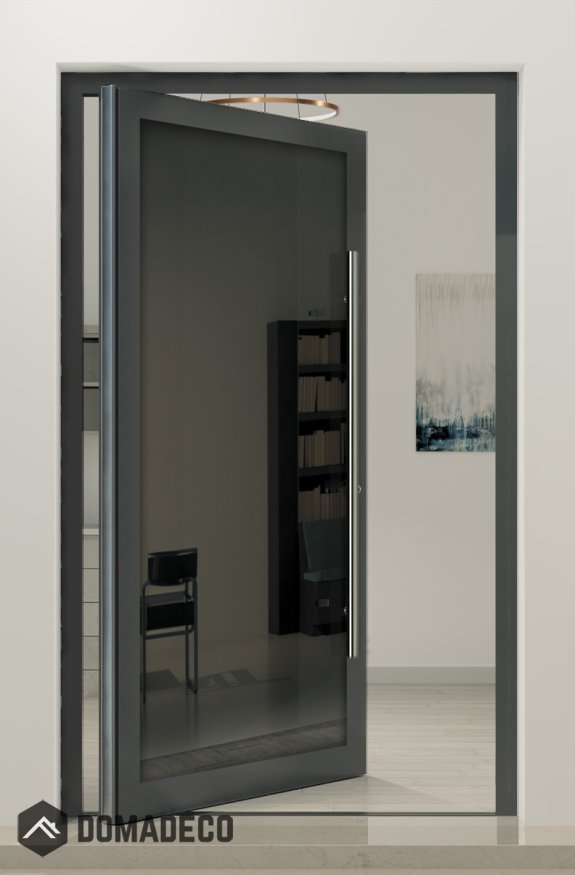

PIVOT VL19 - Lacobel glass coated with a high-quality paint aluminum pivot door

SKU
PIVOT VL19
Rating:
100 % of 100
1  Review Add Your Review
AVAILABLE
$10,260.00

The price includes TAX & shipping

Click here to select the configuration

Doors are manufactured after the order has been placed through the website.
Production time for our doors:
door named PIVOT (aluminum) - production takes 6 weeks

Size pivot door with frame:
Width from: 55.1" to 78"
Height from: 78.7" to 102.4"

Available door colors:
anthracite, white, black, silver gray, red, blue, yellow, brown, green, walnut, wenge, golden oak, mahogany, custom from RAL palette

Technical specifications

Air tightness max. test pressure 4 (600 Pa)
Water tightness 4A (150 Pa)
Wind load resistance C3 (1200 Pa)
Burglar resistance RC2/WK2
Thermal insulation R-Value 6.8

The door set includes:

- Aluminum pivot door and the door frame;
- the door handle;
- FUHR 835 4-point lock
- low threshold door
- Standard lock insert with 5 keys.

Full door information

The door is already mounted onto the frame (prehung door), which saves you all the work. The door is completely ready for installation.

The picture showing how to take the measurement. Click here
The installation space between the frame and the wall can be between 0.2" to 0.8" on each side
Frequently Asked Questions: click here to check

-
+
$10,260.00

The price includes TAX & shipping

Wish List
Email

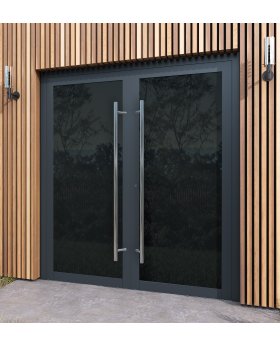

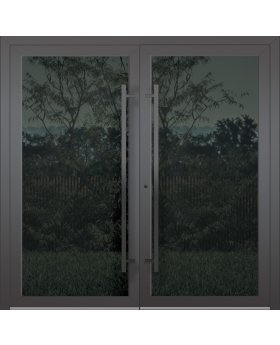

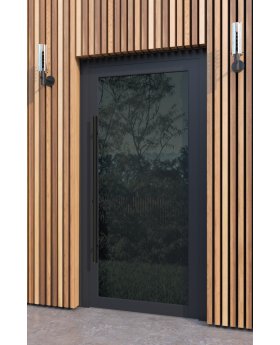

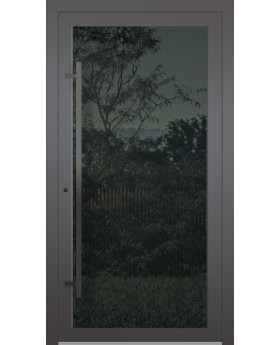

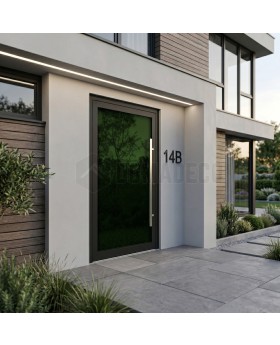

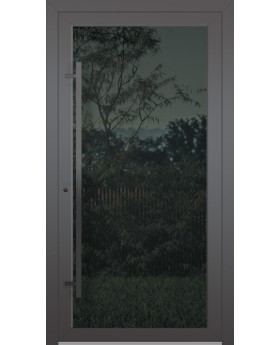

We found other products you might like!

Technical specifications:

  • frame depth door: 78 mm / 3.1",
  • Depth Vent: 78 mm / 3.1"
  • Air tightness: Class 4 (600Pa)
  • Wind load resistance: Class C3 (1200Pa)
  • Water tightness: Class 4A (150Pa)
  • Opening & closing resistance: Class 5
  • standard glazing package 4th/16Ar/4/16Ar/4th [Ug=0,6]*
  • Burglar resistance: RC2
  • Thermal insulation: Ud = 0.83 W/K*m2 / R-Value 6.8

The door set includes:

  • Aluminium pivot door and the door frame;
  • the door handle;
  • FUHR 833 3-point lock
  • low threshold door
  • standard lock insert with 5 keys.
Pivot door in full glass version

Pivot door with an aluminum overlay panel

Glazing

The glass in our doors are triple-pane windows. All panes are connected with spacer frames. Two of them are covered with Low-E coatings that provide natural light while helping to limit heat gain and thermal energy loss. It is also possible to choose P4 anti-burglary glass or safety glass VSG 33.1

standard glazing package 4th/16Ar/4/16Ar/4th

safety glass 33.1//4//4

P4 anti-burglary

Types of glazing

There is a wide range of glass options. In our offer one will find energy-saving, sound-absorbing, safety, anti-burglary and sunscreen windows. The most popular ones are milk glass, decorative or mirror glass as well as bronze reflex glass.

Colours

Colours can emphasise the shape of aluminium joinery and provide it with individual character and genuine appearance. All aluminium systems offered are available in two colour palettes – RAL and DECORAL.
RAL Basic colour palette.

Fiery red or maybe a delicate blue? The RAL K5 Classic colour palette will allow you to choose the colour of the door perfectly suited to your requirements!



RAL 1003

RAL 2004

RAL 3020

RAL 5002

RAL 6005

RAL 6021

RAL 7016

RAL 7039

RAL 7040

RAL 9016

RAL 9005

RAL 9007

Touch line handles

Touch line handles are made of the highest quality materials. They are available in anodized versions (covered with a layer of aluminum oxide) and powder coated in the entire range of the RAL palette (400 + colors).

Sublime, timeless design makes these elegant handles emphasize the appearance of each door.

T-bar - long vertical handle or normal handle:

Stainless steel door handles are designed for one or two-sided use for external doors.
The innovative mounting system enables quick and easy installation of the door handle. Our offer includes many handrails:




Q10
T-bar with a square section of 40×40 mm / 1.6"x1.6".
Available in lengths: 1200 / 47.2", 1600 / 63", 1800 mm / 70.9".

Q45
T-bar at an angle of 45 degrees with a square section of 40 × 40 mm / 1.6"x1.6"
Available in lengths: 1200 / 47.2", 1600 / 63", 1800 mm / 70.9".

P10
T-bar with a round cross-section ⌀ 40 mm / 1.6" .
Available in lengths: 1200 / 47.2", 1600 / 63", 1800 mm / 70.9"

P45
T-bar at an angle of 45 degrees with a round cross-section ⌀ 40 mm / 1.6".
Available in lengths: 1200 / 47.2", 1600 / 63", 1800 mm / 70.9".

Z18
Black, designer handle.
Available in length 480 mm / 18.9".

Z20
Black T-bar with an interesting design
Available in length 498 mm / 19.6".

Z32
Black T-bar with an interesting curve that can also be used for all-glass doors
Available in length 499 mm / 19.6".

Z24
Black, oval handle
Width 450 mm/ 17.7"

Z52
T-bar round z52 copper
⌀ 198 mm / 7.8"

Z53
T-bar round z53 silvershine
⌀ 198 mm / 7.8"

Z54
T-bar round z54 slivergalaxy
⌀ 198 mm / 7.8"

Recessed
T-bar recessed
Available in lengths: 1200 mm / 47.2" and 1800 mm / 70.9"

Multipoint locking system Fuhr 835

Automatic multipoint locking system with a deadlocking latch.

Fuhr lock is the excellent locking system that guarantees comfort as well as security. The lock function ensures reliable, automatic locking and protection against uninvited guests. All you have to do is pull the door closed.

After closing the door, our three-point locking system protects against door warping, offering long-lasting seal tightness and a thermal efficiency.



The most important features:

Increased security – due to automatic locking there is no need for conventional locking with using a key.

Convenient opening – Effortless key operation thanks to two-stage opening sequence from the outside or using the lever handle from the inside.

Increased heat insulation – The multipoint locking system prevents the door from warping to ensure consistent seal tightness around the whole door leaf/slab.

Reliability and durability – long service life is guaranteed and has been tested with over 200,000 cycles.



Locking the lock:
  • After closing the door, the latch in the main lock and additional bolts automatically lock the door.
  • A single turn of the key causes the bolt of the main lock to be activated.
Unlocking the lock:
  • Turning the key once withdraws both lock and bolts. Pressing the handle down causes the latch to be automatically released and allows to open the door.



Class A insert 6.D.C cylinder with keys

Durability: 100 000 cycles
Security rating: Class 6 the highest
Attack resistance: Class D the highest
Burglar resistance: Class C the highest

Certified, cylindrical, profiled 9-ratchet insert (two rows of latches). Innovative anti-drill and anti-picking protection. Inserts resistant to bumping. 5 keys included, key code card.

Write Your Own Review
You're reviewing:PIVOT VL19 - Lacobel glass coated with a high-quality paint aluminum pivot door
Your Rating

The PIVOT VL19 is a sophisticated aluminum pivot door system that seamlessly combines modern design with advanced functionality, featuring a stunning Lacobel glass coating enhanced by a high-quality paint finish. This door system is specifically engineered to meet the demands of contemporary architecture, offering a sleek, elegant entrance solution that elevates both residential and commercial spaces with its impeccable style and durable construction.

At the core of the PIVOT VL19 is its premium aluminum frame, renowned for its exceptional strength, lightweight nature, and resistance to corrosion and environmental wear. This ensures that the door maintains its structural integrity and aesthetic appeal even under challenging weather conditions, providing long-lasting performance with minimal maintenance. The aluminum framework serves as a robust foundation for the door’s pivot mechanism, which allows for a smooth and effortless rotation around a central vertical axis. This innovative pivot design supports larger and heavier door panels compared to traditional hinged doors, enabling grand entrances that make a striking architectural statement.

One of the standout features of the PIVOT VL19 is its exquisite Lacobel glass coating. Lacobel glass is a high-quality, painted glass that offers a flawless, mirror-like finish available in a wide range of rich colors. This coating not only enhances the door’s visual appeal with a sleek, glossy surface but also adds an extra layer of protection to the glass, making it resistant to scratches, fading, and other forms of wear. The combination of Lacobel glass and the high-quality paint on the aluminum frame creates a harmonious aesthetic that exudes modern sophistication and elegance.

Functionality and customization are key aspects of the PIVOT VL19 design. The door can be tailored to suit various architectural styles and functional requirements, with options to select different colors, finishes, and hardware to perfectly complement the building’s overall design. Additionally, energy-efficient glazing options can be incorporated to improve thermal insulation, reduce energy consumption, and enhance acoustic performance, contributing to a comfortable and sustainable indoor environment.

Security is a fundamental consideration in the PIVOT VL19’s engineering. The robust pivot mechanism is designed to securely hold heavy door panels while providing smooth operation. The door system is compatible with advanced locking solutions, including multi-point locks, to ensure maximum protection against unauthorized entry. The toughened Lacobel glass further enhances safety by offering increased resistance to impact and breakage.

Installation of the PIVOT VL19 is streamlined to facilitate precision and ease, with adjustable components that allow for flawless alignment and optimal door performance. The durable materials and finishes used in this door system reduce the need for frequent upkeep, making it a practical and reliable choice for both new constructions and renovation projects.

In summary, the PIVOT VL19 aluminum pivot door with Lacobel glass coated in high-quality paint is an exceptional entry solution that marries contemporary design with superior durability and functionality. Its sleek glass finish, robust aluminum construction, and innovative pivot mechanism come together to create a door that not only enhances the aesthetic appeal of any building but also delivers lasting security, efficiency, and ease of use. For those seeking a refined, modern entrance that stands out while performing flawlessly, the PIVOT VL19 is an outstanding choice.
