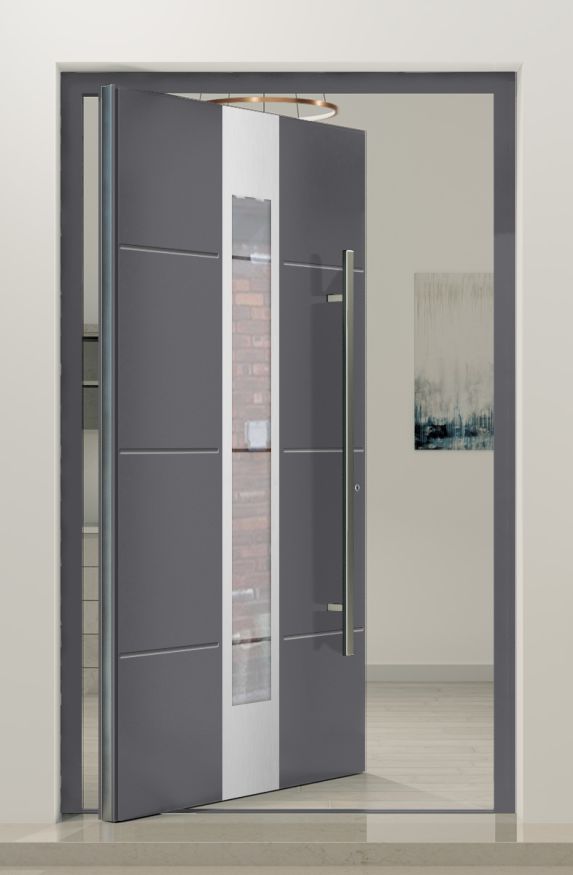

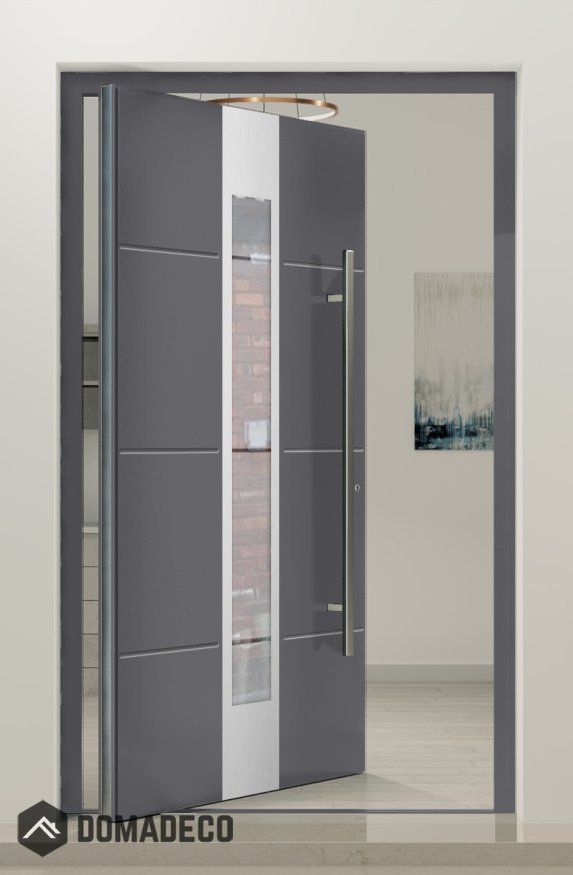

PIVOT W322 - aluminum exterior anti-burglary pivot door

SKU
PIVOT W322
Rating:
100 % of 100
1  Review Add Your Review
AVAILABLE
$10,120.00

The price includes TAX & shipping

Click here to select the configuration

Doors are manufactured after the order has been placed through the website.
Production time for our doors:
door named PIVOT (aluminum) - production takes 6 weeks

Size pivot door with frame:
Width from: 55.2" to 78"
Height from: 78.7" to 116"

Available door colors:
anthracite, white, black, silver gray, red, blue, yellow, brown, green, walnut, wenge, golden oak, mahogany, custom from RAL palette

You can order this door model in a smaller size. View LIM W322

Technical specifications

Air tightness max. test pressure 4 (600 Pa)
Water tightness 4A (150 Pa)
Wind load resistance C3 (1200 Pa)
Burglar resistance RC2/WK2
Thermal insulation R-Value 6.8

The door set includes:

- Aluminum pivot door and the door frame;
- the door handle;
- FUHR 835 4-point lock
- low threshold door
- Standard lock insert with 5 keys.

Full door information

The door is already mounted onto the frame (prehung door), which saves you all the work. The door is completely ready for installation.

The picture showing how to take the measurement. Click here
The installation space between the frame and the wall can be between 0.2" to 0.8" on each side
Frequently Asked Questions: click here to check

-
+
$10,120.00

The price includes TAX & shipping

Wish List
Email
We found other products you might like!

Technical specifications:

  • frame depth door: 78 mm / 3.1",
  • Depth Vent: 78 mm / 3.1"
  • Air tightness: Class 4 (600Pa)
  • Wind load resistance: Class C3 (1200Pa)
  • Water tightness: Class 4A (150Pa)
  • Opening & closing resistance: Class 5
  • standard glazing package 4th/16Ar/4/16Ar/4th [Ug=0,6]*
  • Burglar resistance: RC2
  • Thermal insulation: Ud = 0.83 W/K*m2 / R-Value 6.8

The door set includes:

  • Aluminium pivot door and the door frame;
  • the door handle;
  • FUHR 833 3-point lock
  • low threshold door
  • standard lock insert with 5 keys.
Pivot door in full glass version

Pivot door with an aluminum overlay panel

Glazing

The glass in our doors are triple-pane windows. All panes are connected with spacer frames. Two of them are covered with Low-E coatings that provide natural light while helping to limit heat gain and thermal energy loss. It is also possible to choose P4 anti-burglary glass or safety glass VSG 33.1

standard glazing package 4th/16Ar/4/16Ar/4th

safety glass 33.1//4//4

P4 anti-burglary

Types of glazing

There is a wide range of glass options. In our offer one will find energy-saving, sound-absorbing, safety, anti-burglary and sunscreen windows. The most popular ones are milk glass, decorative or mirror glass as well as bronze reflex glass.

Colours

Colours can emphasise the shape of aluminium joinery and provide it with individual character and genuine appearance. All aluminium systems offered are available in two colour palettes – RAL and DECORAL.
RAL Basic colour palette.

Fiery red or maybe a delicate blue? The RAL K5 Classic colour palette will allow you to choose the colour of the door perfectly suited to your requirements!



RAL 1003

RAL 2004

RAL 3020

RAL 5002

RAL 6005

RAL 6021

RAL 7016

RAL 7039

RAL 7040

RAL 9016

RAL 9005

RAL 9007

Touch line handles

Touch line handles are made of the highest quality materials. They are available in anodized versions (covered with a layer of aluminum oxide) and powder coated in the entire range of the RAL palette (400 + colors).

Sublime, timeless design makes these elegant handles emphasize the appearance of each door.

T-bar - long vertical handle or normal handle:

Stainless steel door handles are designed for one or two-sided use for external doors.
The innovative mounting system enables quick and easy installation of the door handle. Our offer includes many handrails:




Q10
T-bar with a square section of 40×40 mm / 1.6"x1.6".
Available in lengths: 1200 / 47.2", 1600 / 63", 1800 mm / 70.9".

Q45
T-bar at an angle of 45 degrees with a square section of 40 × 40 mm / 1.6"x1.6"
Available in lengths: 1200 / 47.2", 1600 / 63", 1800 mm / 70.9".

P10
T-bar with a round cross-section ⌀ 40 mm / 1.6" .
Available in lengths: 1200 / 47.2", 1600 / 63", 1800 mm / 70.9"

P45
T-bar at an angle of 45 degrees with a round cross-section ⌀ 40 mm / 1.6".
Available in lengths: 1200 / 47.2", 1600 / 63", 1800 mm / 70.9".

Z18
Black, designer handle.
Available in length 480 mm / 18.9".

Z20
Black T-bar with an interesting design
Available in length 498 mm / 19.6".

Z32
Black T-bar with an interesting curve that can also be used for all-glass doors
Available in length 499 mm / 19.6".

Z24
Black, oval handle
Width 450 mm/ 17.7"

Z52
T-bar round z52 copper
⌀ 198 mm / 7.8"

Z53
T-bar round z53 silvershine
⌀ 198 mm / 7.8"

Z54
T-bar round z54 slivergalaxy
⌀ 198 mm / 7.8"

Recessed
T-bar recessed
Available in lengths: 1200 mm / 47.2" and 1800 mm / 70.9"

Multipoint locking system Fuhr 835

Automatic multipoint locking system with a deadlocking latch.

Fuhr lock is the excellent locking system that guarantees comfort as well as security. The lock function ensures reliable, automatic locking and protection against uninvited guests. All you have to do is pull the door closed.

After closing the door, our three-point locking system protects against door warping, offering long-lasting seal tightness and a thermal efficiency.



The most important features:

Increased security – due to automatic locking there is no need for conventional locking with using a key.

Convenient opening – Effortless key operation thanks to two-stage opening sequence from the outside or using the lever handle from the inside.

Increased heat insulation – The multipoint locking system prevents the door from warping to ensure consistent seal tightness around the whole door leaf/slab.

Reliability and durability – long service life is guaranteed and has been tested with over 200,000 cycles.



Locking the lock:
  • After closing the door, the latch in the main lock and additional bolts automatically lock the door.
  • A single turn of the key causes the bolt of the main lock to be activated.
Unlocking the lock:
  • Turning the key once withdraws both lock and bolts. Pressing the handle down causes the latch to be automatically released and allows to open the door.



Class A insert 6.D.C cylinder with keys

Durability: 100 000 cycles
Security rating: Class 6 the highest
Attack resistance: Class D the highest
Burglar resistance: Class C the highest

Certified, cylindrical, profiled 9-ratchet insert (two rows of latches). Innovative anti-drill and anti-picking protection. Inserts resistant to bumping. 5 keys included, key code card.

Write Your Own Review
You're reviewing:PIVOT W322 - aluminum exterior anti-burglary pivot door
Your Rating

The PIVOT W322 aluminum exterior anti-burglary pivot door is a cutting-edge security solution designed to provide exceptional protection without compromising on style or functionality. Engineered specifically for exterior applications, this pivot door combines robust construction, advanced anti-burglary features, and sleek modern design to deliver a reliable, high-performance entry system ideal for residential, commercial, and institutional buildings where security and aesthetics are equally important.

At the heart of the PIVOT W322 is its innovative pivot mechanism, allowing the door to rotate smoothly around a fixed vertical axis. Unlike traditional hinged doors, the pivot design enables the installation of larger and heavier door panels, which not only creates an impressive architectural statement but also enhances security by reducing vulnerable hinge points. The carefully engineered pivot hardware ensures stable, balanced operation, even for oversized doors, providing effortless opening and closing while maintaining optimal safety.

Constructed from premium-grade aluminum, the PIVOT W322 offers exceptional strength, durability, and resistance to environmental factors such as corrosion, UV exposure, and extreme weather conditions. Aluminum’s lightweight yet sturdy nature makes it an ideal material for a high-security door, allowing the PIVOT W322 to support reinforced glazing and additional security features without sacrificing ease of use or longevity. Its sleek, minimalist frame design maximizes visible glass area, blending security with contemporary architectural aesthetics.

Security is the defining characteristic of the PIVOT W322. The door is engineered with multi-layered anti-burglary protections, including reinforced aluminum profiles, tamper-resistant pivot hardware, and advanced locking systems that provide multiple locking points along the door frame. This multi-point locking mechanism significantly increases resistance to forced entry attempts, enhancing the overall integrity of the door. Additionally, the PIVOT W322 can be fitted with laminated or toughened security glass options that not only resist impact but also prevent break-ins and vandalism, ensuring peace of mind for property owners.

Thermal efficiency is also a key aspect of the PIVOT W322 design. The door incorporates high-performance thermal breaks within its aluminum profiles and premium weather seals to minimize heat transfer and air infiltration. This helps maintain consistent indoor temperatures, reduces energy costs, and increases occupant comfort. The door’s compatibility with double or triple-glazed insulated glass units further enhances its thermal performance and sound insulation, making it suitable for use in a variety of climates and settings.

Customization options for the PIVOT W322 are extensive, allowing architects and designers to tailor the door’s appearance and performance to meet specific project requirements. A wide range of powder-coated finishes and colors are available to complement any building façade, while handle styles and hardware accessories can be chosen to match the desired aesthetic and functional preferences. This flexibility ensures that the PIVOT W322 not only meets security demands but also integrates seamlessly into diverse architectural styles.

Maintenance of the PIVOT W322 aluminum exterior anti-burglary pivot door is straightforward and hassle-free. The corrosion-resistant aluminum frame and durable finishes require minimal upkeep, typically limited to regular cleaning to preserve the door’s appearance and ensure smooth operation. The high-quality hardware components are designed for long-term reliability, reducing the need for frequent repairs or replacements.

In summary, the PIVOT W322 aluminum exterior anti-burglary pivot door is a state-of-the-art security entrance solution that combines innovative pivot technology, superior strength, advanced anti-burglary features, and elegant design. It offers a compelling balance of safety, durability, energy efficiency, and aesthetic appeal, making it an excellent choice for any project where robust exterior security and modern architectural style are paramount. Whether protecting homes, offices, or public buildings, the PIVOT W322 stands as a reliable and visually striking gateway.
