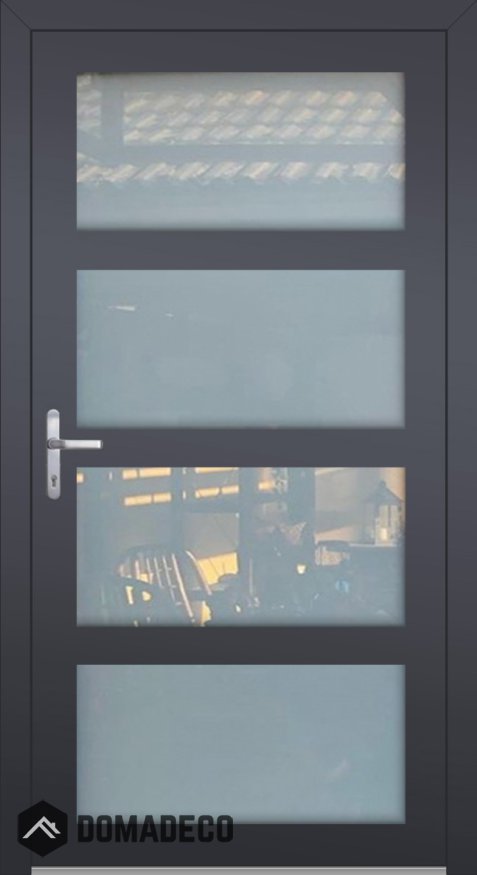

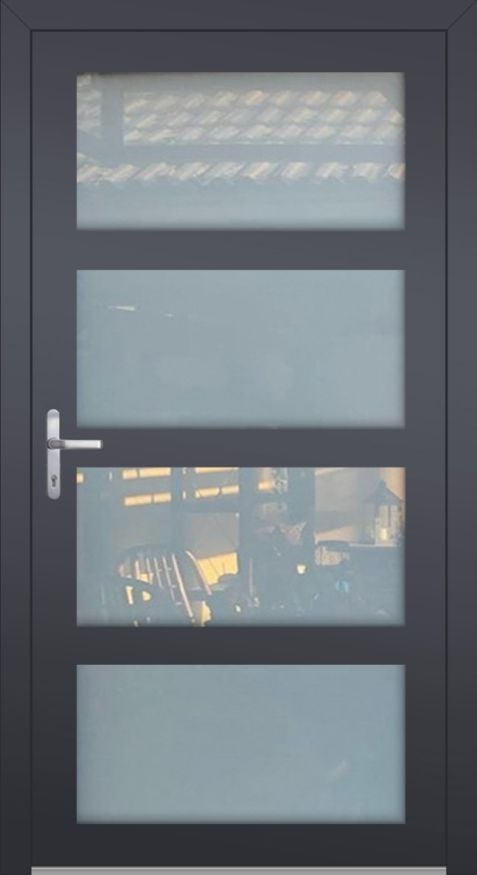

LIM C9 - glass aluminum front door

SKU
LIM C9
Rating:
100 % of 100
1  Review Add Your Review
AVAILABLE
$5,607.00

The price includes TAX & shipping

Click here to select the configuration

Doors are manufactured after the order has been placed through the website.
Production time for our doors:
door named LIM (aluminum) - production takes 6 weeks
door named STA (stainless steel) - production takes 4 weeks
door named FARGO (stainless steel) - production takes 7 weeks

Size door with frame:
Width from: 35.4" to 61"
Height from: 78.7" to 112.6"

Available door colors:
 anthracite, white, black, silver gray, red, blue, yellow, brown, green, walnut, wenge, golden oak, mahogany, custom from RAL palette

Our exterior doors with hinges on the side are hurricane impact rated. (for more details please contact us)

You can order this door model in a smaller size. View Pivot C9

Specification

The multi-point lock FUHR is used for locking. It has many locking and control configurations.
Hinges: the choice of wing or roller hinges and concealed hinges.
Glazing in the door leaf: triple glazing glass
Thickness of polyurethane foam in the leaf: 2.7"
Thermal insulation: R-Value 8.3
Sound insulation: 30dB

The door set includes:

- Aluminum door and the door frame;
- door handle made of stainless steel;
- 3-part roller hinges in the same color as the door;
- Multipoint locking system 855GL : full locking in 7 points, - 2 hooks, - 4 bolts plus upper bolt
- Threshold strip 0.6" height;
- anti-burglary class lock insert with 5 keys.

Full door information

The door is already mounted onto the frame (prehung door), which saves you all the work. The door is completely ready for installation.

The picture showing how to take the measurement. Click here
The installation space between the frame and the wall can be between 0.2" to 0.8" on each side.
Frequently Asked Questions: click here to check

-
+
$5,607.00

The price includes TAX & shipping

Wish List
Email
We found other products you might like!

Profile construction

Specification

  • frame depth: 70 mm / 2.76 inch ,
  • Thermal insulation: Ud = 1.0 W/(m2*K) / R-Value 5.6
  • The multi-point lock FUHR is used for locking
  • Thickness of polyurethane foam in the leaf: 48 mm / 1.9"

The door set includes:

  • Aluminum door and the door frame;
  • door handles made of stainless steel;
  • roller hinges in the same color as the door
  • Multipoint locking system 855GL : full locking in 7 points, - 2 hooks, - 4 bolts plus upper bolt
  • Threshold strip 15 mm / 0.59" height;
  • anti-burglary class lock insert with 5 keys.

Glazing

The glass in our doors are triple-pane windows. All panes are connected with spacer frames. Two of them are covered with Low-E coatings that provide natural light while helping to limit heat gain and thermal energy loss. It is also possible to choose P4 anti-burglary glass or safety glass VSG 33.1

standard glazing package 4th/16Ar/4/16Ar/4th

safety glass 33.1//4//4

P4 anti-burglary

Types of glazing

There is a wide range of glass options. In our offer one will find energy-saving, sound-absorbing, safety, anti-burglary and sunscreen windows. The most popular ones are milk glass, decorative or mirror glass as well as bronze reflex glass.

Colours

Colours can emphasise the shape of aluminium joinery and provide it with individual character and genuine appearance. All aluminium systems offered are available in two colour palettes – RAL and DECORAL.
RAL Basic colour palette.

Fiery red or maybe a delicate blue? The RAL K5 Classic colour palette will allow you to choose the colour of the door perfectly suited to your requirements!



RAL 1003

RAL 2004

RAL 3020

RAL 5002

RAL 6005

RAL 6021

RAL 7016

RAL 7039

RAL 7040

RAL 9016

RAL 9005

RAL 9007

DECORAL woodgrain finish palette

Aluminium doors can also have more traditional, woodlike finishes such as: beech, sweet cherry, golden oak, winchester, mahogany, walnut, dark oak, pine, cherry, wenge.



Golden Oak

Mahogany

Walnut

Wenge

Beech

Roller hinges WR WALA

WR WALA are minimalistic, modern looking, high quality roller hinges. They have been tested and are certified by the German IFT ROSENHEIM. Hinges are protected by patent law and can be adjusted: vertically: -5 to 5mm / -0.2" to 0.2", gap: -2.5 to 2.5 mm / -0.1" to 0.1" , seal pressure: -1.5 to 1.5 mm / -0.05" to 0.05" . When it comes to finish they are available in stainless steel or any colour from the RAL palette (hinges will be painted in the same colour as the door). Depending on the door height there are at least 3 hinges per door leaf/slab.

greenteQ handles

QreenteQ handles are made of anodized aluminum with high resistance to corrosion, weather conditions and scratches.
The INOX version is made of matt stainless steel.
Handle with fixed/rotary bearing and return spring mechanism adapted to the pin square 8 mm / 0.3".
TThe escutcheon/cover plate is 35 mm / 0.14" wide.

T-bar - long vertical handle or normal handle:

Stainless steel door handles are designed for one or two-sided use for external doors.
The innovative mounting system enables quick and easy installation of the door handle. Our offer includes many handrails:




Q45
T-bar at an angle of 45 degrees with a square section of 40 × 40 mm / 1.6"x1.6"
Available in lengths: 1200 / 47.2", 1500 / 59", 1800 mm / 70.9".

P45
T-bar at an angle of 45 degrees with a round cross-section ⌀ 40 mm / 1.6".
Available in lengths: 1200 / 47.2", 1500 / 59", 1800 mm / 70.9".

Z32
Black T-bar with an interesting curve that can also be used for all-glass doors
Available in length 499 mm / 19.6".

Multi-point lock Hook-bolts 855GL type-11

  • steel hooks and pins
  • Three-dimensional locking with integrated hooks and metal pins for optimal security.
  • Pressure adjustment.

Class A insert 6.D.C cylinder with keys

Durability: 100 000 cycles
Security rating: Class 6 the highest
Attack resistance: Class D the highest
Burglar resistance: Class C the highest

Certified, cylindrical, profiled 9-ratchet insert (two rows of latches).
Innovative anti-drill and anti-picking protection.
Inserts resistant to bumping. 5 keys included, key code card.

Write Your Own Review
You're reviewing:LIM C9 - glass aluminum front door
Your Rating

Enhance the aesthetic appeal of your home while ensuring security and style with the exquisite LIM C9 glass aluminum front door. This premium entrance solution combines the timeless elegance of glass with the sleek sophistication of aluminum, creating a striking focal point for your property's exterior.

Crafted with meticulous attention to detail, the LIM C9 front door features a contemporary design that seamlessly blends form and function. The high-quality aluminum frame provides durability and strength, while the glass panels allow natural light to filter through, creating a welcoming and inviting atmosphere in your entryway.

The LIM C9 front door is a true masterpiece of modern design, offering a perfect balance of transparency and privacy. The elegant glass panels not only add a touch of luxury to your home but also serve as a stylish statement piece that elevates the overall look of your property.

Designed for both beauty and security, the LIM C9 front door is as practical as it is visually appealing. The sturdy aluminum construction ensures long-lasting performance, while the glass panels are tempered for added safety and peace of mind.

With its clean lines, contemporary aesthetic, and superior craftsmanship, the LIM C9 glass aluminum front door is sure to impress even the most discerning homeowners. Whether you prefer a sleek and minimalist look or a more modern and avant-garde style, this door is a versatile choice that can be customized to suit your unique design preferences.

Transform your home's entrance into a showcase of modern elegance with the LIM C9 glass aluminum front door. Make a statement with your entryway and create a welcoming and secure living environment that reflects your impeccable taste and attention to detail. Experience the perfect fusion of beauty, functionality, and security with the LIM C9 front door – a true masterpiece of contemporary design.
