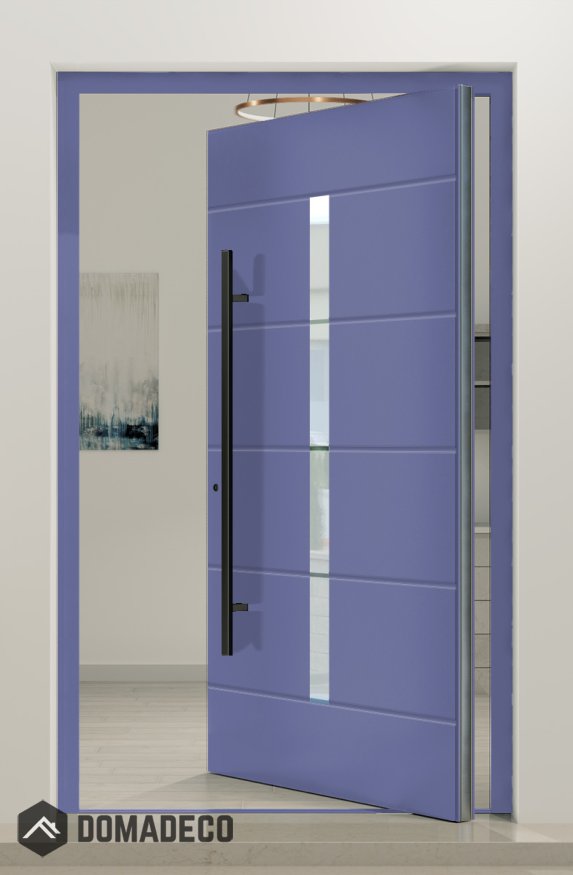

PIVOT AP16 - aluminium affordable pivot door

SKU
PIVOT AP16
Rating:
100 % of 100
2  Reviews Add Your Review
AVAILABLE
$10,120.00

The price includes TAX & shipping

Click here to select the configuration

Doors are manufactured after the order has been placed through the website.
Production time for our doors:
door named PIVOT (aluminum) - production takes 6 weeks

Size pivot door with frame:
Width from: 55.1" to 78"
Height from: 78.7" to 116"

Available door colors:
anthracite, white, black, silver gray, red, blue, yellow, brown, green, walnut, wenge, golden oak, mahogany, custom from RAL palette

You can order this door model in a smaller size. View LIM AP16

Technical specifications

Air tightness max. test pressure 4 (600 Pa)
Water tightness 4A (150 Pa)
Wind load resistance C3 (1200 Pa)
Burglar resistance RC2/WK2
Thermal insulation R-Value 6.8

The door set includes:

- Aluminum pivot door and the door frame;
- the door handle;
- FUHR 835 4-point lock
- low threshold door
- Standard lock insert with 5 keys.

Full door information

The door is already mounted onto the frame (prehung door), which saves you all the work. The door is completely ready for installation.

The picture showing how to take the measurement. Click here
The installation space between the frame and the wall can be between 0.2" to 0.8" on each side
Frequently Asked Questions: click here to check

-
+
$10,120.00

The price includes TAX & shipping

Wish List
Email
We found other products you might like!

Technical specifications:

  • frame depth door: 78 mm / 3.1",
  • Depth Vent: 78 mm / 3.1"
  • Air tightness: Class 4 (600Pa)
  • Wind load resistance: Class C3 (1200Pa)
  • Water tightness: Class 4A (150Pa)
  • Opening & closing resistance: Class 5
  • standard glazing package 4th/16Ar/4/16Ar/4th [Ug=0,6]*
  • Burglar resistance: RC2
  • Thermal insulation: Ud = 0.83 W/K*m2 / R-Value 6.8

The door set includes:

  • Aluminium pivot door and the door frame;
  • the door handle;
  • FUHR 833 3-point lock
  • low threshold door
  • standard lock insert with 5 keys.
Pivot door in full glass version

Pivot door with an aluminum overlay panel

Glazing

The glass in our doors are triple-pane windows. All panes are connected with spacer frames. Two of them are covered with Low-E coatings that provide natural light while helping to limit heat gain and thermal energy loss. It is also possible to choose P4 anti-burglary glass or safety glass VSG 33.1

standard glazing package 4th/16Ar/4/16Ar/4th

safety glass 33.1//4//4

P4 anti-burglary

Types of glazing

There is a wide range of glass options. In our offer one will find energy-saving, sound-absorbing, safety, anti-burglary and sunscreen windows. The most popular ones are milk glass, decorative or mirror glass as well as bronze reflex glass.

Colours

Colours can emphasise the shape of aluminium joinery and provide it with individual character and genuine appearance. All aluminium systems offered are available in two colour palettes – RAL and DECORAL.
RAL Basic colour palette.

Fiery red or maybe a delicate blue? The RAL K5 Classic colour palette will allow you to choose the colour of the door perfectly suited to your requirements!



RAL 1003

RAL 2004

RAL 3020

RAL 5002

RAL 6005

RAL 6021

RAL 7016

RAL 7039

RAL 7040

RAL 9016

RAL 9005

RAL 9007

Touch line handles

Touch line handles are made of the highest quality materials. They are available in anodized versions (covered with a layer of aluminum oxide) and powder coated in the entire range of the RAL palette (400 + colors).

Sublime, timeless design makes these elegant handles emphasize the appearance of each door.

T-bar - long vertical handle or normal handle:

Stainless steel door handles are designed for one or two-sided use for external doors.
The innovative mounting system enables quick and easy installation of the door handle. Our offer includes many handrails:




Q10
T-bar with a square section of 40×40 mm / 1.6"x1.6".
Available in lengths: 1200 / 47.2", 1600 / 63", 1800 mm / 70.9".

Q45
T-bar at an angle of 45 degrees with a square section of 40 × 40 mm / 1.6"x1.6"
Available in lengths: 1200 / 47.2", 1600 / 63", 1800 mm / 70.9".

P10
T-bar with a round cross-section ⌀ 40 mm / 1.6" .
Available in lengths: 1200 / 47.2", 1600 / 63", 1800 mm / 70.9"

P45
T-bar at an angle of 45 degrees with a round cross-section ⌀ 40 mm / 1.6".
Available in lengths: 1200 / 47.2", 1600 / 63", 1800 mm / 70.9".

Z18
Black, designer handle.
Available in length 480 mm / 18.9".

Z20
Black T-bar with an interesting design
Available in length 498 mm / 19.6".

Z32
Black T-bar with an interesting curve that can also be used for all-glass doors
Available in length 499 mm / 19.6".

Z24
Black, oval handle
Width 450 mm/ 17.7"

Z52
T-bar round z52 copper
⌀ 198 mm / 7.8"

Z53
T-bar round z53 silvershine
⌀ 198 mm / 7.8"

Z54
T-bar round z54 slivergalaxy
⌀ 198 mm / 7.8"

Recessed
T-bar recessed
Available in lengths: 1200 mm / 47.2" and 1800 mm / 70.9"

Multipoint locking system Fuhr 835

Automatic multipoint locking system with a deadlocking latch.

Fuhr lock is the excellent locking system that guarantees comfort as well as security. The lock function ensures reliable, automatic locking and protection against uninvited guests. All you have to do is pull the door closed.

After closing the door, our three-point locking system protects against door warping, offering long-lasting seal tightness and a thermal efficiency.



The most important features:

Increased security – due to automatic locking there is no need for conventional locking with using a key.

Convenient opening – Effortless key operation thanks to two-stage opening sequence from the outside or using the lever handle from the inside.

Increased heat insulation – The multipoint locking system prevents the door from warping to ensure consistent seal tightness around the whole door leaf/slab.

Reliability and durability – long service life is guaranteed and has been tested with over 200,000 cycles.



Locking the lock:
  • After closing the door, the latch in the main lock and additional bolts automatically lock the door.
  • A single turn of the key causes the bolt of the main lock to be activated.
Unlocking the lock:
  • Turning the key once withdraws both lock and bolts. Pressing the handle down causes the latch to be automatically released and allows to open the door.



Class A insert 6.D.C cylinder with keys

Durability: 100 000 cycles
Security rating: Class 6 the highest
Attack resistance: Class D the highest
Burglar resistance: Class C the highest

Certified, cylindrical, profiled 9-ratchet insert (two rows of latches). Innovative anti-drill and anti-picking protection. Inserts resistant to bumping. 5 keys included, key code card.

Write Your Own Review
You're reviewing:PIVOT AP16 - aluminium affordable pivot door
Your Rating

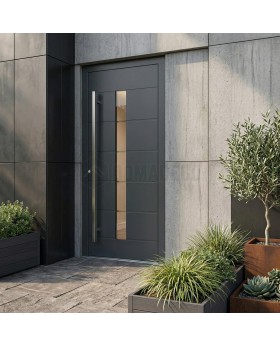

The PIVOT AP16 is an affordable aluminum pivot door that perfectly blends modern design, functional innovation, and cost-effectiveness, making it an excellent choice for homeowners, architects, and designers looking to elevate entryways without compromising on quality or style. This door offers a unique pivoting mechanism that adds a dynamic architectural element to any space, creating a striking focal point that enhances both residential and commercial properties with its contemporary appeal and practical benefits.

Crafted from high-quality aluminum, the PIVOT AP16 boasts a sturdy yet lightweight frame that ensures long-lasting durability and resistance to corrosion, warping, and everyday wear. Aluminum’s inherent strength allows the door to accommodate larger dimensions and heavier glass panels compared to traditional hinged doors, enabling expansive openings that flood interiors with natural light and foster seamless indoor-outdoor connections. Despite its robust construction, the PIVOT AP16 remains remarkably easy to operate thanks to its expertly engineered pivot hardware that enables smooth, effortless rotation around a central or offset axis.

The affordable nature of the PIVOT AP16 does not come at the expense of design versatility or performance. Its sleek, minimalist aluminum frame features clean lines and a slim profile that harmonizes with a wide range of architectural styles, from ultra-modern to transitional. The door can be customized with various finishes including powder-coated colors and anodized options, allowing for precise coordination with exterior palettes and design themes to achieve a truly personalized look. Additionally, the door can be paired with an array of glazing options, including clear, frosted, or tinted glass, to enhance privacy, light transmission, and aesthetic appeal.

Thermal efficiency and weather resistance are thoughtfully integrated into the PIVOT AP16’s design. While keeping affordability in focus, the door incorporates effective sealing systems and quality materials that minimize air infiltration and protect against moisture and drafts. This ensures comfortable indoor environments and contributes to energy savings throughout the year. The pivot mechanism is engineered for stability and durability, providing reliable performance and smooth operation even with frequent use and large door sizes.

Security is a key consideration in the PIVOT AP16, with reinforced aluminum profiles and quality locking hardware that offer a secure barrier against unauthorized access. The door’s robust construction and precision fittings work together to provide peace of mind without sacrificing aesthetic elegance or ease of use.

Ease of installation and maintenance further enhance the value proposition of the PIVOT AP16. Its thoughtfully designed components and straightforward mounting system allow for efficient installation, reducing labor costs and project timelines. The durable aluminum finish resists fading, chipping, and corrosion, requiring minimal upkeep to maintain its fresh, modern appearance over time.

In summary, the PIVOT AP16 affordable aluminum pivot door is a smart choice for anyone seeking a contemporary, stylish, and functional entry solution that fits within a budget. Combining the strength and durability of aluminum with innovative pivot hardware and customizable design options, it delivers a visually captivating entrance that elevates the character of any building while ensuring lasting performance and value. Whether used in residential homes, commercial buildings, or creative architectural projects, the PIVOT AP16 stands out as an elegant, practical, and cost-effective pivot door option.
