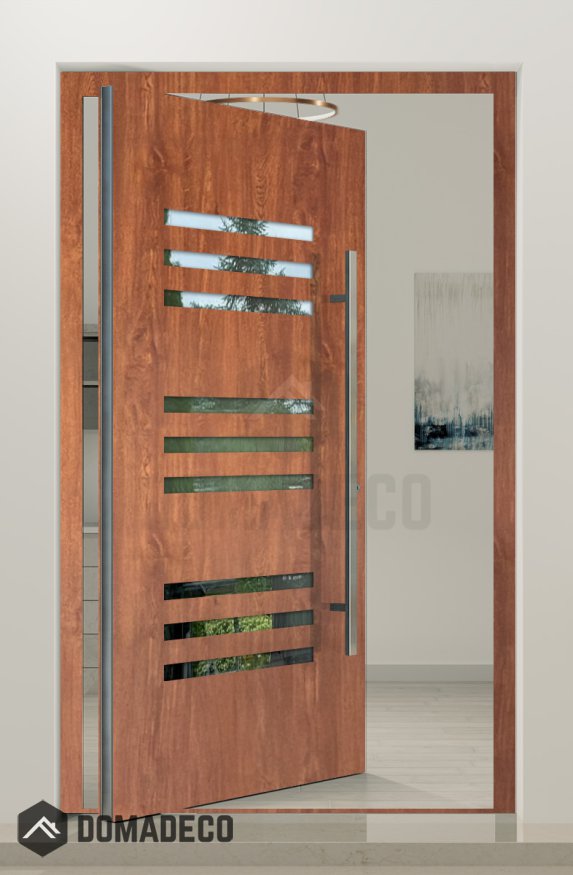

PIVOT C24 - aluminum pivot front door with vertical windows

SKU
PIVOT C24
Be the first to review this product
AVAILABLE
$10,120.00

The price includes TAX & shipping

Click here to select the configuration

Doors are manufactured after the order has been placed through the website.
Production time for our doors:
door named PIVOT (aluminum) - production takes 6 weeks

Size pivot door with frame:
Width from: 55.1" to 78"
Height from: 78.7" to 116"

Available door colors:
anthracite, white, black, silver gray, red, blue, yellow, brown, green, walnut, wenge, golden oak, mahogany, custom from RAL palette

You can order this door model in a smaller size. View LIM C24

Technical specifications

Air tightness max. test pressure 4 (600 Pa)
Water tightness 4A (150 Pa)
Wind load resistance C3 (1200 Pa)
Burglar resistance RC2/WK2
Thermal insulation R-Value 6.8

The door set includes:

- Aluminum pivot door and the door frame;
- the door handle;
- FUHR 835 4-point lock
- low threshold door
- Standard lock insert with 5 keys.

Full door information

The door is already mounted onto the frame (prehung door), which saves you all the work. The door is completely ready for installation.

The picture showing how to take the measurement. Click here
The installation space between the frame and the wall can be between 0.2" to 0.8" on each side
Frequently Asked Questions: click here to check

-
+
$10,120.00

The price includes TAX & shipping

Wish List
Email
We found other products you might like!

Technical specifications:

  • frame depth door: 78 mm / 3.1",
  • Depth Vent: 78 mm / 3.1"
  • Air tightness: Class 4 (600Pa)
  • Wind load resistance: Class C3 (1200Pa)
  • Water tightness: Class 4A (150Pa)
  • Opening & closing resistance: Class 5
  • standard glazing package 4th/16Ar/4/16Ar/4th [Ug=0,6]*
  • Burglar resistance: RC2
  • Thermal insulation: Ud = 0.83 W/K*m2 / R-Value 6.8

The door set includes:

  • Aluminium pivot door and the door frame;
  • the door handle;
  • FUHR 833 3-point lock
  • low threshold door
  • standard lock insert with 5 keys.
Pivot door in full glass version

Pivot door with an aluminum overlay panel

Glazing

The glass in our doors are triple-pane windows. All panes are connected with spacer frames. Two of them are covered with Low-E coatings that provide natural light while helping to limit heat gain and thermal energy loss. It is also possible to choose P4 anti-burglary glass or safety glass VSG 33.1

standard glazing package 4th/16Ar/4/16Ar/4th

safety glass 33.1//4//4

P4 anti-burglary

Types of glazing

There is a wide range of glass options. In our offer one will find energy-saving, sound-absorbing, safety, anti-burglary and sunscreen windows. The most popular ones are milk glass, decorative or mirror glass as well as bronze reflex glass.

Colours

Colours can emphasise the shape of aluminium joinery and provide it with individual character and genuine appearance. All aluminium systems offered are available in two colour palettes – RAL and DECORAL.
RAL Basic colour palette.

Fiery red or maybe a delicate blue? The RAL K5 Classic colour palette will allow you to choose the colour of the door perfectly suited to your requirements!



RAL 1003

RAL 2004

RAL 3020

RAL 5002

RAL 6005

RAL 6021

RAL 7016

RAL 7039

RAL 7040

RAL 9016

RAL 9005

RAL 9007

Touch line handles

Touch line handles are made of the highest quality materials. They are available in anodized versions (covered with a layer of aluminum oxide) and powder coated in the entire range of the RAL palette (400 + colors).

Sublime, timeless design makes these elegant handles emphasize the appearance of each door.

T-bar - long vertical handle or normal handle:

Stainless steel door handles are designed for one or two-sided use for external doors.
The innovative mounting system enables quick and easy installation of the door handle. Our offer includes many handrails:




Q10
T-bar with a square section of 40×40 mm / 1.6"x1.6".
Available in lengths: 1200 / 47.2", 1600 / 63", 1800 mm / 70.9".

Q45
T-bar at an angle of 45 degrees with a square section of 40 × 40 mm / 1.6"x1.6"
Available in lengths: 1200 / 47.2", 1600 / 63", 1800 mm / 70.9".

P10
T-bar with a round cross-section ⌀ 40 mm / 1.6" .
Available in lengths: 1200 / 47.2", 1600 / 63", 1800 mm / 70.9"

P45
T-bar at an angle of 45 degrees with a round cross-section ⌀ 40 mm / 1.6".
Available in lengths: 1200 / 47.2", 1600 / 63", 1800 mm / 70.9".

Z18
Black, designer handle.
Available in length 480 mm / 18.9".

Z20
Black T-bar with an interesting design
Available in length 498 mm / 19.6".

Z32
Black T-bar with an interesting curve that can also be used for all-glass doors
Available in length 499 mm / 19.6".

Z24
Black, oval handle
Width 450 mm/ 17.7"

Z52
T-bar round z52 copper
⌀ 198 mm / 7.8"

Z53
T-bar round z53 silvershine
⌀ 198 mm / 7.8"

Z54
T-bar round z54 slivergalaxy
⌀ 198 mm / 7.8"

Recessed
T-bar recessed
Available in lengths: 1200 mm / 47.2" and 1800 mm / 70.9"

Multipoint locking system Fuhr 835

Automatic multipoint locking system with a deadlocking latch.

Fuhr lock is the excellent locking system that guarantees comfort as well as security. The lock function ensures reliable, automatic locking and protection against uninvited guests. All you have to do is pull the door closed.

After closing the door, our three-point locking system protects against door warping, offering long-lasting seal tightness and a thermal efficiency.



The most important features:

Increased security – due to automatic locking there is no need for conventional locking with using a key.

Convenient opening – Effortless key operation thanks to two-stage opening sequence from the outside or using the lever handle from the inside.

Increased heat insulation – The multipoint locking system prevents the door from warping to ensure consistent seal tightness around the whole door leaf/slab.

Reliability and durability – long service life is guaranteed and has been tested with over 200,000 cycles.



Locking the lock:
  • After closing the door, the latch in the main lock and additional bolts automatically lock the door.
  • A single turn of the key causes the bolt of the main lock to be activated.
Unlocking the lock:
  • Turning the key once withdraws both lock and bolts. Pressing the handle down causes the latch to be automatically released and allows to open the door.



Class A insert 6.D.C cylinder with keys

Durability: 100 000 cycles
Security rating: Class 6 the highest
Attack resistance: Class D the highest
Burglar resistance: Class C the highest

Certified, cylindrical, profiled 9-ratchet insert (two rows of latches). Innovative anti-drill and anti-picking protection. Inserts resistant to bumping. 5 keys included, key code card.

Write Your Own Review
You're reviewing:PIVOT C24 - aluminum pivot front door with vertical windows
Your Rating

The PIVOT C24 is a striking aluminum pivot front door designed to redefine the entrance experience with its modern elegance and innovative functionality. Engineered for homeowners and architects who value contemporary design and superior performance, this door combines sleek aesthetics with robust construction, making it an exceptional choice for creating a bold and inviting entryway.

The hallmark of the PIVOT C24 is its distinctive pivot mechanism, which allows the door to rotate smoothly on a central or offset pivot point rather than traditional side hinges. This unique operation not only adds a dramatic architectural feature but also enables wider openings and effortless movement, enhancing accessibility and flow between indoor and outdoor spaces. The pivot design gives the door a floating appearance, contributing to a minimalist yet impactful statement that transforms any façade.

Constructed from premium-grade aluminum, the PIVOT C24 boasts outstanding durability, corrosion resistance, and low maintenance requirements. Aluminum’s lightweight yet strong properties ensure that the door remains sturdy and reliable over time, even in harsh weather conditions or high-traffic environments. This makes the PIVOT C24 an ideal solution for both residential and commercial entrances where performance and longevity are paramount.

The door’s design is further elevated by the inclusion of sleek vertical windows integrated thoughtfully along its length. These narrow, tall glass panels introduce natural light into the entryway, creating a bright and welcoming atmosphere inside while maintaining privacy and security. The vertical windows are crafted using high-performance glazing options, which provide excellent thermal insulation and soundproofing, helping to regulate indoor temperatures and reduce external noise for enhanced comfort and energy efficiency.

The surface finish of the PIVOT C24 is available in a variety of contemporary colours and textures, allowing you to customize the door to perfectly complement your architectural style and personal taste. Whether you prefer a bold, statement colour or a subtle, sophisticated tone, the high-quality powder-coated finish ensures long-lasting colour retention and resistance to fading, scratching, and weathering.

Extensive attention to security is evident in the design of the PIVOT C24. The door features advanced locking systems and reinforced frames to provide robust protection against forced entry, giving you peace of mind without compromising on aesthetic appeal. Additionally, the precision engineering of the pivot mechanism guarantees smooth operation and stability, ensuring that the door remains perfectly balanced and functional for years to come.

Customization options extend beyond colour and glazing, with a range of hardware styles and finishes available to tailor the door to your specific needs. From sleek minimalist handles to bold statement hardware, you can create a cohesive look that enhances the overall design harmony of your entrance.

In summary, the PIVOT C24 aluminum pivot front door with vertical windows is a sophisticated and innovative entrance solution that marries cutting-edge design with exceptional durability and security. Its dynamic pivot operation, combined with elegant vertical glazing and premium materials, makes it a perfect choice for those seeking to make a contemporary architectural statement while enjoying practical benefits like natural light, energy efficiency, and enhanced security. Elevate your property’s entrance with the PIVOT C24 and experience the perfect blend of style, function, and craftsmanship.
