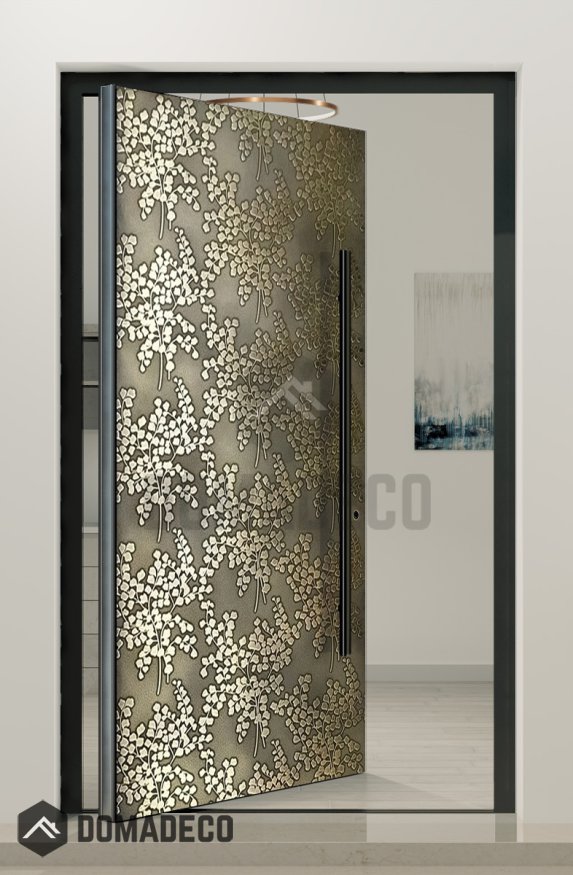

PIVOT M28 - aluminum pivot door with brass texture of milled metal

SKU
PIVOT M28
Be the first to review this product
AVAILABLE
$15,100.00

The price includes TAX & shipping

Click here to select the configuration

Doors are manufactured after the order has been placed through the website.
Production time for our doors:
door named PIVOT (aluminum) - production takes 6 weeks

Size pivot door with frame:
Width from: 55.1" to 78"
Height from: 78.7" to 116"

Available door colors:
anthracite, white, black, silver gray, red, blue, yellow, brown, green, walnut, wenge, golden oak, mahogany, custom from RAL palette

You can order this door model in a smaller size. View LIM M28

Technical specifications

Air tightness max. test pressure 4 (600 Pa)
Water tightness 4A (150 Pa)
Wind load resistance C3 (1200 Pa)
Burglar resistance RC2/WK2
Thermal insulation R-Value 6.8

The door set includes:

- Aluminum pivot door and the door frame;
- the door handle;
- FUHR 835 4-point lock
- low threshold door
- Standard lock insert with 5 keys.

Full door information

The door is already mounted onto the frame (prehung door), which saves you all the work. The door is completely ready for installation.

The picture showing how to take the measurement. Click here
The installation space between the frame and the wall can be between 0.2" to 0.8" on each side
Frequently Asked Questions: click here to check

-
+
$15,100.00

The price includes TAX & shipping

Wish List
Email
We found other products you might like!

Technical specifications:

  • frame depth door: 78 mm / 3.1",
  • Depth Vent: 78 mm / 3.1"
  • Air tightness: Class 4 (600Pa)
  • Wind load resistance: Class C3 (1200Pa)
  • Water tightness: Class 4A (150Pa)
  • Opening & closing resistance: Class 5
  • standard glazing package 4th/16Ar/4/16Ar/4th [Ug=0,6]*
  • Burglar resistance: RC2
  • Thermal insulation: Ud = 0.83 W/K*m2 / R-Value 6.8

The door set includes:

  • Aluminium pivot door and the door frame;
  • the door handle;
  • FUHR 833 3-point lock
  • low threshold door
  • standard lock insert with 5 keys.
Pivot door in full glass version

Pivot door with an aluminum overlay panel

Glazing

The glass in our doors are triple-pane windows. All panes are connected with spacer frames. Two of them are covered with Low-E coatings that provide natural light while helping to limit heat gain and thermal energy loss. It is also possible to choose P4 anti-burglary glass or safety glass VSG 33.1

standard glazing package 4th/16Ar/4/16Ar/4th

safety glass 33.1//4//4

P4 anti-burglary

Types of glazing

There is a wide range of glass options. In our offer one will find energy-saving, sound-absorbing, safety, anti-burglary and sunscreen windows. The most popular ones are milk glass, decorative or mirror glass as well as bronze reflex glass.

Colours

Colours can emphasise the shape of aluminium joinery and provide it with individual character and genuine appearance. All aluminium systems offered are available in two colour palettes – RAL and DECORAL.
RAL Basic colour palette.

Fiery red or maybe a delicate blue? The RAL K5 Classic colour palette will allow you to choose the colour of the door perfectly suited to your requirements!



RAL 1003

RAL 2004

RAL 3020

RAL 5002

RAL 6005

RAL 6021

RAL 7016

RAL 7039

RAL 7040

RAL 9016

RAL 9005

RAL 9007

Touch line handles

Touch line handles are made of the highest quality materials. They are available in anodized versions (covered with a layer of aluminum oxide) and powder coated in the entire range of the RAL palette (400 + colors).

Sublime, timeless design makes these elegant handles emphasize the appearance of each door.

T-bar - long vertical handle or normal handle:

Stainless steel door handles are designed for one or two-sided use for external doors.
The innovative mounting system enables quick and easy installation of the door handle. Our offer includes many handrails:




Q10
T-bar with a square section of 40×40 mm / 1.6"x1.6".
Available in lengths: 1200 / 47.2", 1600 / 63", 1800 mm / 70.9".

Q45
T-bar at an angle of 45 degrees with a square section of 40 × 40 mm / 1.6"x1.6"
Available in lengths: 1200 / 47.2", 1600 / 63", 1800 mm / 70.9".

P10
T-bar with a round cross-section ⌀ 40 mm / 1.6" .
Available in lengths: 1200 / 47.2", 1600 / 63", 1800 mm / 70.9"

P45
T-bar at an angle of 45 degrees with a round cross-section ⌀ 40 mm / 1.6".
Available in lengths: 1200 / 47.2", 1600 / 63", 1800 mm / 70.9".

Z18
Black, designer handle.
Available in length 480 mm / 18.9".

Z20
Black T-bar with an interesting design
Available in length 498 mm / 19.6".

Z32
Black T-bar with an interesting curve that can also be used for all-glass doors
Available in length 499 mm / 19.6".

Z24
Black, oval handle
Width 450 mm/ 17.7"

Z52
T-bar round z52 copper
⌀ 198 mm / 7.8"

Z53
T-bar round z53 silvershine
⌀ 198 mm / 7.8"

Z54
T-bar round z54 slivergalaxy
⌀ 198 mm / 7.8"

Recessed
T-bar recessed
Available in lengths: 1200 mm / 47.2" and 1800 mm / 70.9"

Multipoint locking system Fuhr 835

Automatic multipoint locking system with a deadlocking latch.

Fuhr lock is the excellent locking system that guarantees comfort as well as security. The lock function ensures reliable, automatic locking and protection against uninvited guests. All you have to do is pull the door closed.

After closing the door, our three-point locking system protects against door warping, offering long-lasting seal tightness and a thermal efficiency.



The most important features:

Increased security – due to automatic locking there is no need for conventional locking with using a key.

Convenient opening – Effortless key operation thanks to two-stage opening sequence from the outside or using the lever handle from the inside.

Increased heat insulation – The multipoint locking system prevents the door from warping to ensure consistent seal tightness around the whole door leaf/slab.

Reliability and durability – long service life is guaranteed and has been tested with over 200,000 cycles.



Locking the lock:
  • After closing the door, the latch in the main lock and additional bolts automatically lock the door.
  • A single turn of the key causes the bolt of the main lock to be activated.
Unlocking the lock:
  • Turning the key once withdraws both lock and bolts. Pressing the handle down causes the latch to be automatically released and allows to open the door.



Class A insert 6.D.C cylinder with keys

Durability: 100 000 cycles
Security rating: Class 6 the highest
Attack resistance: Class D the highest
Burglar resistance: Class C the highest

Certified, cylindrical, profiled 9-ratchet insert (two rows of latches). Innovative anti-drill and anti-picking protection. Inserts resistant to bumping. 5 keys included, key code card.

Write Your Own Review
You're reviewing:PIVOT M28 - aluminum pivot door with brass texture of milled metal
Your Rating

The PIVOT M28 is a luxurious aluminum pivot door that masterfully combines modern architectural innovation with the timeless elegance of brass-textured milled metal. Designed for discerning homeowners and commercial spaces seeking to make a sophisticated statement, this door embodies both cutting-edge functionality and exquisite craftsmanship, delivering a truly remarkable entrance experience.

The core structure of the PIVOT M28 is crafted from premium-grade aluminum, renowned for its exceptional strength, lightweight nature, and resistance to corrosion and wear. This ensures the door offers long-lasting durability and requires minimal maintenance, making it ideal for both contemporary homes and high-traffic commercial environments. The aluminum frame’s sleek, minimalist profile provides a perfect canvas for the rich, tactile finish that defines the PIVOT M28’s visual appeal.

What sets the PIVOT M28 apart is its striking brass-textured milled metal surface. This finish is meticulously crafted through an advanced milling process that engraves fine, precise textures into the brass layer, resulting in a unique interplay of light and shadow that enhances the door’s depth and character. The warm, golden hues of the brass texture evoke a sense of luxury and timeless sophistication, while the subtle milling patterns add a modern, industrial edge. This combination creates a door that is not only a functional entryway but also a captivating piece of architectural art.

The innovative pivot mechanism of the PIVOT M28 offers a smooth and graceful operation that differs from traditional hinged doors. Mounted on a central pivot point, the door swings open effortlessly in both directions, providing a wide, welcoming entrance and an impressive visual dynamic. This style of opening enhances accessibility and flow, making the door an ideal choice for expansive spaces where ease of movement and aesthetic impact are equally important.

In addition to its stunning appearance and innovative function, the PIVOT M28 is engineered for superior performance. The aluminum frame incorporates thermal breaks and weather seals that protect against drafts, moisture, and temperature fluctuations, ensuring excellent energy efficiency and indoor comfort. The robust construction is complemented by high-quality locking hardware designed to provide enhanced security without compromising the door’s sleek design.

Customization is a key feature of the PIVOT M28, allowing you to tailor the door to your specific design preferences and architectural requirements. Options include various finishes for both the aluminum frame and the brass-textured surface, multiple sizes and configurations, and a selection of hardware styles and finishes. This flexibility ensures that the PIVOT M28 can be perfectly integrated into a wide range of design schemes, from ultra-modern minimalist to sophisticated industrial elegance.

In summary, the PIVOT M28 aluminum pivot door with brass-textured milled metal is an exceptional fusion of style, innovation, and durability. It offers a bold and luxurious entrance solution that elevates any property with its rich textures, smooth pivot operation, and energy-efficient construction. Perfect for those who appreciate refined materials and cutting-edge design, the PIVOT M28 transforms ordinary doorways into extraordinary architectural features that captivate and inspire.
