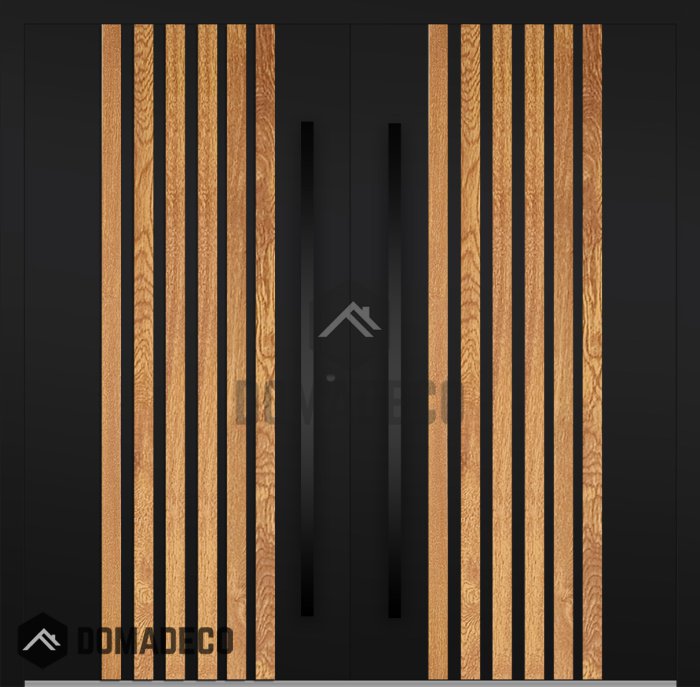

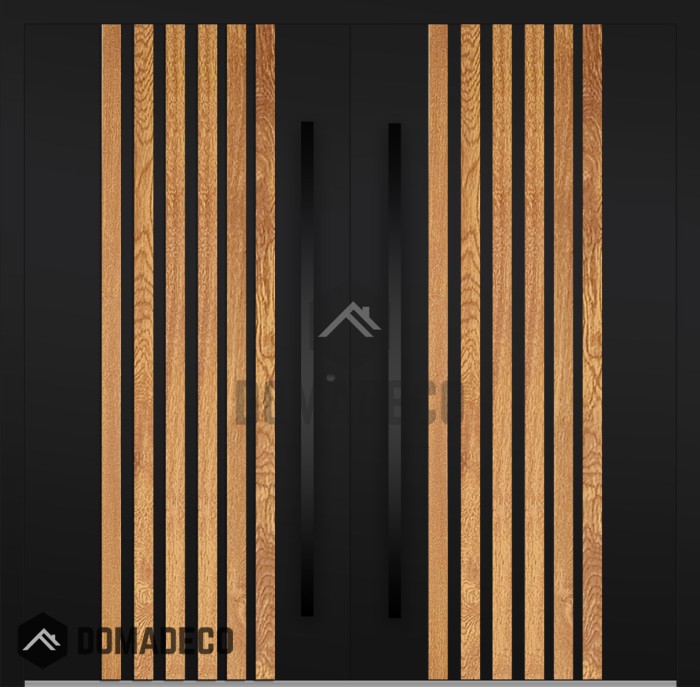

LIM RAIL 5 double - aluminum double front door with vertical slats made of aluminum profiles

SKU
LIM RAIL5 double
Rating:
100 % of 100
2  Reviews Add Your Review
AVAILABLE
$12,680.00

The price includes TAX & shipping

Click here to select the configuration

Doors are manufactured after the order has been placed through the website.
Production time for our doors:
door named LIM (aluminum) - production takes 6 weeks
door named STA (stainless steel) - production takes 4 weeks
door named FARGO (stainless steel) - production takes 7 weeks

Size door with frame:
Width from: 63" to 78.7"
Height from: 78.7" to 112.6"

Available door colors:
 anthracite, white, black, silver gray, red, blue, yellow, brown, green, walnut, wenge, golden oak, mahogany, custom from RAL palette

Our exterior doors with hinges on the side are hurricane impact rated. (for more details please contact us)

Specification

The multi-point lock FUHR is used for locking. It has many locking and control configurations.
Hinges: the choice of wing or roller hinges and concealed hinges.
Glazing in the door leaf: triple glazing glass
Thickness of polyurethane foam in the leaf: 2.8"
Thermal insulation: R-Value 8.3
Sound insulation: 30dB

The door set includes:

- Aluminum door and the door frame;
- door handle made of stainless steel;
- 3-part roller hinges in the same color as the door;
- Multipoint locking system 855GL : full locking in 7 points, - 2 hooks, - 4 bolts plus upper bolt
- Threshold strip 0.6" height;
- anti-burglary class lock insert with 5 keys.

Full door information

The door is already mounted onto the frame (prehung door), which saves you all the work. The door is completely ready for installation.

The picture showing how to take the measurement. Click here
The installation space between the frame and the wall can be between 0.2" to 0.8" on each side.
Frequently Asked Questions: click here to check

-
+
$12,680.00

The price includes TAX & shipping

Wish List
Email
We found other products you might like!

Profile construction

Technical specifications:

  • The multi-point lock FUHR is used for locking. It has many locking and control configurations.
  • Hinges: the choice of wing or roller hinges (WALA) and concealed hinges (WALA).
  • Glazing in the door leaf: triple glazing glass
  • Thickness of polyurethane foam in the leaf: 70 mm / 2.75"
  • Thermal insulation: Ud = 0.7 W/(m2*K) / R-Value 8.3
  • Sound insulation: 30dB

The door set includes:

  • Aluminium door and the door frame;
  • door handle made of stainless steel;
  • 3-part roller hinges in the same color as the door;
  • Multipoint locking system 855GL : full locking in 7 points, - 2 hooks, - 4 bolts plus upper bolt
  • Threshold strip 15 mm height;
  • Standard lock insert with 5 keys.

Glazing

The glass in our doors are triple-pane windows. All panes are connected with spacer frames. Two of them are covered with Low-E coatings that provide natural light while helping to limit heat gain and thermal energy loss. It is also possible to choose P4 anti-burglary glass or safety glass VSG 33.1

standard glazing package 4th/16Ar/4/16Ar/4th

safety glass 33.1//4//4

P4 anti-burglary

Types of glazing

There is a wide range of glass options. In our offer one will find energy-saving, sound-absorbing, safety, anti-burglary and sunscreen windows. The most popular ones are milk glass, decorative or mirror glass as well as bronze reflex glass.

Light permeability of the glass:

- Milk – frosted glass 89%
- Mirror glass – 68 %
- Graphite reflex glass – 42 %

One way mirror glass has a thin layer of reflective coating which allows the glass to reflect half the light that hits it. Simultaneously, half the light also goes straight through. This makes the glass both reflective and transparent. During the day, the outside is bright which means that people who are outside are not able to see what is inside the house. However, during the night when the light is on, the one-way mirror turns into a window. People are able to see through the glass both ways.

To solve the issue, one can apply the one-way vision foil. The foil consists of hundreds of small holes enabling light penetration, which gives the effect of semi-transmission. It is usually used for advertisement on buses or windows.

Colours

Colours can emphasise the shape of aluminium joinery and provide it with individual character and genuine appearance. All aluminium systems offered are available in two colour palettes – RAL and DECORAL.
RAL Basic colour palette.

Fiery red or maybe a delicate blue? The RAL K5 Classic colour palette will allow you to choose the colour of the door perfectly suited to your requirements!



RAL 1003

RAL 2004

RAL 3020

RAL 5002

RAL 6005

RAL 6021

RAL 7016

RAL 7039

RAL 7040

RAL 9016

RAL 9005

RAL 9007

DECORAL woodgrain finish palette

Aluminium doors can also have more traditional, woodlike finishes such as: beech, sweet cherry, golden oak, winchester, mahogany, walnut, dark oak, pine, cherry, wenge.



Golden Oak

Mahogany

Walnut

Wenge

Beech

Wala Hidden Hinges

We use Wala hidden hinges that combine high durability, numerous assembly advantages and a discreet, elegant form. Hinges are invisible when the door is closed. The 3D adjustment function provides a convenient way of adjusting the pressure, height and side adjustment (left/right) of the door. Hinges allow for trouble-free installation and removal of the door leaf/slab. Depending on the door height there are at least 3 hinges per door leaf/slab.

Roller hinges WR WALA

WR WALA are minimalistic, modern looking, high quality roller hinges. They have been tested and are certified by the German IFT ROSENHEIM. Hinges are protected by patent law and can be adjusted: vertically: -5 to 5mm / -0.2" to 0.2", gap: -2.5 to 2.5 mm / -0.1" to 0.1" , seal pressure: -1.5 to 1.5 mm / -0.05" to 0.05" . When it comes to finish they are available in stainless steel or any colour from the RAL palette (hinges will be painted in the same colour as the door). Depending on the door height there are at least 3 hinges per door leaf/slab.

ALUPROF STYLE handles

ALUPROF handles are made of anodized aluminum with high resistance to corrosion, weather conditions and scratches.
The INOX version is made of matt stainless steel.
Handle with fixed/rotary bearing and return spring mechanism adapted to the pin square 8 mm / 0.3".
The escutcheon/cover plate is 33 mm / 0.14" wide.

T-bar - long vertical handle or normal handle:

Stainless steel door handles are designed for one or two-sided use for external doors.
The innovative mounting system enables quick and easy installation of the door handle. Our offer includes many handrails:




Q10
T-bar with a square section of 40×40 mm / 1.6"x1.6".
Available in lengths: 1200 / 47.2", 1500 / 59", 1800 mm / 70.9".

Q45
T-bar at an angle of 45 degrees with a square section of 40 × 40 mm / 1.6"x1.6"
Available in lengths: 1200 / 47.2", 1500 / 59", 1800 mm / 70.9".

P10
T-bar with a round cross-section ⌀ 40 mm / 1.6" .
Available in lengths: 1200 / 47.2", 1500 / 59", 1800 mm / 70.9"

P45
T-bar at an angle of 45 degrees with a round cross-section ⌀ 40 mm / 1.6".
Available in lengths: 1200 / 47.2", 1500 / 59", 1800 mm / 70.9".

Z18
Black, designer handle.
Available in length 480 mm / 18.9".

Z20
Black T-bar with an interesting design
Available in length 498 mm / 19.6".

Z32
Black T-bar with an interesting curve that can also be used for all-glass doors
Available in length 499 mm / 19.6".

Z24
Black, oval handle
Width 450 mm/ 17.7"

Z52
T-bar round z52 copper
⌀ 198 mm / 7.8"

Z53
T-bar round z53 silvershine
⌀ 198 mm / 7.8"

Z54
T-bar round z54 slivergalaxy
⌀ 198 mm / 7.8"

Recessed
T-bar recessed
Available in lengths: 1200 mm / 47.2" and 1800 mm / 70.9"

Multi-point lock Hook-bolts 855GL type-11

  • steel hooks and pins
  • Three-dimensional locking with integrated hooks and metal pins for optimal security.
  • Pressure adjustment.

Class A insert 6.D.C cylinder with keys

Durability: 100 000 cycles
Security rating: Class 6 the highest
Attack resistance: Class D the highest
Burglar resistance: Class C the highest

Certified, cylindrical, profiled 9-ratchet insert (two rows of latches).
Innovative anti-drill and anti-picking protection.
Inserts resistant to bumping. 5 keys included, key code card.



Write Your Own Review
You're reviewing:LIM RAIL 5 double - aluminum double front door with vertical slats made of aluminum profiles
Your Rating

The LIM RAIL 5 Double Aluminum Front Door with Vertical Slats is a premium entrance solution that masterfully blends contemporary design with advanced security and superior insulation properties. Crafted from high-quality aluminum profiles, this double front door features a striking vertical slat design that adds depth, texture, and a modern aesthetic to any building facade. Whether for residential or commercial use, the LIM RAIL 5 door offers a perfect combination of style, functionality, and durability, making it an excellent choice for those seeking a secure and energy-efficient entryway.

At the core of the LIM RAIL 5 door’s security is the state-of-the-art FUHR multi-point locking system 855GL, which provides full locking at seven distinct points—including two hooks, four bolts, and an additional upper bolt—ensuring a robust and tamper-resistant closure. This intricate locking mechanism is complemented by an anti-burglary class lock insert, supplied with five keys, which adds an extra layer of protection against unauthorized access. The door’s frame and leaf are engineered to precisely accommodate this multi-point locking system, delivering exceptional security without compromising on design or ease of use.

Constructed from durable aluminum, the door and frame are designed for long-lasting performance and resistance to weather-related wear such as corrosion and fading. The vertical slats, made from aluminum profiles, create an elegant facade that enhances the architectural character of any entryway. The door’s hardware is thoughtfully selected, featuring a stainless steel door handle that combines durability with a sleek, modern look. Additionally, the door is fitted with three-part roller hinges finished in the same color as the door, ensuring smooth operation and a cohesive, polished appearance. Customers have the flexibility to choose between wing hinges, roller hinges, or concealed hinges, allowing for customization based on aesthetic preference and functional requirements.

Thermal efficiency is a standout feature of the LIM RAIL 5 door. The door leaf incorporates triple glazing glass combined with a 2.8-inch thick layer of polyurethane foam insulation, resulting in a remarkable R-value of 8.3. This high level of thermal insulation helps to minimize heat loss, maintain comfortable indoor temperatures, and reduce energy consumption throughout the year. Alongside thermal benefits, the door also offers excellent sound insulation, rated at 30dB, effectively reducing external noise infiltration and creating a quieter, more peaceful interior environment.

Attention to detail is evident in every component of the door set. A 0.6-inch high threshold strip is included to form a reliable barrier against drafts and water ingress, further enhancing the door’s insulation properties and durability. The entire door assembly is designed for straightforward installation and long-term reliability, ensuring that it performs flawlessly even in demanding conditions.

In summary, the LIM RAIL 5 Double Aluminum Front Door with Vertical Slats is an exceptional choice for anyone looking to combine modern design with high security and energy efficiency. Its sleek aluminum profiles, advanced FUHR multi-point locking system, superior thermal and acoustic insulation, and customizable hardware options make it a sophisticated and practical entrance solution. Whether installed as a main entrance to a home or commercial building, this door promises lasting value, enhanced curb appeal, and peace of mind.
