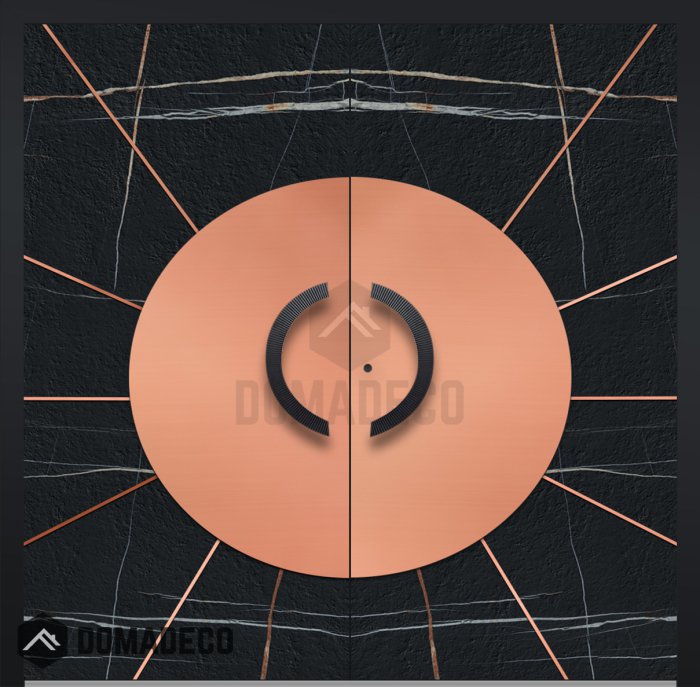

LIM Sahara double - aluminum double door covered with Sahara Noir sintered quartz and copper sheet

SKU
LIM Sahara double
Be the first to review this product
AVAILABLE
$16,380.00

The price includes TAX & shipping

Click here to select the configuration

Doors are manufactured after the order has been placed through the website.
Production time for our doors:
door named LIM (aluminum) - production takes 6 weeks
door named STA (stainless steel) - production takes 4 weeks
door named FARGO (stainless steel) - production takes 7 weeks

Size door with frame:
Width from: 63" to 78.7"
Height from: 78.7" to 96"

The door panels made of sintered quartz. Although quartz sinter does not occur in the natural environment, the technology of obtaining it consists in mixing and pressing, among others, shale clays, quartz sand and granite rocks. The mixture prepared in this way is hardened by firing. Door panels made of sintered quartz have an industrial, urban style, at the same time referring to exclusive and elegant interiors.

Available door colors:
 anthracite, white, black, silver gray, red, blue, yellow, brown, green, walnut, wenge, golden oak, mahogany, custom from RAL palette

Our exterior doors with hinges on the side are hurricane impact rated. (for more details please contact us)

Specification

The multi-point lock FUHR is used for locking. It has many locking and control configurations.
Hinges: the choice of wing or roller hinges and concealed hinges.
Glazing in the door leaf: triple glazing glass
Thickness of polyurethane foam in the leaf: 2.8"
Thermal insulation: R-Value 8.3
Sound insulation: 30dB

The door set includes:

- Aluminum door and the door frame;
- door handle made of stainless steel;
- 3-part roller hinges in the same color as the door;
- Multipoint locking system 855GL : full locking in 7 points, - 2 hooks, - 4 bolts plus upper bolt
- Threshold strip 0.6" height;
- anti-burglary class lock insert with 5 keys.

Full door information

The door is already mounted onto the frame (prehung door), which saves you all the work. The door is completely ready for installation.

The picture showing how to take the measurement. Click here
The installation space between the frame and the wall can be between 0.2" to 0.8" on each side.
Frequently Asked Questions: click here to check

-
+
$16,380.00

The price includes TAX & shipping

Wish List
Email
We found other products you might like!

Profile construction

Technical specifications:

  • The multi-point lock FUHR is used for locking. It has many locking and control configurations.
  • Hinges: the choice of wing or roller hinges (WALA) and concealed hinges (WALA).
  • Glazing in the door leaf: triple glazing glass
  • Thickness of polyurethane foam in the leaf: 70 mm / 2.75"
  • Thermal insulation: Ud = 0.7 W/(m2*K) / R-Value 8.3
  • Sound insulation: 30dB

The door set includes:

  • Aluminium door and the door frame;
  • door handle made of stainless steel;
  • 3-part roller hinges in the same color as the door;
  • Multipoint locking system 855GL : full locking in 7 points, - 2 hooks, - 4 bolts plus upper bolt
  • Threshold strip 15 mm height;
  • Standard lock insert with 5 keys.

Glazing

The glass in our doors are triple-pane windows. All panes are connected with spacer frames. Two of them are covered with Low-E coatings that provide natural light while helping to limit heat gain and thermal energy loss. It is also possible to choose P4 anti-burglary glass or safety glass VSG 33.1

standard glazing package 4th/16Ar/4/16Ar/4th

safety glass 33.1//4//4

P4 anti-burglary

Types of glazing

There is a wide range of glass options. In our offer one will find energy-saving, sound-absorbing, safety, anti-burglary and sunscreen windows. The most popular ones are milk glass, decorative or mirror glass as well as bronze reflex glass.

Light permeability of the glass:

- Milk – frosted glass 89%
- Mirror glass – 68 %
- Graphite reflex glass – 42 %

One way mirror glass has a thin layer of reflective coating which allows the glass to reflect half the light that hits it. Simultaneously, half the light also goes straight through. This makes the glass both reflective and transparent. During the day, the outside is bright which means that people who are outside are not able to see what is inside the house. However, during the night when the light is on, the one-way mirror turns into a window. People are able to see through the glass both ways.

To solve the issue, one can apply the one-way vision foil. The foil consists of hundreds of small holes enabling light penetration, which gives the effect of semi-transmission. It is usually used for advertisement on buses or windows.

Colours

Colours can emphasise the shape of aluminium joinery and provide it with individual character and genuine appearance. All aluminium systems offered are available in two colour palettes – RAL and DECORAL.
RAL Basic colour palette.

Fiery red or maybe a delicate blue? The RAL K5 Classic colour palette will allow you to choose the colour of the door perfectly suited to your requirements!



RAL 1003

RAL 2004

RAL 3020

RAL 5002

RAL 6005

RAL 6021

RAL 7016

RAL 7039

RAL 7040

RAL 9016

RAL 9005

RAL 9007

DECORAL woodgrain finish palette

Aluminium doors can also have more traditional, woodlike finishes such as: beech, sweet cherry, golden oak, winchester, mahogany, walnut, dark oak, pine, cherry, wenge.



Golden Oak

Mahogany

Walnut

Wenge

Beech

Wala Hidden Hinges

We use Wala hidden hinges that combine high durability, numerous assembly advantages and a discreet, elegant form. Hinges are invisible when the door is closed. The 3D adjustment function provides a convenient way of adjusting the pressure, height and side adjustment (left/right) of the door. Hinges allow for trouble-free installation and removal of the door leaf/slab. Depending on the door height there are at least 3 hinges per door leaf/slab.

Roller hinges WR WALA

WR WALA are minimalistic, modern looking, high quality roller hinges. They have been tested and are certified by the German IFT ROSENHEIM. Hinges are protected by patent law and can be adjusted: vertically: -5 to 5mm / -0.2" to 0.2", gap: -2.5 to 2.5 mm / -0.1" to 0.1" , seal pressure: -1.5 to 1.5 mm / -0.05" to 0.05" . When it comes to finish they are available in stainless steel or any colour from the RAL palette (hinges will be painted in the same colour as the door). Depending on the door height there are at least 3 hinges per door leaf/slab.

ALUPROF STYLE handles

ALUPROF handles are made of anodized aluminum with high resistance to corrosion, weather conditions and scratches.
The INOX version is made of matt stainless steel.
Handle with fixed/rotary bearing and return spring mechanism adapted to the pin square 8 mm / 0.3".
The escutcheon/cover plate is 33 mm / 0.14" wide.

T-bar - long vertical handle or normal handle:

Stainless steel door handles are designed for one or two-sided use for external doors.
The innovative mounting system enables quick and easy installation of the door handle. Our offer includes many handrails:




Q10
T-bar with a square section of 40×40 mm / 1.6"x1.6".
Available in lengths: 1200 / 47.2", 1500 / 59", 1800 mm / 70.9".

Q45
T-bar at an angle of 45 degrees with a square section of 40 × 40 mm / 1.6"x1.6"
Available in lengths: 1200 / 47.2", 1500 / 59", 1800 mm / 70.9".

P10
T-bar with a round cross-section ⌀ 40 mm / 1.6" .
Available in lengths: 1200 / 47.2", 1500 / 59", 1800 mm / 70.9"

P45
T-bar at an angle of 45 degrees with a round cross-section ⌀ 40 mm / 1.6".
Available in lengths: 1200 / 47.2", 1500 / 59", 1800 mm / 70.9".

Z18
Black, designer handle.
Available in length 480 mm / 18.9".

Z20
Black T-bar with an interesting design
Available in length 498 mm / 19.6".

Z32
Black T-bar with an interesting curve that can also be used for all-glass doors
Available in length 499 mm / 19.6".

Z24
Black, oval handle
Width 450 mm/ 17.7"

Z52
T-bar round z52 copper
⌀ 198 mm / 7.8"

Z53
T-bar round z53 silvershine
⌀ 198 mm / 7.8"

Z54
T-bar round z54 slivergalaxy
⌀ 198 mm / 7.8"

Recessed
T-bar recessed
Available in lengths: 1200 mm / 47.2" and 1800 mm / 70.9"

Multi-point lock Hook-bolts 855GL type-11

  • steel hooks and pins
  • Three-dimensional locking with integrated hooks and metal pins for optimal security.
  • Pressure adjustment.

Class A insert 6.D.C cylinder with keys

Durability: 100 000 cycles
Security rating: Class 6 the highest
Attack resistance: Class D the highest
Burglar resistance: Class C the highest

Certified, cylindrical, profiled 9-ratchet insert (two rows of latches).
Innovative anti-drill and anti-picking protection.
Inserts resistant to bumping. 5 keys included, key code card.



Write Your Own Review
You're reviewing:LIM Sahara double - aluminum double door covered with Sahara Noir sintered quartz and copper sheet
Your Rating

The LIM Sahara Double aluminium double door is a stunning fusion of cutting-edge engineering and sophisticated design, crafted to elevate the entrance of any residential or commercial space. Featuring a robust aluminium framework, this double door is exquisitely covered with luxurious Sahara Noir sintered quartz and accented with elegant copper sheet cladding. This harmonious blend of materials not only delivers exceptional durability and security but also creates a breathtaking visual statement that embodies modern elegance and timeless appeal.

At its core, the LIM Sahara Double door boasts a high-strength aluminium construction that ensures superior stability, lightweight handling, and remarkable resistance to corrosion, weathering, and daily wear. The double hinged design offers smooth, reliable operation for two adjoining panels, providing a grand and welcoming entrance with effortless functionality. Precision-engineered hinges and locking mechanisms enhance security while maintaining ease of use, making the door an ideal choice for spaces where both aesthetics and performance are paramount.

The defining feature of the LIM Sahara Double door is its sophisticated exterior finish. The Sahara Noir sintered quartz cladding presents a deep, rich black surface characterized by subtle veining and a refined matte texture reminiscent of natural stone. Celebrated for its outstanding hardness, scratch resistance, and low porosity, sintered quartz ensures the door’s surface remains pristine and vibrant over time, even under exposure to harsh weather conditions and frequent handling. Furthermore, its UV stability prevents fading, preserving the door’s luxurious appearance for years to come.

Complementing the dark quartz is the warm, radiant copper sheet overlay, which adds an element of refined luxury and visual warmth. The copper’s natural metallic sheen creates a striking contrast against the matte black quartz, enhancing the door’s architectural presence. Over time, the copper develops a unique patina, enriching the door’s character with ever-evolving hues and textures that reflect the passage of time and environmental influences. This dynamic interplay between the cool, contemporary quartz and the organic, glowing copper results in a truly captivating entrance solution that suits a variety of architectural styles—from sleek modern residences to sophisticated commercial buildings.

Designed with versatility and customization in mind, the LIM Sahara Double door can be tailored to specific project requirements, including various dimensions, hardware finishes, and opening configurations. This flexibility ensures seamless integration into diverse architectural environments while meeting functional needs such as enhanced thermal insulation, soundproofing, and weather resistance. Integrated seals and precision craftsmanship further contribute to the door’s energy efficiency and comfort.

Sustainability is a cornerstone of the LIM Sahara Double door’s design philosophy. The recyclable nature of aluminium combined with responsibly sourced sintered quartz and copper materials reflects a commitment to environmentally conscious manufacturing. This eco-friendly approach ensures that the door not only excels in performance and aesthetics but also aligns with contemporary green building standards, contributing to a more sustainable future.

In summary, the LIM Sahara Double aluminium double door covered with Sahara Noir sintered quartz and copper sheet is a masterpiece of modern architectural design. It seamlessly merges durable materials, innovative craftsmanship, and luxurious finishes to create a grand entrance that is as resilient as it is visually stunning. For those seeking to make a powerful, elegant statement while benefiting from superior functionality and sustainability, the LIM Sahara Double door stands as the ultimate choice in premium double door solutions.
