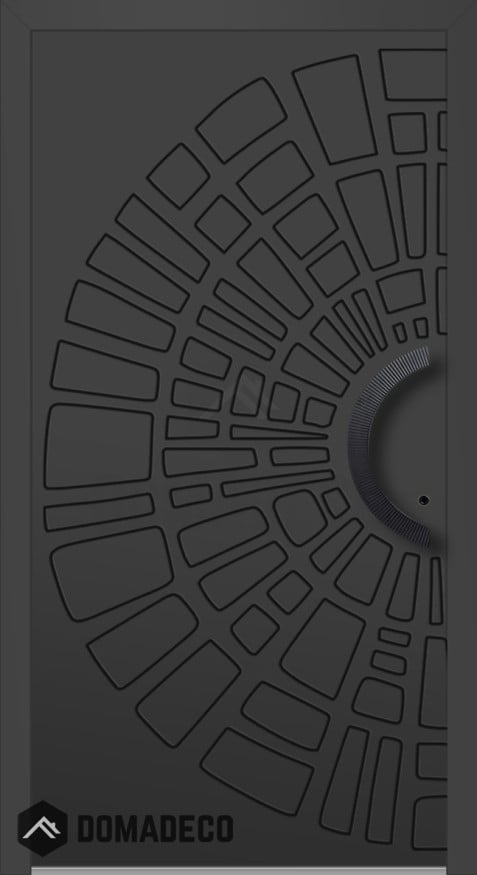

LIM V64 - aluminum entry front door with milled pattern

SKU
LIM V64
AVAILABLE
$6,250.00

The price includes TAX & shipping

Click here to select the configuration

Doors are manufactured after the order has been placed through the website.
Production time for our doors:
door named LIM (aluminum) - production takes 6 weeks
door named STA (stainless steel) - production takes 4 weeks
door named FARGO (stainless steel) - production takes 7 weeks

Size door with frame:
Width from: 35.4" to 61"
Height from: 78.7" to 112.6"

Available door colors:
anthracite, white, black, silver gray, red, blue, yellow, brown, green, walnut, wenge, golden oak, mahogany, custom from RAL palette

Our exterior doors with hinges on the side are hurricane impact rated. (for more details please contact us)

You can order this door model in a bigger size. View Pivot V64

The multi-point lock FUHR is used for locking. It has many locking and control configurations.
Hinges: the choice of wing or roller hinges and concealed hinges.
Glazing in the door leaf: triple glazing glass
Thickness of polyurethane foam in the leaf: 2.7"
Thermal insulation: R-Value 8.3
Sound insulation: 30dB

The door set includes:

- Aluminum door and the door frame;
- door handle made of stainless steel;
- 3-part roller hinges in the same color as the door;
- Multipoint locking system 855GL : full locking in 7 points, - 2 hooks, - 4 bolts plus upper bolt
- Threshold strip 0.6" height;
- anti-burglary class lock insert with 5 keys.

Full door information

The door is already mounted onto the frame (prehung door), which saves you all the work. The door is completely ready for installation.

The picture showing how to take the measurement. Click here
The installation space between the frame and the wall can be between 0.2" to 0.8" on each side.

Frequently Asked Questions: click here to check

-
+
$6,250.00

The price includes TAX & shipping

We found other products you might like!

Profile construction

Technical specifications:

  • The multi-point lock FUHR is used for locking. It has many locking and control configurations.
  • Hinges: the choice of wing or roller hinges (WALA) and concealed hinges (WALA).
  • Glazing in the door leaf: triple glazing glass
  • Thickness of polyurethane foam in the leaf: 70 mm / 2.75"
  • Thermal insulation: Ud = 0.7 W/(m2*K) / R-Value 8.3
  • Sound insulation: 30dB

The door set includes:

  • Aluminium door and the door frame;
  • door handle made of stainless steel;
  • 3-part roller hinges in the same color as the door;
  • Multipoint locking system 855GL : full locking in 7 points, - 2 hooks, - 4 bolts plus upper bolt
  • Threshold strip 15 mm height;
  • Standard lock insert with 5 keys.

Glazing

The glass in our doors are triple-pane windows. All panes are connected with spacer frames. Two of them are covered with Low-E coatings that provide natural light while helping to limit heat gain and thermal energy loss. It is also possible to choose P4 anti-burglary glass or safety glass VSG 33.1

standard glazing package 4th/16Ar/4/16Ar/4th

safety glass 33.1//4//4

P4 anti-burglary

Types of glazing

There is a wide range of glass options. In our offer one will find energy-saving, sound-absorbing, safety, anti-burglary and sunscreen windows. The most popular ones are milk glass, decorative or mirror glass as well as bronze reflex glass.

Light permeability of the glass:

- Milk – frosted glass 89%
- Mirror glass – 68 %
- Graphite reflex glass – 42 %

One way mirror glass has a thin layer of reflective coating which allows the glass to reflect half the light that hits it. Simultaneously, half the light also goes straight through. This makes the glass both reflective and transparent. During the day, the outside is bright which means that people who are outside are not able to see what is inside the house. However, during the night when the light is on, the one-way mirror turns into a window. People are able to see through the glass both ways.

To solve the issue, one can apply the one-way vision foil. The foil consists of hundreds of small holes enabling light penetration, which gives the effect of semi-transmission. It is usually used for advertisement on buses or windows.

Colours

Colours can emphasise the shape of aluminium joinery and provide it with individual character and genuine appearance. All aluminium systems offered are available in two colour palettes – RAL and DECORAL.
RAL Basic colour palette.

Fiery red or maybe a delicate blue? The RAL K5 Classic colour palette will allow you to choose the colour of the door perfectly suited to your requirements!



RAL 1003

RAL 2004

RAL 3020

RAL 5002

RAL 6005

RAL 6021

RAL 7016

RAL 7039

RAL 7040

RAL 9016

RAL 9005

RAL 9007

DECORAL woodgrain finish palette

Aluminium doors can also have more traditional, woodlike finishes such as: beech, sweet cherry, golden oak, winchester, mahogany, walnut, dark oak, pine, cherry, wenge.



Golden Oak

Mahogany

Walnut

Wenge

Beech

Wala Hidden Hinges

We use Wala hidden hinges that combine high durability, numerous assembly advantages and a discreet, elegant form. Hinges are invisible when the door is closed. The 3D adjustment function provides a convenient way of adjusting the pressure, height and side adjustment (left/right) of the door. Hinges allow for trouble-free installation and removal of the door leaf/slab. Depending on the door height there are at least 3 hinges per door leaf/slab.

Roller hinges WR WALA

WR WALA are minimalistic, modern looking, high quality roller hinges. They have been tested and are certified by the German IFT ROSENHEIM. Hinges are protected by patent law and can be adjusted: vertically: -5 to 5mm / -0.2" to 0.2", gap: -2.5 to 2.5 mm / -0.1" to 0.1" , seal pressure: -1.5 to 1.5 mm / -0.05" to 0.05" . When it comes to finish they are available in stainless steel or any colour from the RAL palette (hinges will be painted in the same colour as the door). Depending on the door height there are at least 3 hinges per door leaf/slab.

ALUPROF STYLE handles

ALUPROF handles are made of anodized aluminum with high resistance to corrosion, weather conditions and scratches.
The INOX version is made of matt stainless steel.
Handle with fixed/rotary bearing and return spring mechanism adapted to the pin square 8 mm / 0.3".
The escutcheon/cover plate is 33 mm / 0.14" wide.

T-bar - long vertical handle or normal handle:

Stainless steel door handles are designed for one or two-sided use for external doors.
The innovative mounting system enables quick and easy installation of the door handle. Our offer includes many handrails:




Q10
T-bar with a square section of 40×40 mm / 1.6"x1.6".
Available in lengths: 1200 / 47.2", 1500 / 59", 1800 mm / 70.9".

Q45
T-bar at an angle of 45 degrees with a square section of 40 × 40 mm / 1.6"x1.6"
Available in lengths: 1200 / 47.2", 1500 / 59", 1800 mm / 70.9".

P10
T-bar with a round cross-section ⌀ 40 mm / 1.6" .
Available in lengths: 1200 / 47.2", 1500 / 59", 1800 mm / 70.9"

P45
T-bar at an angle of 45 degrees with a round cross-section ⌀ 40 mm / 1.6".
Available in lengths: 1200 / 47.2", 1500 / 59", 1800 mm / 70.9".

Z18
Black, designer handle.
Available in length 480 mm / 18.9".

Z20
Black T-bar with an interesting design
Available in length 498 mm / 19.6".

Z32
Black T-bar with an interesting curve that can also be used for all-glass doors
Available in length 499 mm / 19.6".

Z24
Black, oval handle
Width 450 mm/ 17.7"

Z52
T-bar round z52 copper
⌀ 198 mm / 7.8"

Z53
T-bar round z53 silvershine
⌀ 198 mm / 7.8"

Z54
T-bar round z54 slivergalaxy
⌀ 198 mm / 7.8"

Recessed
T-bar recessed
Available in lengths: 1200 mm / 47.2" and 1800 mm / 70.9"

Multi-point lock Hook-bolts 855GL type-11

  • steel hooks and pins
  • Three-dimensional locking with integrated hooks and metal pins for optimal security.
  • Pressure adjustment.

Class A insert 6.D.C cylinder with keys

Durability: 100 000 cycles
Security rating: Class 6 the highest
Attack resistance: Class D the highest
Burglar resistance: Class C the highest

Certified, cylindrical, profiled 9-ratchet insert (two rows of latches).
Innovative anti-drill and anti-picking protection.
Inserts resistant to bumping. 5 keys included, key code card.



Write Your Own Review
You're reviewing:LIM V64 - aluminum entry front door with milled pattern
Your Rating

The LIM V64 is an aluminum entry front door with a distinctive milled pattern, designed for projects where the entrance should look as refined and architectural as the rest of the building. It combines a clean, contemporary door leaf with a precisely machined three-dimensional surface, giving you a front door that feels robust, modern, and unmistakably premium from the very first glance.

Visually, the LIM V64 stands out through its calm, monolithic appearance and sculpted detail. The door panel is formed from high-quality aluminum and then enhanced with a milled pattern cut directly into the metal surface. This is not a printed motif or glued-on trim: the design is carved into the aluminum itself, creating real depth and a texture you can see and touch. The grooves and lines catch natural and artificial light throughout the day, creating subtle shadows and highlights that make the door appear to change as the light moves. Depending on the chosen pattern, the overall look can be refined and minimal, strong and geometric, or quietly bold – always with a clear architectural character.

The core of the LIM V64 is its advanced aluminum construction. Aluminum is inherently stable and resistant to warping, swelling, cracking, or twisting. Unlike traditional timber doors, it does not react dramatically to changes in temperature or humidity, which is particularly important for an exposed front entrance. This dimensional stability ensures that the door continues to open and close smoothly, maintains tight gaps and correct alignment, and keeps its premium feel year after year. Even in taller or wider formats, the door remains rigid, safe, and easy to operate.

The milled surface of the LIM V64 is created using high-precision machining technology. Each groove is sharp and consistent, giving the door an engineered, tailored look that immediately communicates quality. Once the pattern has been milled, the door is finished with a durable powder-coated surface. This high-performance coating bonds to the aluminum, forming a hard, UV-resistant layer that protects it from sun, rain, and mechanical wear. You can choose from a wide palette of contemporary finishes: deep matte black or anthracite for a striking, modern presence; warm greys, taupes, and bronzes for a softer, architectural tone; or bolder and custom colors to coordinate perfectly with your windows, façade cladding, and exterior fixtures. The interplay between the milled relief and the chosen color creates a sophisticated play of light and shadow that makes the entrance look truly bespoke.

Despite its design-driven appearance, the LIM V64 is engineered as a serious entry door in terms of security. Its robust aluminum frame and leaf can be equipped with multi-point locking systems that secure the door at several points into the frame, significantly increasing resistance to forced entry. High-security cylinders, reinforced keeps, solid hinges, and security bolts can all be specified to match your expectations for safety. The rigidity of the aluminum panel and frame means that, when locked, the door feels solid, dependable, and reassuring – exactly what you want at the main entrance to your home.

Thermal performance is another key aspect of the LIM V64. Modern aluminum systems are designed with thermal breaks inside the profiles – insulated sections that separate the inner and outer metal layers – in order to reduce heat transfer and avoid cold bridging. Combined with an insulated door core and high-quality perimeter gaskets, this makes the LIM V64 a strong contributor to a comfortable, energy-conscious home. The door helps retain warmth during colder months and reduces overheating and heat gain in warmer weather. Effective seals at the threshold and around the frame limit draughts and help keep out wind-driven rain, dust, and outside noise, so the entrance is not just beautiful but also practical and comfortable.

In everyday use, the LIM V64 is designed to feel smooth, solid, and effortless. High-quality hinges and precisely engineered hardware ensure the door opens and closes with a satisfying, controlled motion. The weight and feel of the leaf communicate quality each time you use it. Threshold options can be configured to balance accessibility with weather tightness, including low thresholds for easier step-free access that still maintain strong sealing performance.

One of the major advantages of the LIM V64 is its low maintenance. Unlike timber doors, which require regular repainting, sanding, or varnishing, the aluminum construction and powder-coated finish are designed to stay attractive with minimal effort. The surface is resistant to peeling and fading; routine cleaning with mild soapy water is usually all that is needed to refresh the appearance. The milled pattern itself is created with clean, logical lines that are easy to wipe down, so the three-dimensional detail does not become a cleaning burden. This makes the LIM V64 a smart, long-term choice for busy households and for anyone who values durability and ease of care.

Design flexibility is built into the LIM V64 concept. The milled pattern can be selected to complement different architectural styles: from understated horizontal or vertical lines that echo façade cladding, to more structured geometric motifs that make the door a focal point in its own right. The door can be produced in various sizes to suit anything from a compact town entrance to a tall, dramatic front door for a modern villa. If desired, it can be combined with fixed glazed side panels or a top light, introducing more natural light into the hallway while allowing the solid, patterned leaf to remain the central visual element.

Hardware selection allows you to refine the final look and function. You can opt for long vertical pull handles that emphasise the height and modernity of the entrance, classic lever handles for simplicity and practicality, or more minimalist handle sets that integrate quietly into the overall design. Hardware finishes such as stainless steel, deep black, or color-matched tones let you align every detail with the door surface and surrounding elements, creating a coherent and polished appearance.

The LIM V64 is ideal for a wide range of residential applications. In contemporary detached houses and villas, it provides a strong, modern entrance that instantly boosts curb appeal and conveys a sense of quality and design focus. In renovated properties, it introduces a crisp, clean front door that contrasts beautifully with traditional materials while still feeling refined and timeless. Its combination of sculptural design and robust performance also makes it an attractive option for smaller commercial or semi-public entrances where a distinctive yet functional door is needed.

In summary, the LIM V64 aluminum entry front door with milled pattern offers a powerful blend of aesthetics, engineering, and everyday practicality. It delivers a clean, contemporary look with a carefully machined three-dimensional surface, backed by the strength, security, thermal comfort, and low maintenance of a high-quality aluminum system. If you want your front door to feel substantial, modern, and meticulously thought out – and to keep making that impression year after year – the LIM V64 is a compelling, future-proof choice.
