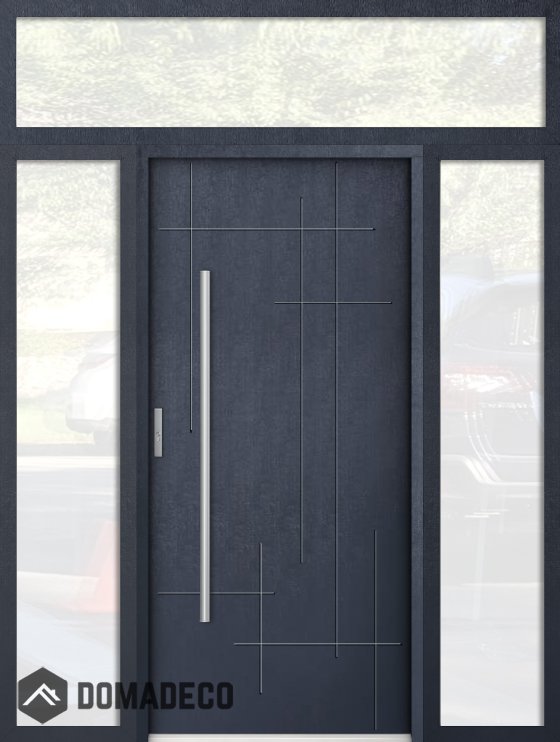

custom configuration - STA steel front door with left, right and top glass panels

SKU
STA door with left right top sidelight
Rating:
85 % of 100
2  Reviews Add Your Review
AVAILABLE
$7,005.00

The price includes TAX & shipping

Click here to select the configuration

Production time for our doors:
door named STA with glass panel  - production takes 7 weeks
door named FARGO (stainless steel) - production takes 8 weeks
door named LIM (aluminum) - production takes 7 weeks

Door width with frame:
36" (32.3" door slab)
37.2" (33.5" door slab)
40" (36.2" door slab)
41.1" (37.4" door slab)
45.1" (41.3" door slab)

Door height with frame:
82.3"

Glass panels width with frame:
from 7.9" to 19.7"

Top glass panel height with frame:
from 7.9" to 19.7"

Available door colors:
anthracite, white, black, silver gray, red, blue, golden oak, walnut, wenge, bleached oak, concrete, turners oak, corten, mahogany

Our exterior doors with hinges on the side are hurricane impact rated. (for more details please contact us)

Full door information

LIST OF STA DOOR TYPES

-
+
$7,005.00

The price includes TAX & shipping

Wish List
Email
We found other products you might like!

Profile construction


Construction:

The door is made of stainless steel. Inside it is filled with PUR polyurethane foam and wood. The thickness of the door leaf is 73 mm / 2.9". Dual sealing system - one seal is in the dap of the frame and the other is located in the supporting part of the door leaf. They reduce vibration and protect your house from losing the heat. They don't change their volume under the influence of atmospheric conditions. The door frame has anti-burglar reinforcements in hinge parts and locking points.
  • frame depth: 43 mm / 1.7"
  • leaf/slab depth: 73 mm / 2.9"

The door set includes:

  • - Door and the door frame with two gaskets;
  • - ROTO locking system (strip lock) with an independent upper lock and three reinforced anti-theft bolts;
  • - Two sets of inserts with the keys;
  • - Normal door handle (T-bar long handle as an additional option);
  • - Viewfinder (in the case of solid doors);
  • - 3x adjustable hinges that provide anti-burglary protection;
  • - Aluminium threshold with the gasket;
  • - 3x anti-theft bolts.

Thermal and soundproof specification:

  • - for a full door leaf, at Ud = 0,85 W/K*m2 / R-Value = 7.1
  • - for glazed door leaf , at Ud = 1,1 W/K*m2 / R-Value = 5,7
  • - acoustic insulation 25 dB (applies to doors without glazing)
  • - glass doors are made of triple glazing packages.

Dimensions and real pictures of the door threshold from the Sta collection


Glazing

The glass in our doors are triple-pane windows. All panes are connected with spacer frames. Two of them are covered with Low-E coatings that provide natural light while helping to limit heat gain and thermal energy loss. It is also possible to choose P4 anti-burglary glass or safety glass VSG 33.1

standard glazing package 4th/16Ar/4/16Ar/4th

safety glass 33.1//4//4

P4 anti-burglary

Types of glazing

There is a wide range of glass options. In our offer one will find energy-saving, sound-absorbing, safety, anti-burglary and sunscreen windows. The most popular ones are milk glass, decorative or mirror glass as well as bronze reflex glass.

Light permeability of the glass:

- Milk – frosted glass 89%
- Mirror glass – 68 %
- Bronze Reflex glass – 42 %

One way mirror glass has a thin layer of reflective coating which allows the glass to reflect half the light that hits it. Simultaneously, half the light also goes straight through. This makes the glass both reflective and transparent. During the day, the outside is bright which means that people who are outside are not able to see what is inside the house. However, during the night when the light is on, the one-way mirror turns into a window. People are able to see through the glass both ways.

To solve the issue, one can apply the one-way vision foil. The foil consists of hundreds of small holes enabling light penetration, which gives the effect of semi-transmission. It is usually used for advertisement on buses or windows.

Colours



Golden Oak

Winchester

Walnut

Wenge

turners oak

Black

smooth anthracite RAL 7015

dark anthracite RAL 7016

white

abbys blue

calm salvia

july blue

twilight green

marble red

Door handle inox - silver

Door handle black

T-bar - long vertical handle or normal handle:

Stainless steel door handles are designed for one or two-sided use for external doors.
The innovative mounting system enables quick and easy installation of the door handle. Our offer includes many handrails:




T-bar Straight, circular shape 1200 mm / 47.2"

T-bar Straight, rectangular shape 1600 mm / 59.0"

YES, round arch silver 1200 mm / 47.2"

Lever Handle vs T-bar Pull Handle

1. If you have a Lever handle/normal handle from the outside, you can release the latch without using a key from outside. You simply push the Lever handle down and the latch will retract allowing you to open the door.

2. If you have a T-bar long handle from the outside, it has no way to release the latch because it is only used for pushing and pulling the door. So in this situation from the outside you always need keys to re.lease the latch. Then insert the keys into the key hole and turn to release the latch and open the door.

3. We offer a third additional option if the customer decides to purchase a T-bar. When selecting the T-bar on our website, you can additionally order a Knob Handle that will be installed together with the T-bar from the outside. This door Knob Handle will allow you to release the latch from the outside. So you can order Tbar + Knob which is quite small and looks quite nice.

Multi-point lock system

  • steel hooks and pins
  • Three-dimensional locking with integrated hooks and metal pins for optimal security.
  • Pressure adjustment.

How measure the hole in the wall for door installation

The picture shows the dimensions of the door with the frame and how to measure the opening for door installation. Please take the measure from the floor "tile or wooden panel" inside the house to the top brick level.

The space for the door installation should be between minimum 5mm to 20mm larger than the overall size of the door with the frame. This space is necessary as it should be filled with foam during the installation. This will also ensure insulation between the wall and the door frame.

Write Your Own Review
You're reviewing:custom configuration - STA steel front door with left, right and top glass panels
Your Rating

The STA Steel Front Door with Left, Right, and Top Glass Panels is an exceptional entryway solution that masterfully blends security, durability, and refined aesthetic appeal to transform the entrance of any residential or commercial property. Constructed from premium-grade steel, this door offers unparalleled strength and resilience, providing robust protection against weather elements, forced entry, and everyday wear and tear. Its sturdy build promises long-lasting performance, making it a dependable choice for those seeking both safety and style in a front door.

One of the most striking features of this STA steel front door is the inclusion of three glass panels positioned on the left and right sides as well as above the door, commonly referred to as sidelights and a transom window. These glass panels are designed to flood the entryway with natural light, creating a bright, inviting interior space while enhancing the overall curb appeal of the property. Each glass panel is carefully framed with matching steel to maintain the door’s structural integrity and visual coherence.

The left and right sidelights provide symmetrical vertical accents flanking the door, contributing to a balanced and elegant appearance. These panels allow for a generous amount of daylight to enter the foyer, reducing the need for artificial lighting and fostering a warm, welcoming atmosphere. The top glass panel or transom adds a horizontal element that draws the eye upward, lending an impression of height and spaciousness to the entrance. Together, these three glass panels create a harmonious architectural statement that elevates the look and feel of any building exterior.

Customization options for the glass are extensive, including clear, frosted, tinted, or decorative designs, allowing property owners to tailor the door to their privacy requirements and stylistic preferences. The glass used is tempered or laminated safety glass, ensuring durability and security without compromising on transparency or style.

The steel door itself is finished with a high-quality, weather-resistant coating that protects against rust, corrosion, and fading, enabling it to withstand various climatic conditions while maintaining its sleek appearance. The door frame is engineered to provide an airtight seal around both the steel door and the surrounding glass panels, enhancing energy efficiency by minimizing drafts and heat loss. This thoughtful design contributes to improved indoor comfort and reduced energy costs throughout the year.

Security is a paramount consideration in the design of the STA Steel Front Door with Left, Right, and Top Glass Panels. It is equipped with heavy-duty hinges, reinforced frames, and advanced multi-point locking systems to offer superior defense against break-ins. The hardware complements the door’s contemporary aesthetic and is available in a variety of finishes to seamlessly blend with the overall design.

Installation is straightforward thanks to precise manufacturing and adaptable design features, making this door an excellent choice for a wide range of architectural styles—from traditional to ultra-modern. Whether installed in a private residence, office building, or commercial property, this door delivers a perfect balance of form and function.

In summary, the STA Steel Front Door with Left, Right, and Top Glass Panels offers a sophisticated, secure, and light-filled entryway that enhances both the exterior beauty and interior ambiance of any property. Its combination of robust steel construction with thoughtfully placed glass panels creates a welcoming, elegant, and durable entrance solution that stands the test of time and elevates the overall curb appeal and value of your building.
