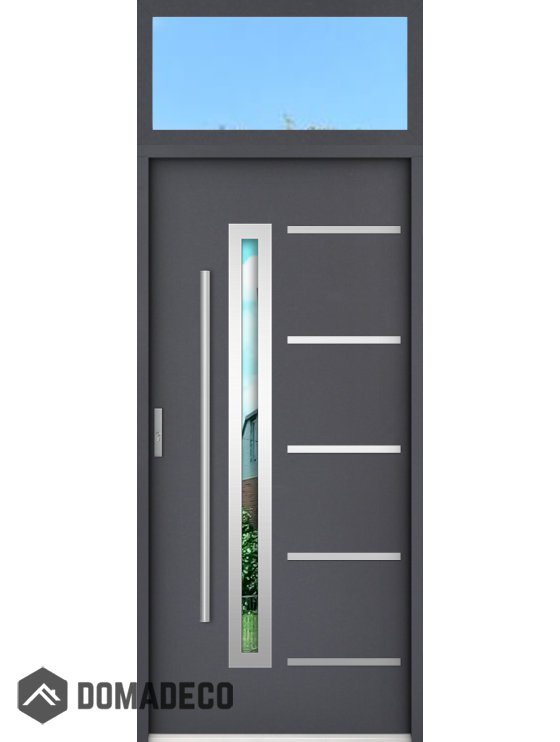

custom configuration - STA door with top sidelight (view from the outside)
Size:
37.2"x90.2" total size with frame (33.5" door + 7.9" sidelight)
37.2"x92.2" total size with frame (33.5" door + 9.8" sidelight)
37.2"x94.1" total size with frame (33.5" door + 11.8" sidelight)
37.2"x96.1" total size with frame (33.5" door + 13.8" sidelight)
37.2"x98.1" total size with frame (33.5" door + 15.7" sidelight)
41.1"x90.2" total size with frame (37.4" door + 7.9" sidelight)
41.1"x92.2" total size with frame (37.4" door + 9.8" sidelight)
41.1"x94.1" total size with frame (37.4" door + 11.8" sidelight)
41.1"x96.1" total size with frame (37.4" door + 13.8" sidelight)
41.1"x98.1" total size with frame (37.4" door + 15.7" sidelight)
45.1"x90.2" total size with frame (41.3" door + 7.9" sidelight)
45.1"x92.2" total size with frame (41.3" door + 9.8" sidelight)
45.1"x94.1" total size with frame (41.3" door + 11.8" sidelight)
45.1"x96.1" total size with frame (41.3" door + 13.8" sidelight)
45.1"x98.1" total size with frame (41.3" door + 15.7" sidelight)
Colour: winchester, golden oak, walnut, wenge, dark anthracite, white
Opening way: Right hand (RH) - opening to inside, Left hand (LH) - opening to inside, Right hand reverse (RHR) - opening to outside, Left hand reverse (LHR) - opening to outside
T-bar (long vertical handle): YES, NO
Electronic Opener T-bar (button + electric strike + power supply): only Straight T-bar
Construction:
The door is made of stainless steel. Inside it is filled with PUR polyurethane foam and wood. The thickness of the door slab is 28.7". Dual sealing system - one seal is in the dap of the frame and the other is located in the supporting part of the door slab. They reduce vibration and protect your house from losing the heat. They don't change their volume under the influence of atmospheric conditions. The door frame has anti-burglar reinforcements in hinge parts and locking points.
The door set includes:
- Door and the door frame with two gaskets;
- Two independent locks (multi-point locking mechanism) providing anti-burglary security solutions;
- Two sets of inserts with the keys;
- Normal door handle (T-bar long handle as an additional option);
- Viewfinder (in the case of solid doors);
- 6x adjustable hinges (3x on each side) that provide anti-burglary protection;
- Aluminum threshold with the gasket;
- 3x anti-theft bolts.
Thermal and soundproof specification:
- R value for a full door slab is R=6.68
- R value for the glazed door slab is R=4.37
- acoustic insulation 25 dB (applies to doors without glazing)
- glass doors are made of triple glazing packages.
The door is already mounted onto the frame (prehung door), which saves you all the work. The door is completely ready for installation.
The picture showing how to take the measurement. Click here
The installation space between the frame and the wall can be up to 0.8 inch.
Frequently Asked Questions: click here to check
