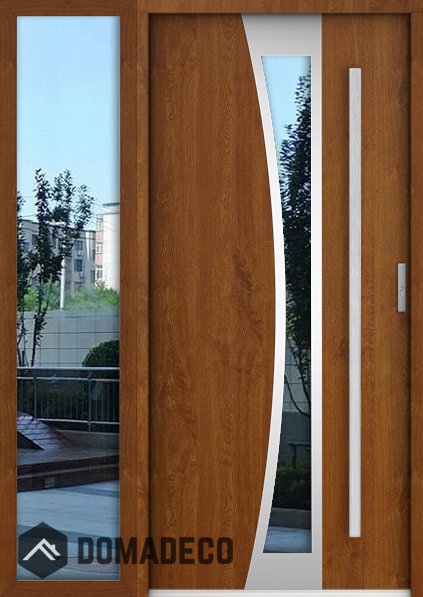

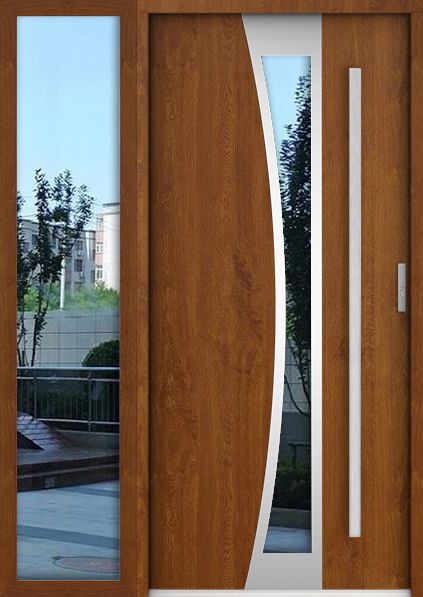

custom configuration - STA steel front door with left sidelight, glass panel (view from the outside)

SKU
STA door with left sidelight
Rating:
90 % of 100
1  Review Add Your Review
AVAILABLE
$4,205.00

The price includes TAX & shipping

Click here to select the configuration

Production time for our doors:
door named STA with glass panel  - production takes 7 weeks
door named FARGO (stainless steel) - production takes 8 weeks
door named LIM (aluminum) - production takes 7 weeks

Door width with frame:
36" (32.3" door slab)
37.2" (33.5" door slab)
40" (36.2" door slab)
41.1" (37.4" door slab)
45.1" (41.3" door slab)

Door height with frame:
from: 78.7" to 82.3"

Glass panel width with frame:
from 7.9" to 19.7"

Available door colors:
anthracite, white, black, silver gray, red, blue, golden oak, walnut, wenge, bleached oak, concrete, turners oak, corten, mahogany

Our exterior doors with hinges on the side are hurricane impact rated. (for more details please contact us)

Full door information

LIST OF STA DOOR TYPES

-
+
$4,205.00

The price includes TAX & shipping

Wish List
Email
We found other products you might like!

Profile construction


Construction:

The door is made of stainless steel. Inside it is filled with PUR polyurethane foam and wood. The thickness of the door leaf is 73 mm / 2.9". Dual sealing system - one seal is in the dap of the frame and the other is located in the supporting part of the door leaf. They reduce vibration and protect your house from losing the heat. They don't change their volume under the influence of atmospheric conditions. The door frame has anti-burglar reinforcements in hinge parts and locking points.
  • frame depth: 43 mm / 1.7"
  • leaf/slab depth: 73 mm / 2.9"

The door set includes:

  • - Door and the door frame with two gaskets;
  • - ROTO locking system (strip lock) with an independent upper lock and three reinforced anti-theft bolts;
  • - Two sets of inserts with the keys;
  • - Normal door handle (T-bar long handle as an additional option);
  • - Viewfinder (in the case of solid doors);
  • - 3x adjustable hinges that provide anti-burglary protection;
  • - Aluminium threshold with the gasket;
  • - 3x anti-theft bolts.

Thermal and soundproof specification:

  • - for a full door leaf, at Ud = 0,85 W/K*m2 / R-Value = 7.1
  • - for glazed door leaf , at Ud = 1,1 W/K*m2 / R-Value = 5,7
  • - acoustic insulation 25 dB (applies to doors without glazing)
  • - glass doors are made of triple glazing packages.

Dimensions and real pictures of the door threshold from the Sta collection


Glazing

The glass in our doors are triple-pane windows. All panes are connected with spacer frames. Two of them are covered with Low-E coatings that provide natural light while helping to limit heat gain and thermal energy loss. It is also possible to choose P4 anti-burglary glass or safety glass VSG 33.1

standard glazing package 4th/16Ar/4/16Ar/4th

safety glass 33.1//4//4

P4 anti-burglary

Types of glazing

There is a wide range of glass options. In our offer one will find energy-saving, sound-absorbing, safety, anti-burglary and sunscreen windows. The most popular ones are milk glass, decorative or mirror glass as well as bronze reflex glass.

Light permeability of the glass:

- Milk – frosted glass 89%
- Mirror glass – 68 %
- Bronze Reflex glass – 42 %

One way mirror glass has a thin layer of reflective coating which allows the glass to reflect half the light that hits it. Simultaneously, half the light also goes straight through. This makes the glass both reflective and transparent. During the day, the outside is bright which means that people who are outside are not able to see what is inside the house. However, during the night when the light is on, the one-way mirror turns into a window. People are able to see through the glass both ways.

To solve the issue, one can apply the one-way vision foil. The foil consists of hundreds of small holes enabling light penetration, which gives the effect of semi-transmission. It is usually used for advertisement on buses or windows.

Colours



Golden Oak

Winchester

Walnut

Wenge

turners oak

Black

smooth anthracite RAL 7015

dark anthracite RAL 7016

white

abbys blue

calm salvia

july blue

twilight green

marble red

Door handle inox - silver

Door handle black

T-bar - long vertical handle or normal handle:

Stainless steel door handles are designed for one or two-sided use for external doors.
The innovative mounting system enables quick and easy installation of the door handle. Our offer includes many handrails:




T-bar Straight, circular shape 1200 mm / 47.2"

T-bar Straight, rectangular shape 1600 mm / 59.0"

YES, round arch silver 1200 mm / 47.2"

Lever Handle vs T-bar Pull Handle

1. If you have a Lever handle/normal handle from the outside, you can release the latch without using a key from outside. You simply push the Lever handle down and the latch will retract allowing you to open the door.

2. If you have a T-bar long handle from the outside, it has no way to release the latch because it is only used for pushing and pulling the door. So in this situation from the outside you always need keys to re.lease the latch. Then insert the keys into the key hole and turn to release the latch and open the door.

3. We offer a third additional option if the customer decides to purchase a T-bar. When selecting the T-bar on our website, you can additionally order a Knob Handle that will be installed together with the T-bar from the outside. This door Knob Handle will allow you to release the latch from the outside. So you can order Tbar + Knob which is quite small and looks quite nice.

Multi-point lock system

  • steel hooks and pins
  • Three-dimensional locking with integrated hooks and metal pins for optimal security.
  • Pressure adjustment.

How measure the hole in the wall for door installation

The picture shows the dimensions of the door with the frame and how to measure the opening for door installation. Please take the measure from the floor "tile or wooden panel" inside the house to the top brick level.

The space for the door installation should be between minimum 5mm to 20mm larger than the overall size of the door with the frame. This space is necessary as it should be filled with foam during the installation. This will also ensure insulation between the wall and the door frame.

Write Your Own Review
You're reviewing:custom configuration - STA steel front door with left sidelight, glass panel (view from the outside)
Your Rating

The Custom Configuration STA Steel Front Door with Left Sidelight and Glass Panel (View from the Outside) is an exceptional entry solution designed to combine strength, style, and functionality into a single, cohesive architectural statement. This custom-configured door system is perfect for homeowners and commercial property managers who demand superior security without compromising on aesthetic appeal or natural light. Engineered with precision, the STA steel front door offers unparalleled durability, while the accompanying left sidelight with an integrated glass panel enhances the entrance's visual impact and invites an abundance of natural light into the interior space.

From the outside, this custom STA steel front door commands attention with its robust construction and sleek, modern design. Crafted from high-quality steel, the door delivers outstanding resistance against forced entry, weather elements, and daily wear and tear. Its solid core structure ensures long-lasting performance, making it an ideal choice for those seeking both safety and longevity. The steel surface can be finished in a variety of textures and colors, allowing for seamless integration with diverse architectural styles, whether contemporary, industrial, or traditional.

The defining feature of this custom configuration is the left sidelight, which features a stunning glass panel thoughtfully positioned to maximize both visibility and light transmission. This glass panel is designed with tempered or laminated safety glass options, providing enhanced security while allowing natural daylight to flood the entrance area. From the exterior perspective, the sidelight adds a sophisticated transparency that balances the door’s solid presence, creating an inviting yet secure entryway. The glass can be customized with frosted, etched, or decorative patterns to maintain privacy without sacrificing style or light flow.

The combination of the STA steel door and the left sidelight is meticulously engineered for optimal performance. The sidelight frame is constructed to match the door’s steel framework, ensuring a cohesive and sturdy installation that withstands environmental stress and usage over time. Weatherstripping and thermal breaks are incorporated to improve energy efficiency, preventing drafts and maintaining comfortable indoor temperatures regardless of season.

Security features are a paramount consideration in this custom configuration. The STA steel front door is equipped with advanced locking systems, including multi-point locks and reinforced hinges, to provide maximum protection against unauthorized access. The glass panel in the sidelight is also fortified with security glazing options, making it resistant to impact and breakage to maintain the integrity of the entrance.

In addition to security and durability, this custom STA steel door with left sidelight offers remarkable versatility and personalization. Customers can select from a wide array of finishes, hardware styles, and glass treatments to create a front entryway that reflects their unique taste and complements the overall architectural design of their property. Whether you prefer a minimalist aesthetic or a more ornate appearance, this configuration adapts perfectly to your vision.

Maintenance is straightforward and hassle-free. The steel door’s surface is designed to resist rust, chipping, and fading, requiring only occasional cleaning to preserve its pristine look. The glass panel is easy to maintain and can be treated with coatings to repel dirt and water, ensuring lasting clarity and brilliance.

In summary, the Custom Configuration STA Steel Front Door with Left Sidelight and Glass Panel (View from the Outside) offers a perfect harmony of security, style, and natural light. This thoughtfully designed entrance solution enhances curb appeal, boosts property value, and provides a welcoming yet fortified access point that stands the test of time. Ideal for those who want a durable, elegant, and highly customizable front door system, this configuration elevates any home or business with its impressive craftsmanship and sophisticated design.
