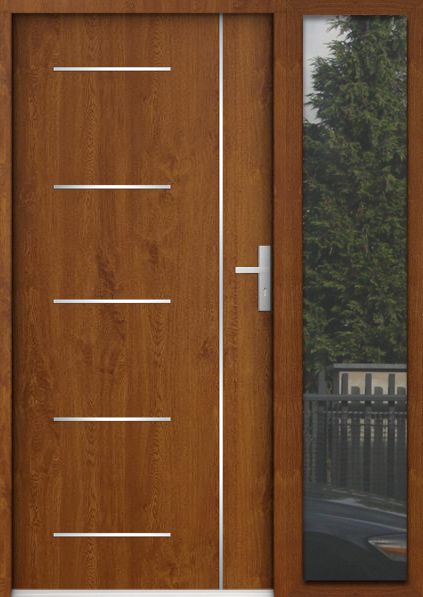

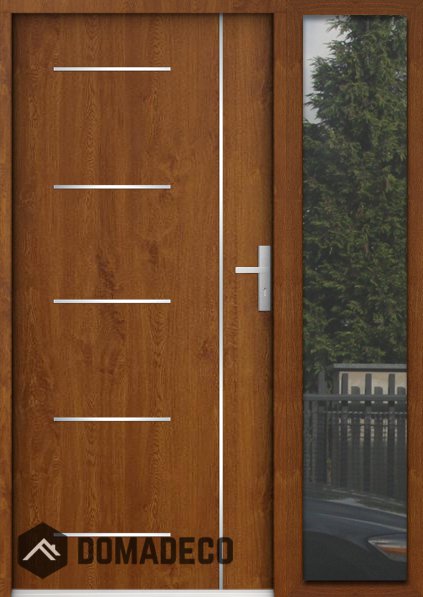

custom configuration - STA steel door with right sidelight / glass panel (view from the outside)

SKU
STA door with right sidelight
Rating:
100 % of 100
1  Review Add Your Review
AVAILABLE
$4,205.00

The price includes TAX & shipping

Click here to select the configuration

Production time for our doors:
door named STA with glass panel  - production takes 7 weeks
door named FARGO (stainless steel) - production takes 8 weeks
door named LIM (aluminum) - production takes 7 weeks

Door width with frame:
36" (32.3" door slab)
37.2" (33.5" door slab)
40" (36.2" door slab)
41.1" (37.4" door slab)
45.1" (41.3" door slab)

Door height with frame:
from: 78.7" to 82.3"

Glass panel width with frame:
from 7.9" to 19.7"

Available door colors:
anthracite, white, black, silver gray, red, blue, golden oak, walnut, wenge, bleached oak, concrete, turners oak, corten, mahogany

Our exterior doors with hinges on the side are hurricane impact rated. (for more details please contact us)

Full door information

LIST OF STA DOOR TYPES

-
+
$4,205.00

The price includes TAX & shipping

Wish List
Email
We found other products you might like!

Profile construction


Construction:

The door is made of stainless steel. Inside it is filled with PUR polyurethane foam and wood. The thickness of the door leaf is 73 mm / 2.9". Dual sealing system - one seal is in the dap of the frame and the other is located in the supporting part of the door leaf. They reduce vibration and protect your house from losing the heat. They don't change their volume under the influence of atmospheric conditions. The door frame has anti-burglar reinforcements in hinge parts and locking points.
  • frame depth: 43 mm / 1.7"
  • leaf/slab depth: 73 mm / 2.9"

The door set includes:

  • - Door and the door frame with two gaskets;
  • - ROTO locking system (strip lock) with an independent upper lock and three reinforced anti-theft bolts;
  • - Two sets of inserts with the keys;
  • - Normal door handle (T-bar long handle as an additional option);
  • - Viewfinder (in the case of solid doors);
  • - 3x adjustable hinges that provide anti-burglary protection;
  • - Aluminium threshold with the gasket;
  • - 3x anti-theft bolts.

Thermal and soundproof specification:

  • - for a full door leaf, at Ud = 0,85 W/K*m2 / R-Value = 7.1
  • - for glazed door leaf , at Ud = 1,1 W/K*m2 / R-Value = 5,7
  • - acoustic insulation 25 dB (applies to doors without glazing)
  • - glass doors are made of triple glazing packages.

Dimensions and real pictures of the door threshold from the Sta collection


Glazing

The glass in our doors are triple-pane windows. All panes are connected with spacer frames. Two of them are covered with Low-E coatings that provide natural light while helping to limit heat gain and thermal energy loss. It is also possible to choose P4 anti-burglary glass or safety glass VSG 33.1

standard glazing package 4th/16Ar/4/16Ar/4th

safety glass 33.1//4//4

P4 anti-burglary

Types of glazing

There is a wide range of glass options. In our offer one will find energy-saving, sound-absorbing, safety, anti-burglary and sunscreen windows. The most popular ones are milk glass, decorative or mirror glass as well as bronze reflex glass.

Light permeability of the glass:

- Milk – frosted glass 89%
- Mirror glass – 68 %
- Bronze Reflex glass – 42 %

One way mirror glass has a thin layer of reflective coating which allows the glass to reflect half the light that hits it. Simultaneously, half the light also goes straight through. This makes the glass both reflective and transparent. During the day, the outside is bright which means that people who are outside are not able to see what is inside the house. However, during the night when the light is on, the one-way mirror turns into a window. People are able to see through the glass both ways.

To solve the issue, one can apply the one-way vision foil. The foil consists of hundreds of small holes enabling light penetration, which gives the effect of semi-transmission. It is usually used for advertisement on buses or windows.

Colours



Golden Oak

Winchester

Walnut

Wenge

turners oak

Black

smooth anthracite RAL 7015

dark anthracite RAL 7016

white

abbys blue

calm salvia

july blue

twilight green

marble red

Door handle inox - silver

Door handle black

T-bar - long vertical handle or normal handle:

Stainless steel door handles are designed for one or two-sided use for external doors.
The innovative mounting system enables quick and easy installation of the door handle. Our offer includes many handrails:




T-bar Straight, circular shape 1200 mm / 47.2"

T-bar Straight, rectangular shape 1600 mm / 59.0"

YES, round arch silver 1200 mm / 47.2"

Lever Handle vs T-bar Pull Handle

1. If you have a Lever handle/normal handle from the outside, you can release the latch without using a key from outside. You simply push the Lever handle down and the latch will retract allowing you to open the door.

2. If you have a T-bar long handle from the outside, it has no way to release the latch because it is only used for pushing and pulling the door. So in this situation from the outside you always need keys to re.lease the latch. Then insert the keys into the key hole and turn to release the latch and open the door.

3. We offer a third additional option if the customer decides to purchase a T-bar. When selecting the T-bar on our website, you can additionally order a Knob Handle that will be installed together with the T-bar from the outside. This door Knob Handle will allow you to release the latch from the outside. So you can order Tbar + Knob which is quite small and looks quite nice.

Multi-point lock system

  • steel hooks and pins
  • Three-dimensional locking with integrated hooks and metal pins for optimal security.
  • Pressure adjustment.

How measure the hole in the wall for door installation

The picture shows the dimensions of the door with the frame and how to measure the opening for door installation. Please take the measure from the floor "tile or wooden panel" inside the house to the top brick level.

The space for the door installation should be between minimum 5mm to 20mm larger than the overall size of the door with the frame. This space is necessary as it should be filled with foam during the installation. This will also ensure insulation between the wall and the door frame.

Write Your Own Review
You're reviewing:custom configuration - STA steel door with right sidelight / glass panel (view from the outside)
Your Rating

The STA Steel Door with Right Sidelight and Glass Panel, viewed from the outside, presents a striking and secure entrance that effortlessly combines modern design with exceptional durability. This thoughtfully engineered entryway solution is designed to make a powerful first impression, showcasing a sleek steel door paired seamlessly with a right-side sidelight featuring a glass panel. Together, they create an inviting yet fortified façade that enhances the curb appeal of any residential or commercial property.

From the exterior perspective, the STA steel door is immediately noticeable for its clean lines, solid construction, and premium finish. Crafted from high-grade steel, the door provides a commanding presence, conveying strength and reliability. The surface is smooth and expertly finished, available in a variety of customizable colors and textures that complement diverse architectural styles—from contemporary minimalist homes to more traditional or industrial exteriors. This adaptability ensures that the door not only serves as a functional security barrier but also as a stylish design element that elevates the overall aesthetic of the building.

Adjacent to the door, the right sidelight with its integrated glass panel adds an elegant touch by introducing visual interest and natural illumination. The glass panel is framed with matching steel, maintaining a cohesive look that blends perfectly with the main door. From the outside, the glass may appear clear, frosted, tinted, or feature decorative patterns, depending on the customization chosen. This allows for a balance between allowing ample daylight to filter into the interior while preserving privacy and enhancing security. The glass itself is made from tempered or laminated safety glass, designed to resist breakage and deter forced entry attempts, ensuring that the sidelight is not only beautiful but also a secure feature of the entryway.

The right sidelight’s vertical orientation and generous size create a welcoming ambiance, subtly drawing the eye and inviting guests inside. Its placement on the right side of the door is ideal for properties where the architectural layout or interior design benefits from additional natural light on that particular side. The combination of solid steel and transparent glass creates a harmonious contrast that enhances the visual depth of the entrance without compromising security.

Additional exterior details further reinforce the quality and security of this door configuration. The frame surrounding both the door and sidelight is robust and precisely engineered to provide a tight seal against weather and potential intruders. Weatherstripping is discreetly integrated, offering protection against drafts and moisture while contributing to the door’s energy efficiency. High-quality hardware, including handles, locks, and hinges, is visible from the outside and can be selected to match the overall style—whether sleek and modern or classic and ornate—adding to the door’s curb appeal.

Overall, the STA Steel Door with Right Sidelight and Glass Panel, as viewed from the outside, is a perfect blend of form and function. It presents a secure, durable barrier while simultaneously enhancing the architectural character of the property. This entrance solution is ideal for those who value both safety and style, offering customizable options that allow each door and sidelight combination to be uniquely tailored to the owner’s vision. Whether welcoming guests to a home or providing a professional façade for a business, this door configuration makes a lasting impression of strength, elegance, and sophistication.
