Size inch:
W 31.6" x H 82" total size with frame (W 27.6" door)
W 34.4" x H 82" total size with frame (W 30.3" door)
W 35.5" x H 82" total size with frame (W 31.5" door)
W 38.3" x H 82" total size with frame (W 34.3" door)
W 39.5" x H 82" total size with frame (W 35.4" door)
W 43.4" x H 82" total size with frame (W 39.4" door) only dark anthracite, golden oak, walnut and white colours
W 31.6" x H 80" total size with frame (W 27.6" door)
W 34.4" x H 80" total size with frame (W 30.3" door)
W 35.5" x H 80" total size with frame (W 31.5" door)
W 38.3" x H 80" total size with frame (W 34.3" door)
W 39.5" x H 80" total size with frame (W 35.43" door)
W 43.4" x H 80" total size with frame (W 39.37" door) only dark anthracite, golden oak, walnut and white colours
Size cm:
803x2080mm total size with frame (70cm door)
873x2080mm total size with frame (77cm door)
903x2080mm total size with frame (80cm door)
973x2080mm total size with frame (87cm door)
1003x2080mm total size with frame (90cm door)
1103x2080mm total size with frame (100cm door) only dark anthracite, golden oak, walnut and white colours
803x2032mm total size with frame (70cm door)
873x2032mm total size with frame (77cm door)
903x2032mm total size with frame (80cm door)
973x2032mm total size with frame (87cm door)
1003x2032mm total size with frame (90cm door)
1103x2032mm total size with frame (100cm door) only dark anthracite, golden oak, walnut and white colours

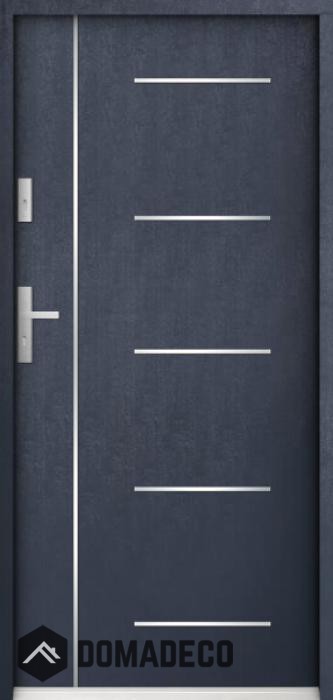

Colour: Winchester, Golden Oak, Walnut, Wenge, Dark Anthracite, Light Anthracite, White, bleached oak, black, concrete
Opening way: Right hand (RH), Left hand (LH), Right hand reverse (RHR), Left hand reverse (LHR)
T-bar (long vertical handle): YES, NO
Letterbox: YES, NO
Construction
The door is made of stainless steel. Inside are filled with foam and wood.
What’s included in price of the door:
- Door and door frame
- Two independent locks (multi-point locking mechanism)
- Two sets of inserts with the keys
- Door handle (T-bar sell separate as an upgrade)
- Viewfinder (in the case of solid doors)
- Mounting kit plates
DESIGN WING
Wing panel’s 2.2" thick building block construction,filled with PUR polyurethane foam. Locking system is made of two locks embedded in special part and head-on pressings of sheathings and protective cassettes fixed to the stile. The combination of all the above elements gives a highly insulated and rigid wing construction.
DOOR FRAME
It it supplied to customers in the folded form which makes installation of doors in the hole much easier and faster. It has anti-burglar reinforcements in hinge parts and locking points. Positioning of the frame in walls using the assembly doweling strips to the wall with dowels Both the strips and the dowels are included in the assembly set that comes with the door.
INSULATION AND SEALING
The wing is filled with PUR polyurethane foam. Dual sealing system.
THERMAL TRANSMITTANCE COEFFICIENT
For full door with 2.2" thick wing, at f Ud = 1.1 W/K*m2
For glazed doors with 2.2" thick wing, at Ud = 1.5 W/K*m2
TIGHTNESS- EPDM SEALS
One in the dap of frame, the other in the supporting part of the wing. They reduce vibration and the loss of heat in the room, they do not lignify, they do not change the volume under the influence of atmospheric conditions.
MULTI-POINT LOCKING SYSTEM
The door is closed with a two multipoint locks entered with cylinder europrofile inserts delivered by one of the leading producer of anti-burglary security solutions.
The locking system is complete with solid anti-unhinge pins located on the hinge side of the wing.
The door is equipped with three 3D hinges with a diameter 15 mm that makes adjustment easy and improve their functionality
They provide additional anti-burglary protection
GLASS UNITS WITH DIFFERENT STRENGTH, TYPES AND PATTERNS
Glass doors are made using certified multi-window packages and warm plastic profiles from renowned producers.
The installation space between the frame and the wall can be up to 4 cm (1.57 inch) in total
