W 47.40" x H 81.85" with frame (W 31.50" door + 11.81" side panel)
W 51.34" x H 81.85" with frame (W 31.50" door + 15.75" side panel)
W 55.28" x H 81.85" with frame (W 35.43" door + 15.75" side panel)
1204x2079mm with frame (80cm door + 30cm side panel)
1304x2079mm with frame (80cm door + 40cm side panel)
1404x2079mm with frame (90cm door + 40cm side panel)

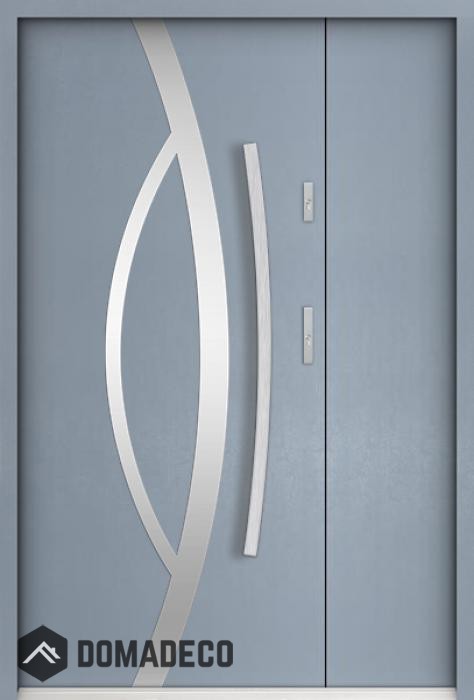

Colour: Winchester, Golden Oak, Walnut, Wenge, Dark Anthracite, Light Anthracite, White, bleached oak, black, concrete
Opening way: Right hand (RH), Left hand (LH), Right hand reverse (RHR), Left hand reverse (LHR)
T-bar (long vertical handle): YES, NO
Letterbox: YES, NO
The door is made of stainless steel. Inside are filled with foam and wood.
What’s included in price of the door:
- Door and door frame
- Two independent locks (multi-point locking mechanism)
- Two sets of inserts with the keys
- Door handle (T-bar sell separate as an upgrade)
- Viewfinder (in the case of solid doors)
- Mounting kit plates
Wing panel’s 2.2" thick building block construction,filled with foamed polystyrene. Locking system is made of two locks embedded in special part and head-on pressings of sheathings and protective cassettes fixed to the stile. The combination of all the above elements gives a highly insulated and rigid wing construction.
It it supplied to customers in the folded form which makes installation of doors in the hole much easier and faster. It has anti-burglar reinforcements in hinge parts and locking points. Positioning of the frame in walls using the assembly doweling strips to the wall with dowels Both the strips and the dowels are included in the assembly set that comes with the door.
INSULATION AND SEALING
The wing is filled with a high quality foamed polystyrene with a lambda & lambda = 0, 04W/m2K. Dual sealing system.
THERMAL TRANSMITTANCE COEFFICIENT
For full door with 2.2" thick wing, at f Ud = 1.2 W/K*m2
For glazed doors with 2.2" thick wing, at Ud = 1.5 W/K*m2
TIGHTNESS- EPDM SEALS
One in the dap of frame, the other in the supporting part of the wing. They reduce vibration and the loss of heat in the room, they do not lignify, they do not change the volume under the influence of atmospheric conditions.
MULTI-POINT LOCKING SYSTEM
The door is closed with a two multipoint locks entered with cylinder europrofile inserts delivered by one of the leading producer of anti-burglary security solutions.
The locking system is complete with solid anti-unhinge pins located on the hinge side of the wing.
3 THREE-PART PIN HINGES
They provide additional anti-burglary protection
GLASS UNITS WITH DIFFERENT STRENGTH, TYPES AND PATTERNS
Glass doors are made using certified multi-window packages and warm plastic profiles from renowned producers.
The installation space between the frame and the wall can be up to 8 cm (3.15 inch) in total
