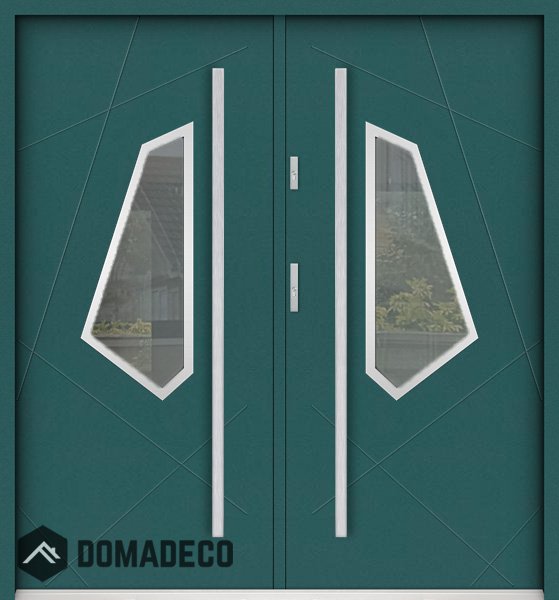

Sta Diaz Double - commercial steel double security door with frame
The price includes TAX & shipping
Doors are manufactured after the order has been placed through the website.
Production time for our doors:
door named STA Double (stainless steel) - production takes 4 weeks
door named FARGO (stainless steel) - production takes 8 weeks
door named LIM (aluminum) - production takes 6 weeks
Size:
59.3" x 82.3" total size with frame (55.2" door leaf)
67.2" x 82.3" total size with frame (63.1" door leaf)
75.0" x 82.3" total size with frame (71" door leaf)
59.3" x80" total size with frame (55.2" door leaf)
67.2" x 80" total size with frame (63.1" door leaf)
75.0" x 80" total size with frame (71" door leaf)
available custom height from 78.7" to 82.3"
available custom width from 59.3" to 75.0"
If you need doors over 82" height please select Fargo and LIM door models
Construction:
The door is made of stainless steel. Inside it is filled with PUR polyurethane foam and wood. The thickness of the door slab is 2.2 inch. Dual sealing system - one seal is in the dap of the frame and the other is located in the supporting part of the door slab. They reduce vibration and protect your house from losing the heat. They don't change their volume under the influence of atmospheric conditions. The door frame has anti-burglar reinforcements in hinge parts and locking points.
The door set includes:
- Door and the door frame with two gaskets;
- ROTO locking system (strip lock) with an independent upper lock and three reinforced anti-theft bolts;
- Two sets of inserts with the keys;
- Normal door handle (T-bar long handle as an additional option);
- Viewfinder (in the case of solid doors);
- 3x adjustable hinges that provide anti-burglary protection;
- Aluminum threshold with the gasket;
- 3x anti-theft bolts.
Thermal and soundproof specification:
- for a full door leaf R-Value 4.8
- for glazed door leaf R-Value 3.8
- acoustic insulation 31 dB (applies to doors without glazing)
- glass doors are made of triple glazing packages.
The door is already mounted onto the frame (prehung door), which saves you all the work. The door is completely ready for installation.
The picture showing how to take the measurement. Click here
The installation space between the frame and the wall can be between 0.2" to 0.8" on each side.
Frequently Asked Questions: click here to check
